Welding machines
CHF104.–
Stahlwerk Welding unit ARC 200 MD IGBT MMA E Hand Inverter Single-Board 200 A
Best Stahlwerk products in the Welding machines category
On this page you'll find a ranking of the best Stahlwerk products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Stahlwerk Welding unit ARC 200 MD IGBT MMA E Hand Inverter Single-Board 200 A
Properties
MMA electrode welding / ARC welding - a universal welding process. An electric arc melts the electrode to form the weld seam. No shielding gas is required and can therefore be used flexibly at any location.
Can be expanded to a DC TIG welding unit with our optionally available WP-17V universal lift TIG torch.
IGBT technology - The latest and most modern transistor technology enables maximum power and duty cycle! No transformer, no MOSFET, state-of-the-art IGBT!
Lightweight & compact design - only 3.2 kg weight and dimensions of 245 x 100 x 160 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carrying!
Highest efficiency & performance - single-phase alternating current (230V) supplies the device and allows an output power of real 200 amps.
Technical data
Output current MMA: 30-200A
Protection class: IP21S
Mains voltage: 1 x 230VAC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 40.3A
Maximum effective mains current (I1eff): 13,3A
Weight: 3.2 kg
Dimensions L x W x H (mm): 245 x 100 x 160
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
IGBT board type: Single board
Scope of delivery
1 x The ARC 200 MD IGBT steelwork welding machine
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x protective cover
1 x wire brush
2. Stahlwerk Welding machine Mini FLUX 120 ST with ARC | MMA function with 120 amps
Note: To avoid damaging the appliance, please note the following: The lock on the wire reel is a bayonet lock. To release it, first press it in against the spring and only then turn it to the left. After inserting the reel, the lock must be pressed in again and then closed to the right.
Note: The appliance is not intended for use in residential areas where the power supply is provided by a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.
Technical data
Model: Stahlwerk Mini FLUX 120 ST cored wire welder
FLUX output current: 20 - 120 A
Output current ARC / MMA: 20 - 100 A
Duty cycle (40°C): 15 % at 120 A / 100 % at 46 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 17.3 A
Maximum effective mains current (I1eff): 6,7 A
Suitable for cored wires: ø 0.6 - ø 1.0 mm
Weight: 4 kg
Dimensions L x W x H: 300 x 165 x 270 mm
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co, Ltd.
Scope of delivery
1 x Stahlwerk Mini FLUX 120 ST cored wire welder
1 x FLUX torch hose package 2 m
1 x earth cable 1.2 m
1 x wire guide roller 0.6 / 0.8/0.9/1.0 mm knurled (pre-assembled)
1 x MIG MAG premium welding wire Flux cored wire E71T-GS ø 0.9 mm 0.45 kg
1 x High-quality wire brush
1 x Slag hammer 300 g
Welding machines
CHF108.–
Stahlwerk Welding machine Mini FLUX 120 ST with ARC | MMA function with 120 amps

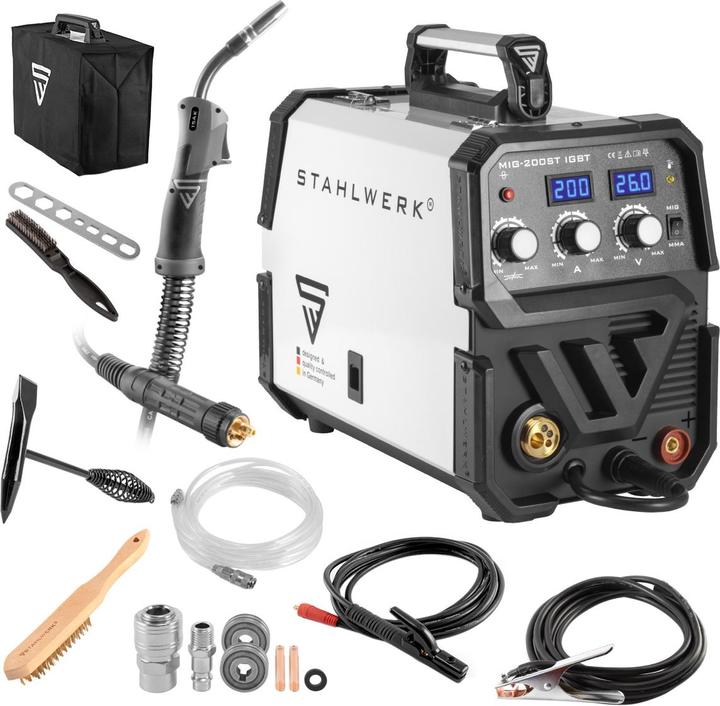

3. Stahlwerk Welding machine MIG MAG 200 ST IGBT shielding gas with 200 amps MMA E-Hand
Properties MIG/MAG: Gas metal arc welding, in which shielding gas or mixed gas is used to protect the seam from oxidation. Flux-cored wire: Flux-cored wire welding is possible with all MIG ST IGBT devices. No shielding gas is required for this special wire. Automatic wire feed: The speed of the wire feed adjusts automatically to the welding current. Voltage: The burn-off of the wire can be set separately.
Technical data:
- Output current MIG/MMA: 40-200 A
- Protection class: IP21S
- Mains voltage: 230 V AC (+-15%) / 1 ~ (single-phase)
- Mains frequency: 50/60 Hz
- Maximum rated current (I1max) MIG/MAG: 34.6 A / 40 A
- Maximum effective mains current (I1eff) MIG/MAG: 10.9 A / 12.6 A
- Weight: 11.8 kg
- Dimensions L x W x H (mm): 450 x 240 x 370
- Mains connection: Schuko type CEE 7/7
- Standards: IEC 60974-1; EN 60974-10 (Class A)
Scope of delivery:
- 1 x STAHLWERK MIG 200 ST IGBT welding machine
- 1 x Professional MIG welding torch AK-15 / 3 meter hose package with Euro central connection
- 1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG/MAG torch):
- 1 x gas nozzle
- 1 x contact tip 0.8mm
- 1 x gas nozzle holder
- 1 x earth cable 3 meters (25 mm²)
- 1 x electrode holder 3 meters (25 mm²)
- 1 x gas connection hose with quick coupling 5 meters
- 1 x connection set for pressure reducer
- 2 x contact tips (0.8 / 1.0 each)
- 1 x installation wrench
- 1 x wire brush
- 3 x wire guide rollers (0.6 mm/0.8 mm, 1.0 mm/1.2 mm, 0.8 mm/1.0 mm is already installed in the device)
- 1 x protective cover.
Welding machines
CHF346.–
Stahlwerk Welding machine MIG MAG 200 ST IGBT shielding gas with 200 amps MMA E-Hand

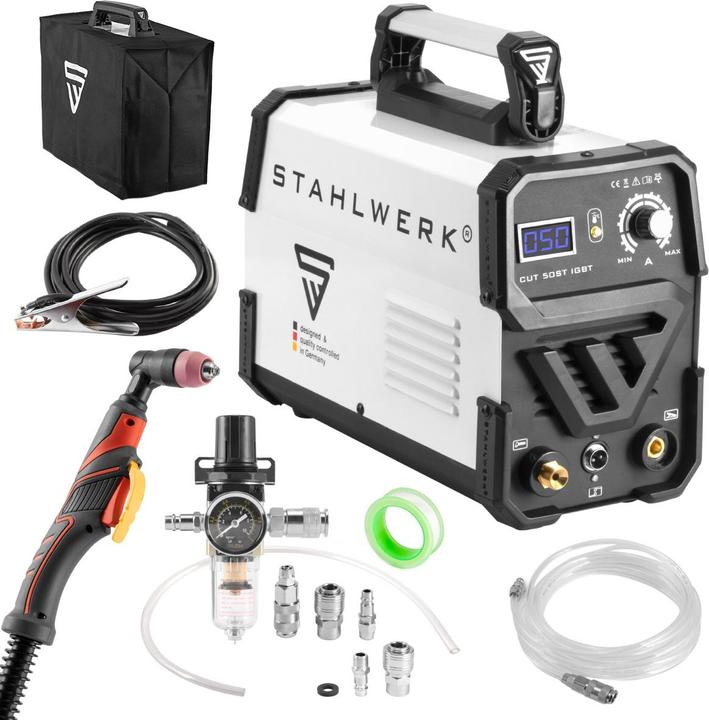

4. Stahlwerk Plasma cutter CUT 50 ST IGBT with 50 amps, up to 14mm cutting capacity
Properties
Plasma: conductive metals e.g. standard steel, copper, stainless steel, brass, aluminium, titanium can be cut without problems
Cutting capacity up to 14 mm (depending on material): mild steel ST37 up to 14mm / V2A or V4A up to 8 mm, - aluminium up to 5 mm
CUT contact: smooth-running HF ignition, one stroke is enough.
IGBT technology Advantages: powerful, good forward behaviour, high reverse voltage and robustness.
Technical Data
Output current: 15-50 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 33 A
Maximum effective mains current (I1eff): 13,1 A
Weight: 7.2 kg
Dimensions L x W x H (mm): 390 x 170 x 275
Mains connection: CEE 7/7 Schuko plug
Air pressure: 3.5 - 4 bar
Air flow: min. 100 L / min
Standards: IEC 60974-1; EN 60974-10 (Class A)
Scope of delivery
1 x The CUT 50 ST steelwork plasma cutter
1 x professional plasma hose package AG-60/SG-55, 3 metres
1 x 3-piece plasma accessory set (this is already pre-assembled on the plasma torch):
1 x plasma nozzle
1 x plasma electrode
1 x ceramic cap
1 x earth cable 3 metres
1 x water separator with pressure gauge and snap-on quick-release couplings
1 x Connecting hose with snap-on quick-release couplings from the appliance to the water separator, incl. 6-piece connection set
1 x Air connection hose with Snap-on quick-release coupling 5m
1 x protective cover
1 x Teflon tape
Welding machines
CHF254.–
Stahlwerk Plasma cutter CUT 50 ST IGBT with 50 amps, up to 14mm cutting capacity

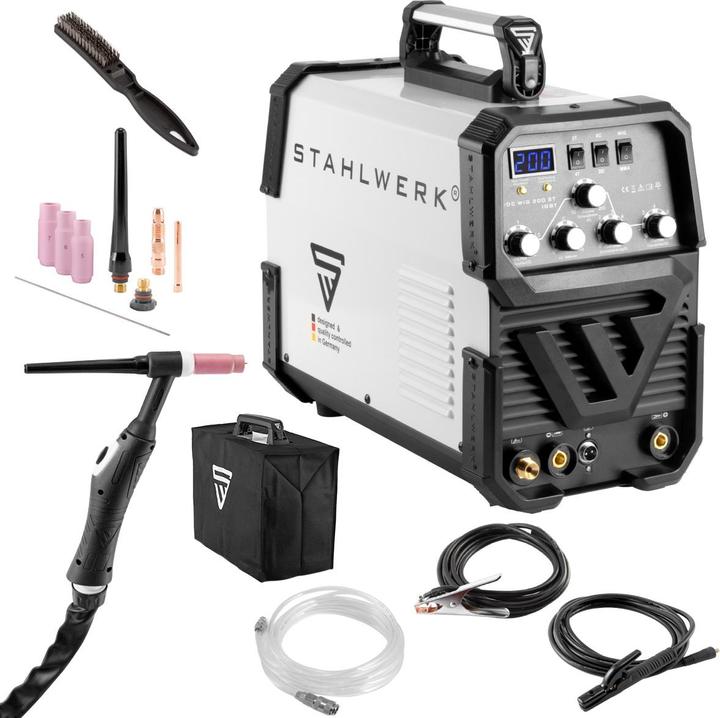

5. Stahlwerk Combination welder AC/DC TIG 200 ST IGBT 200 amps
Properties
AC/DC TIG welding - alternating current (AC) and direct current (DC). Welding of almost all metals, such as steel, stainless steel, aluminium, copper and many more.
2 in 1 combination device - TIG & MMA welding is possible up to 200A.
IGBT technology - The latest and most modern transistor technology enables high performance welding! No transformer, no MOSFET, state-of-the-art IGBT!
Technical data
Output current TIG / MMA: 30-200 A
Protection class: IP21S
Insulation class: F
Mains voltage: 230 V AC (+-15%) / 1 ~ (single-phase)
Mains frequency 50/60 Hz
Maximum mains current (I1max) (TIG / MMA): 27.7 A / 39.7 A
Maximum effective mains current (I1eff) (TIG / MMA): 14.5 A / 13.5 A
Weight: 11.5 kg
Dimensions L x W x H (mm): 455 x 220 x 370
Mains connection: Schuko type CEE 7/7
Standards: IEC 60974-1; EN 60974-10 (Class A)
Scope of delivery
1 x Steelworks AC/DC TIG 200 ST IGBT welding machine
1 x Professional TIG welding torch WP-26F / hose package 3 metres* with flexible torch head and kink protection on the gas connection
1 x TIG TIG accessory set 8 pieces:
3 x gas nozzles sizes: 5, 6, 7
1 x clamping sleeve size 1.6
1 x clamping sleeve housing size 1.6
2 x burner caps - one short and one long
1 x universal tungsten electrode 1.6 mm
* Pre-assembled accessories from the illustration of the welding torch are included in the 8-piece set
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x wire brush
1 x slag hammer
1 x Gas connection hose with quick coupling 5 metres
1 x Snap-on connection set
1 x protective cover

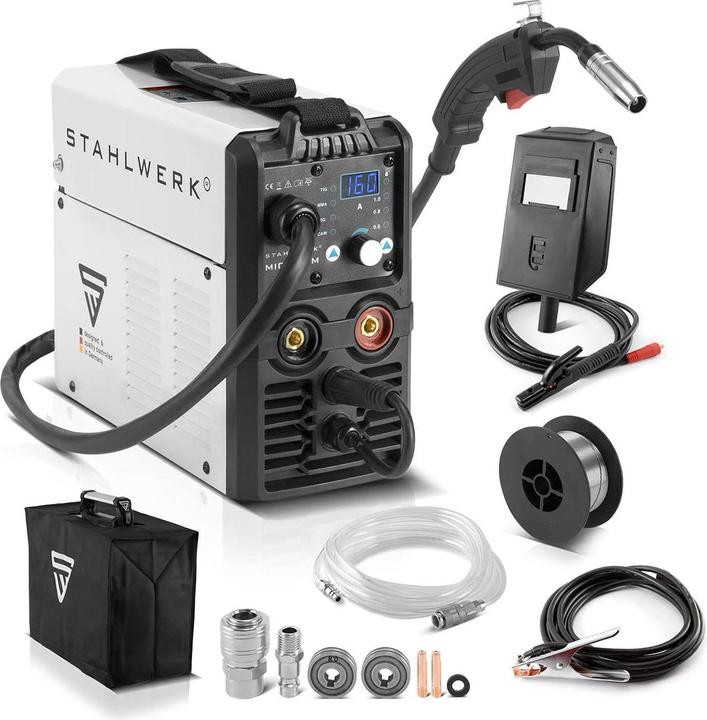

6. Stahlwerk Welding machine MIG MAG 160 M IGBT 5 in 1 combi device with 160 amps
Steelworks MIG MAG 160 M IGBT - 5 in 1 combination welding machine with real 160 amperes
FLUX cored wire suitable, MIG MAG, Lift TIG with MMA E-Hand.
Note: Observe the correct amperage for a perfect welding result: For welding with 0.6 wire
at least 60 amps
Tig | MMA: 40-160 A Protection class: IP21s Mains voltage: 1 x 230 V AC (+-15%) Mains frequency: 50/60 Hz Maximum mains current (I1MAX) MIG/MAG | Tig | MMA: 26.3 A | 19.5 a | 31.5 A Maximum effective mains current (I1eff) Mig/Mag | Tig | MMA: 8.3 a |. 6.2 A | 10 A Weight: 4.5 kg Dimensions L x W x H (mm): 320 x 140 x 260 Mains connection: CEE 7/7 Schuko plug Standards: IEC 60974-1; EN 60974-10 (class A) Scope of delivery 1 x Welding machine Stahlwerk MIG 160 M IGBT 1 x Professional MIG welding torch AK-15 / hose package 2 metres. This is permanently installed on the device 1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG/MAG torch): 1 x gas nozzle 1 x contact tip 0.8 mm 1 x gas nozzle holder 1 x contact tip M6 x 28 - 0.8 mm 1 x contact tipM6 x 28 - 1.0 mm 1 x welding shield 1 x 0.5 kg filler wire reel 0.8 mm 1 x earth cable 3 metres 1 x electrode holder 3 metres 1 x wire brush1 x slag hammer 1 x quick coupling for pressure reducer 1 x gas connection hose with quick coupling 5 metres 1 x wire guide roll 0.6 mm & 0.8 mm (0.8 mm & 1.0 mm is already installed in the device) 1 x protective cover
Welding machines
CHF199.–
Stahlwerk Welding machine MIG MAG 160 M IGBT 5 in 1 combi device with 160 amps

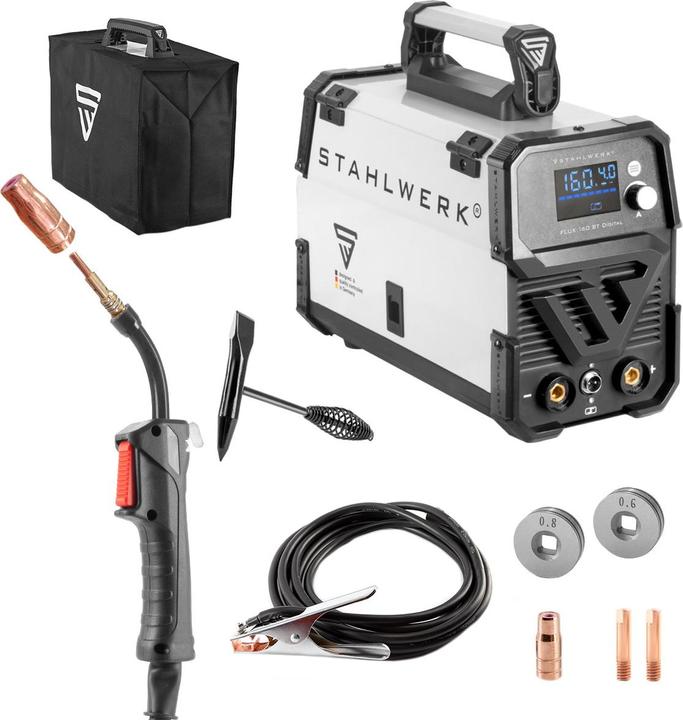

7. Stahlwerk FLUX 160 ST Digital welding machine with 160 A, synergic wire feed
Properties
Flux-cored wire welding (FLUX) - welding without shielding gas. Welding with flux-cored wire is based on a similar process to MIG MAG welding, with the difference that no shielding gas needs to be supplied in this process.
Note: The device is not intended for use in residential areas where power is supplied via a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.
Technical data
Model: Stahlwerk FLUX 160 ST digital welder
Output current: 40 - 160 A
Duty cycle (40°C): 10 % at 160 A / 100 % at 50.6 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Weight: 5.9 kg
Dimensions L x W x H (mm): 375 x 175 x 290
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: TüV Rheinland LGA Products GmbH
Scope of delivery
1 x Stahlwerk FLUX 160 ST digital welding machine
1 x Stahlwerk FLUX AK14 / MB14 welding torch for wire thicknesses from 0.8 to 1.0 mm, 9 mm connecting mandrel with wire feed-through, 2-pin connection for switching operations
1 x earth cable 3 m (Ø 16 mm²)
1 x nozzle holder (pre-assembled on burner)
1 x contact tip 0.8 (pre-assembled on burner)
2 x contact tips 0.9
2 x filler wire nozzles
2 x wire guide rollers 0.6 mm / 0.8 mm, 0.8 mm / 1.0 mm (already installed in the device) - all guide rollers are knurled
1 x slag hammer
1 x protective cover
Welding machines
CHF208.–
Stahlwerk FLUX 160 ST Digital welding machine with 160 A, synergic wire feed

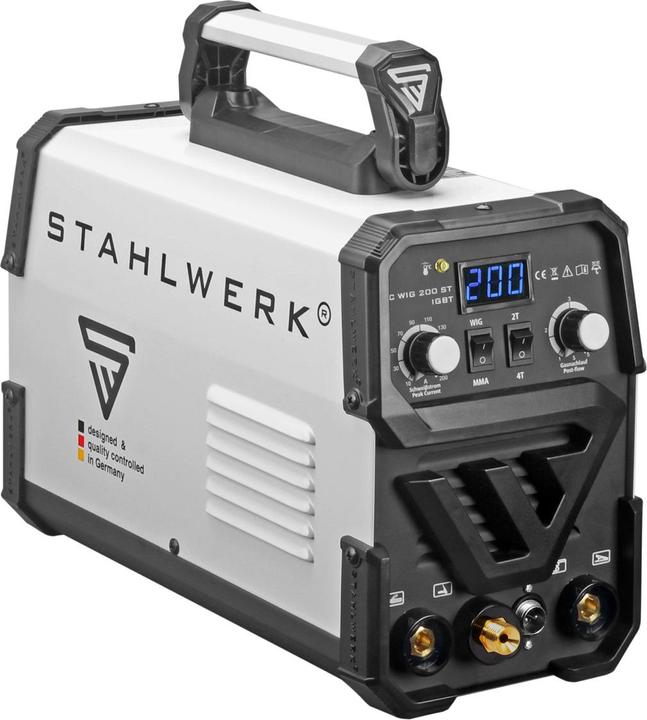

8. Stahlwerk DC TIG 200 ST IGBT welding machine with 200 amps and MMA electric hand
Properties
DC TIG welding - direct current (DC). Welding of almost all metals, such as steel, stainless steel, copper, brass and many more. Note: Not suitable for aluminium - an AC/DC device is required for this.
2 in 1 combination device - TIG & MMA welding is possible up to 200 A.
Technical data
Output current (TIG / MMA): 10-200 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+- 15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) (TIG / MMA): 27.7 A / 39.7 A
Maximum effective mains current (I1eff) (TIG / MMA): 14.5 A / 13.5 A
Weight: 7.6 kg
Dimensions L x W x H (mm): 390 x 170 x 275
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Scope of delivery
1 x The DC TIG 200 ST IGBT steelwork welding machine
1 x Professional TIG welding torch WP-26F / hose package 3 metres* with flexible torch head and kink protection on the gas connection
1 x TIG TIG accessory set 8 pieces:
3 x gas nozzles sizes: 5, 6, 7
1 x clamping sleeve size 1.6
1 x clamping sleeve housing size 1.6
2 x burner caps - one short and one long
1 x universal tungsten electrode
(*Pre-assembled accessories from the picture of the welding torch are part of the 8-piece set)
1 x earth cable 3 metres
1 x welding cable with electrode holder 3 metres
1 x wire brush
1 x slag hammer
1 x Quick coupling gas pressure reducer incl. O-seal
1 x Gas connection hose with quick coupling 5 metres
1 x protective cover
Welding machines
CHF208.–
Stahlwerk DC TIG 200 ST IGBT welding machine with 200 amps and MMA electric hand
9. Stahlwerk Welding machine MIG MAG 200 ST PLUS shielded arc welding machine IGBT with 200 A
Properties
MIG MAG - gas metal arc welding with direct current (DC). Welding can be carried out with inactive/inert (MIG, e.g. argon) or active (MAG, e.g. CO2) gases. Gas and welding wire come from one torch head and enable welding work to be carried out with just one hand.
Synergic wire feed
Technical data
Model: Steelworks welding machine MIG MAG 200 ST PLUS
Output current MIG/MAG (0.6 / 0.8 / 1.0): 20 - 100 A / 40 - 200 A / 50 - 200 A
FLUX output current (0.6 / 0.8 / 0.9 - 1.0): 20 - 160 A / 40 - 200 A / 50 - 200 A
Output current MMA/LIFT-TIG: 20 - 200 A
Duty cycle (40°C): 15% at 200 A / 60% at 100 A / 100% at 77 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Open-circuit voltage: 62 V
Maximum mains current (I1max) MIG / LIFT-TIG / MMA: 35 A / 28 A / 38 A
Maximum effective mains current (I1eff) MIG / LIFT-TIG / MMA: 13.6 A / 10.8 A / 14.7 A
Weight: 10 kg
Dimensions L x W x H (mm): 480 x 210 x 360
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co, Ltd
Scope of delivery
1 x MIG MAG 200 ST PLUS steelwork welding machine
1 x AK-15 professional MIG welding torch / 3 m hose package with Euro central connection
1 x gas connection hose with quick-release coupling 5 m
2 x wire guide rolls 0.8/1.0 mm (one is already pre-assembled)
1 x quick coupling gas pressure reducer incl. O-seal
1 x Allen key
2 x contact tips 0.8 mm (one pre-assembled)
1 x contact tip 1.0 mm
1 x earth cable 3 m
1 x slag hammer
1 x wire brush
1 x assembly spanner
1 x protective cover
Welding machines
CHF369.–
Stahlwerk Welding machine MIG MAG 200 ST PLUS shielded arc welding machine IGBT with 200 A

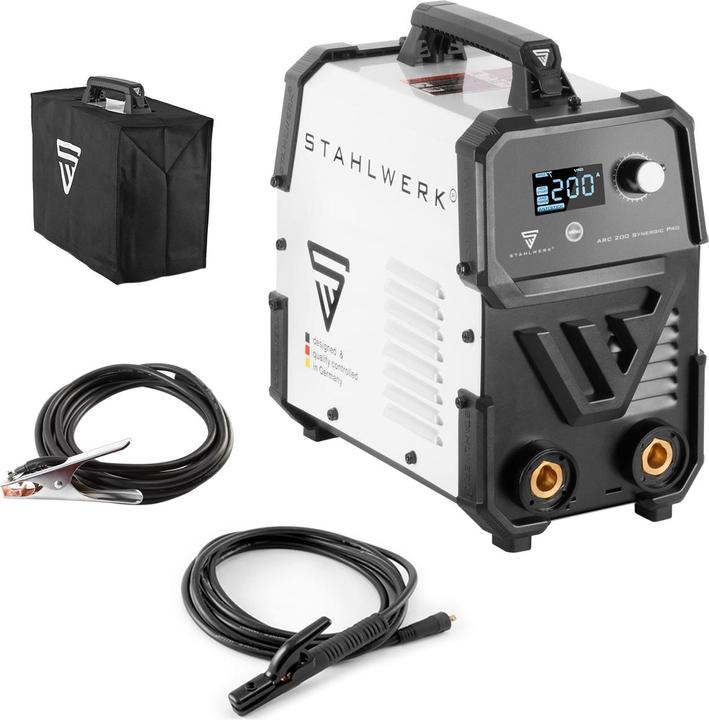

10. Stahlwerk Welding machine ARC 200 Synergic Pro MMA Lift TIG IGBT Inverter 200 A
Properties
MMA / E-Hand. Manual electrode welding is a universal welding process as it can be used under almost all conditions.
Anti-stick. If the electrode sticks to the workpiece, the welding current is automatically reduced. The electrode does not anneal and can be easily detached from the workpiece.
Hotstart. Automatic voltage increase at the start for better ignition results. Prevents the sticking of the rod electrode by briefly superimposing the set welding current and heats up the start of the weld seam more quickly.
IGBT technology. Powerful, innovative solution that sets new standards in welding technology.
Smart cooling. A powerful fan enables maximum duty cycle to be utilised thanks to excellent cooling.
Equipped with solid 13 mm professional connection sockets, the device guarantees maximum performance.
Technical data
Model: Stahlwerk ARC 200 Synergic Pro welding machine
Output current MMA/Lift TIG: 10 -200 A
Duty cycle (40°C): 10% at 200 A / 100% at 63 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 40 A
Maximum effective mains current (I1eff): 12,6 A
Weight: 4.2 kg
Dimensions L x W x H (mm): 275 x 155 x 275
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co, Ltd
Scope of delivery
1 x Stahlwerk ARC 200 Synergic Pro welding machine
1 x electrode holder 3 m
1 x earth cable 3 m
1 x steel brush
1 x slag hammer
1 x protective cover
Welding machines
CHF205.–
Stahlwerk Welding machine ARC 200 Synergic Pro MMA Lift TIG IGBT Inverter 200 A
