Properties
Flux-cored wire welding (FLUX) - welding without shielding gas. Welding with flux-cored wire is based on a similar process to MIG MAG welding, with the difference that no shielding gas needs to be supplied in this process.
Note: The device is not intended for use in residential areas where power is supplied via a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.
Technical data

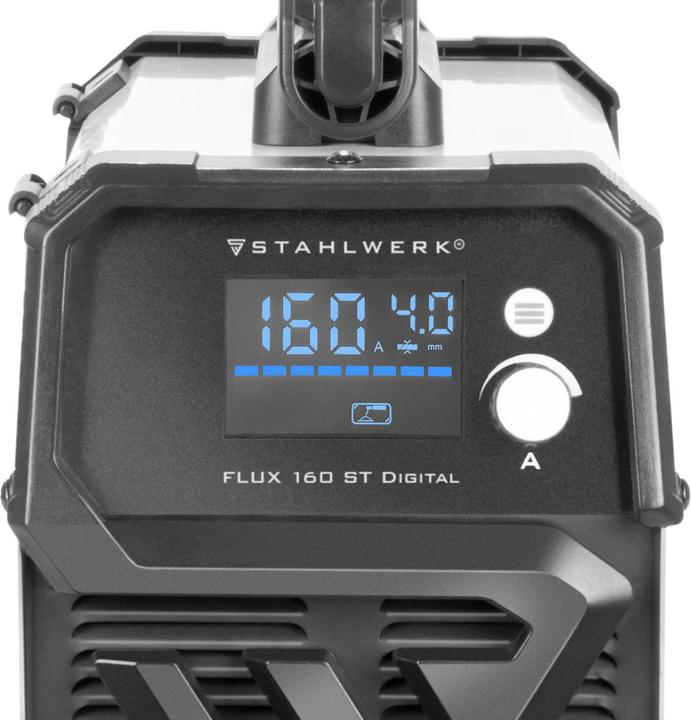

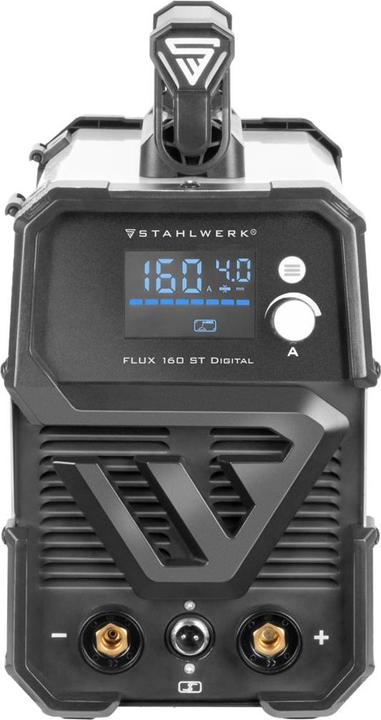

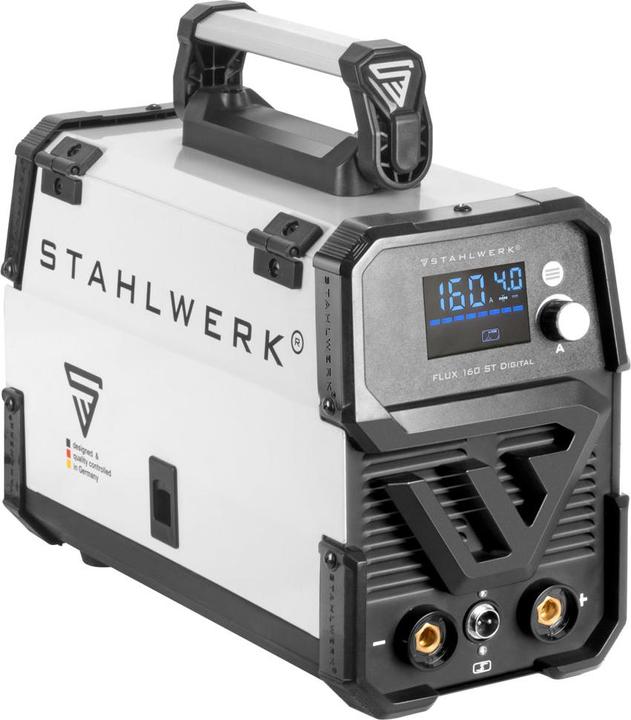

Model: Stahlwerk FLUX 160 ST digital welder
Output current: 40 - 160 A
Duty cycle (40°C): 10 % at 160 A / 100 % at 50.6 A
Protection class: IP21S

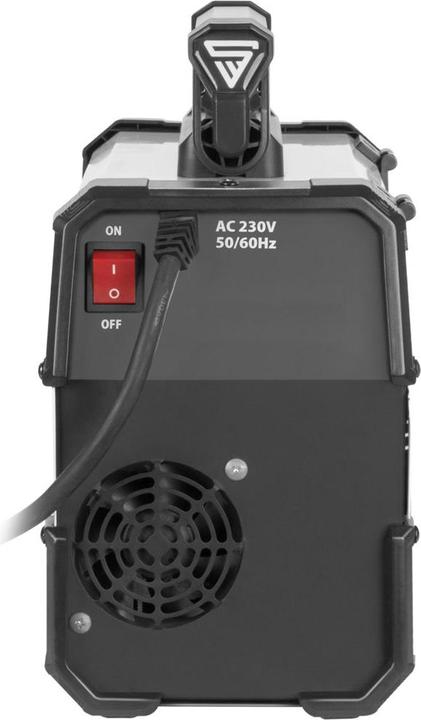

Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Weight: 5.9 kg
Dimensions L x W x H (mm): 375 x 175 x 290
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: TüV Rheinland LGA Products GmbH

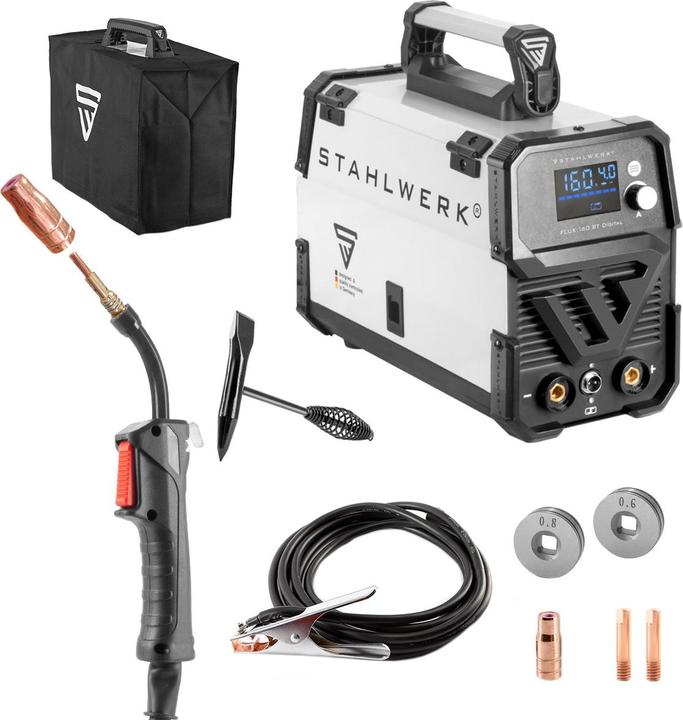

Scope of delivery
1 x Stahlwerk FLUX 160 ST digital welding machine
1 x Stahlwerk FLUX AK14 / MB14 welding torch for wire thicknesses from 0.8 to 1.0 mm, 9 mm connecting mandrel with wire feed-through, 2-pin connection for switching operations
1 x earth cable 3 m (Ø 16 mm²)
1 x nozzle holder (pre-assembled on burner)
1 x contact tip 0.8 (pre-assembled on burner)
2 x contact tips 0.9
2 x filler wire nozzles
2 x wire guide rollers 0.6 mm / 0.8 mm, 0.8 mm / 1.0 mm (already installed in the device) - all guide rollers are knurled
1 x slag hammer
1 x protective cover
