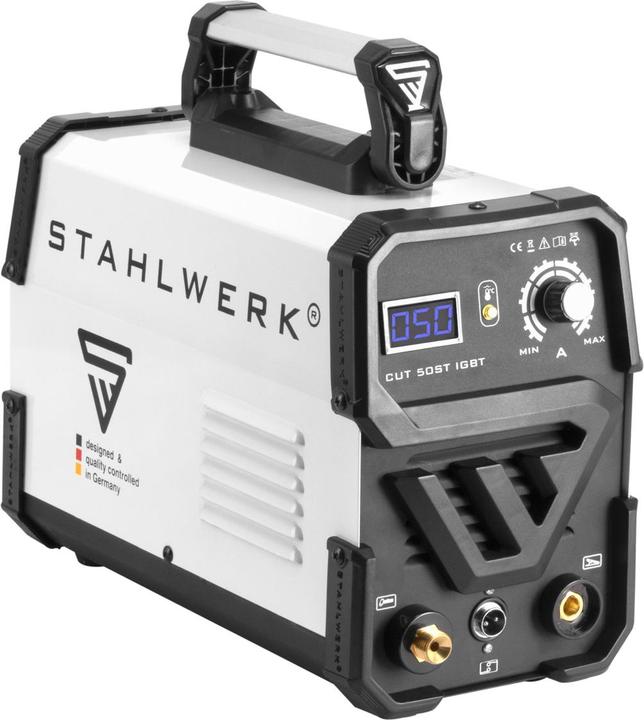

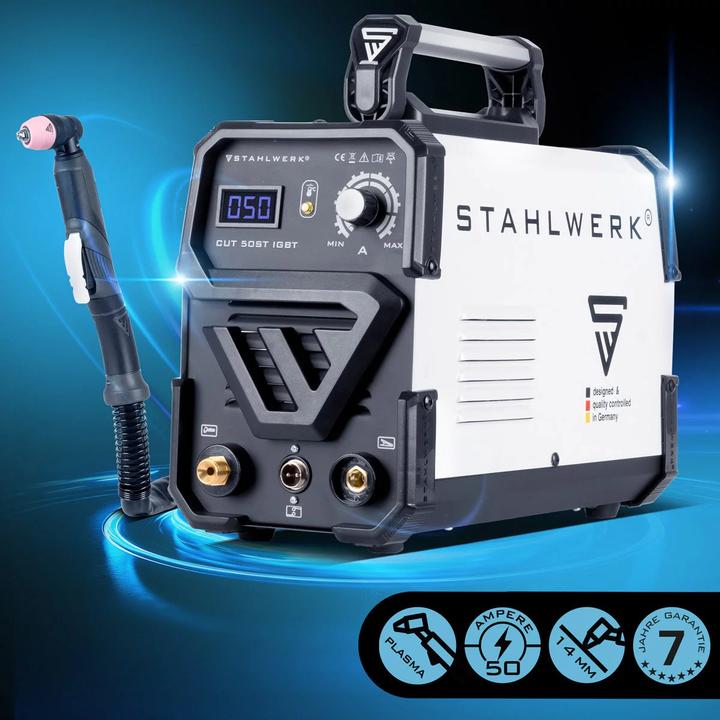

Name: Plasma cutter CUT 50 ST IGBT with 50 amps, up to 14mm cutting capacity
Brand: Stahlwerk
SKU: 46785825
Price: 287 CHF
Availability: InStock
Rating: 5 (2 reviews)

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Stahlwerk

Properties

Plasma: Conductive metals such as standard steel, copper, stainless steel, brass, aluminum, and titanium can be cut without problems. Cutting capacity is up to 14 mm (depending on material): mild steel ST37 up to 14 mm, V2A or V4A up to 8 mm, and aluminum up to 5 mm. CUT contact: smooth-running HF ignition, one stroke is enough. IGBT technology advantages include powerful performance, good forward behavior, high reverse voltage, and robustness.

Technical Data

Output current: 15-50 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 33 A
Maximum effective mains current (I1eff): 13.1 A
Weight: 7.2 kg
Dimensions L x W x H (mm): 390 x 170 x 275
Mains connection: CEE 7/7 Schuko plug
Air pressure: 3.5 - 4 bar
Air flow: min. 100 L/min
Standards: IEC 60974-1; EN 60974-10 (Class A)

Scope of Delivery

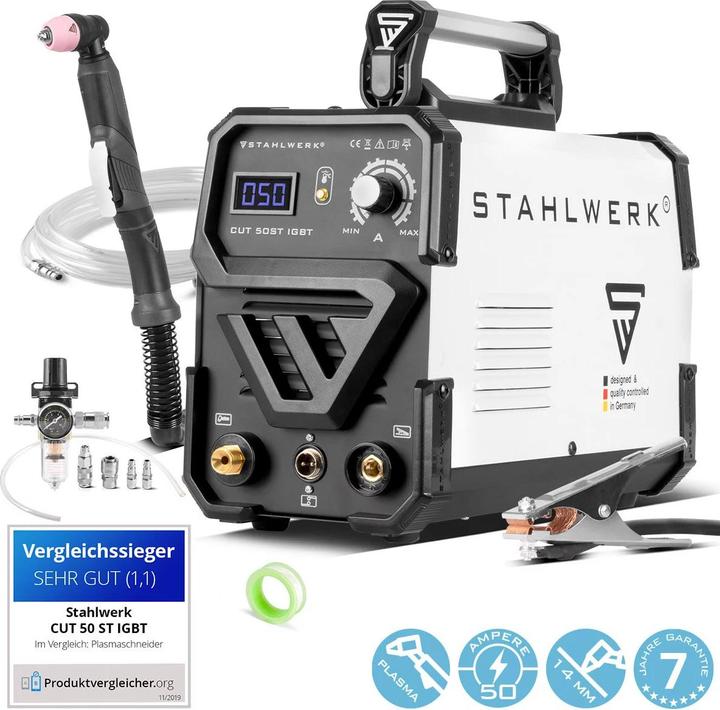

1 x STAHLWERK CUT 50 ST plasma cutter
1 x Professional plasma hose package AG-60/SG-55, 3 metres
1 x 3-piece plasma accessory set (pre-assembled on the plasma torch):
- 1 x plasma nozzle
- 1 x plasma electrode
- 1 x ceramic cap
1 x earth cable, 3 metres
1 x water separator with pressure gauge and snap-on quick-release couplings
1 x Connecting hose with snap-on quick-release couplings from the appliance to the water separator, including 6-piece connection set
1 x Air connection hose with snap-on quick-release coupling, 5 m
1 x protective cover
1 x Teflon tape.

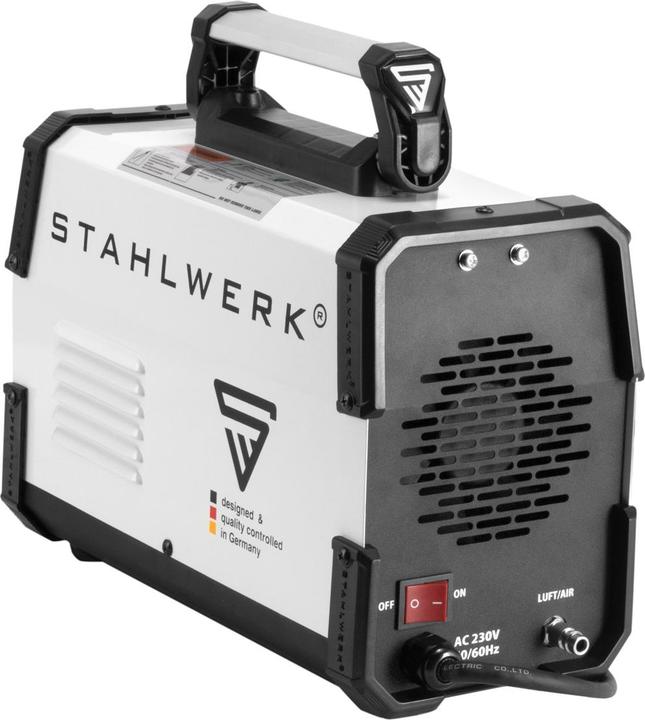

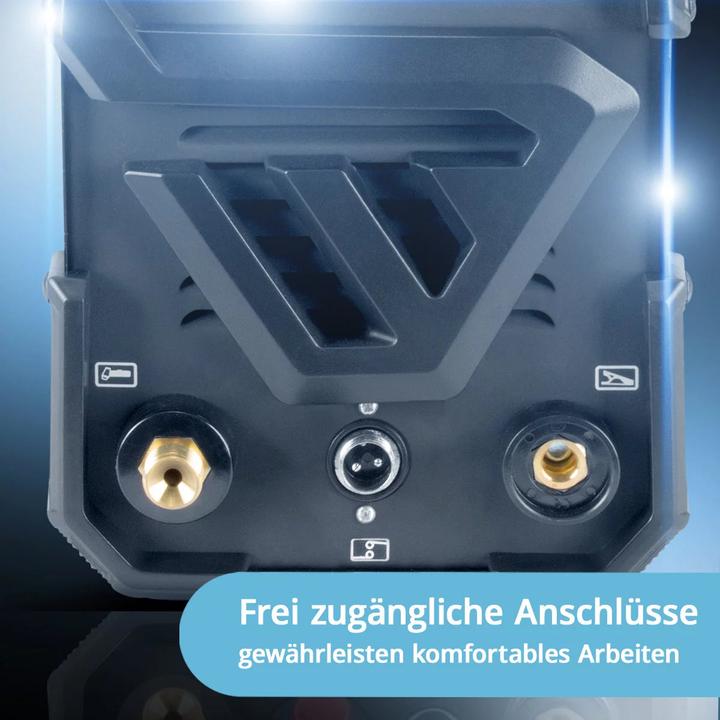

Actual product image Stahlwerk Plasma cutter CUT 50 ST IGBT with 50 amps, up to 14mm cutting capacity
