Stahlwerk Welding machine Mini FLUX 120 ST with ARC | MMA function with 120 amps

Note: To avoid damaging the appliance, please note the following: The lock on the wire reel is a bayonet lock. To release it, first press it in against the spring and only then turn it to the left. After inserting the reel, the lock must be pressed in again and then closed to the right.

Note: The appliance is not intended for use in residential areas where the power supply is provided by a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

Technical data

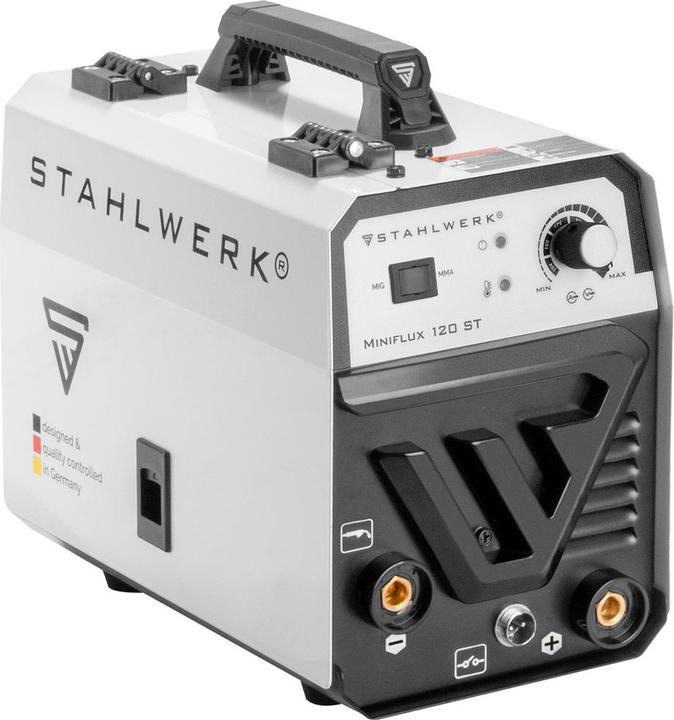

Model: Stahlwerk Mini FLUX 120 ST cored wire welder
FLUX output current: 20 - 120 A
Output current ARC / MMA: 20 - 100 A
Duty cycle (40°C): 15 % at 120 A / 100 % at 46 A

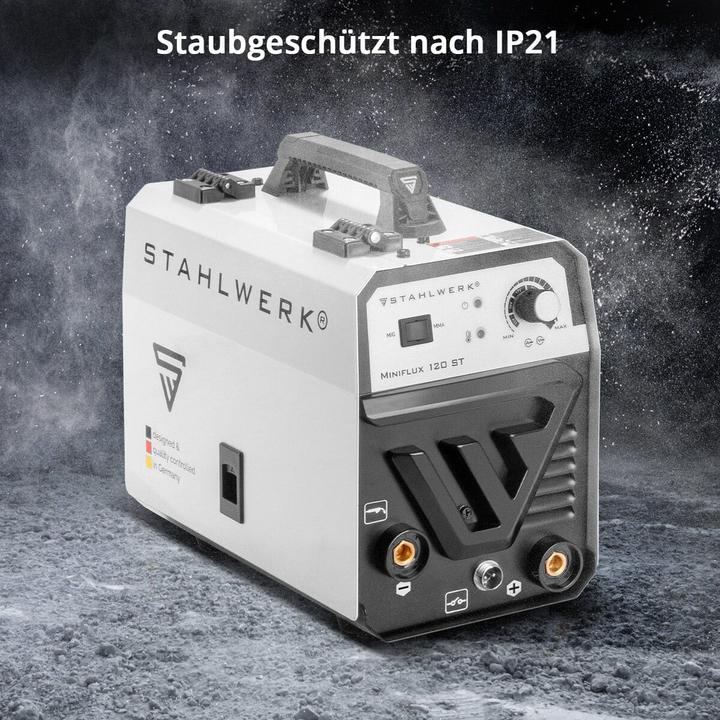

Protection class: IP21S

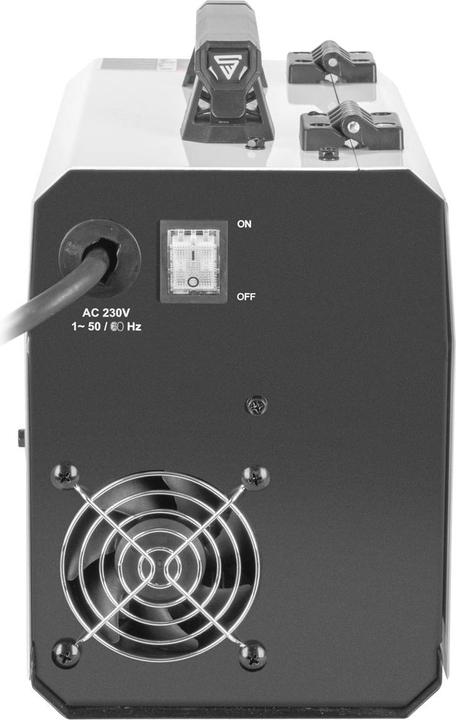

Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 17.3 A
Maximum effective mains current (I1eff): 6,7 A
Suitable for cored wires: ø 0.6 - ø 1.0 mm
Weight: 4 kg

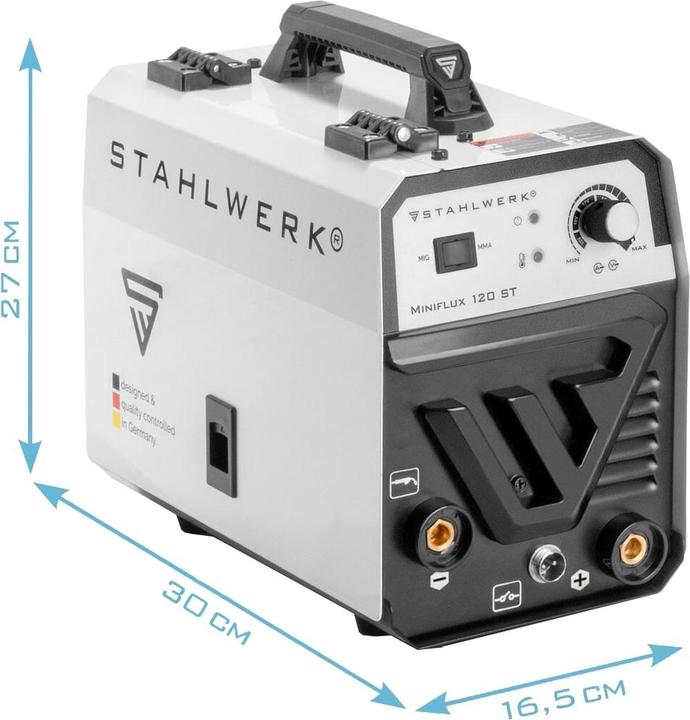

Dimensions L x W x H: 300 x 165 x 270 mm
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co, Ltd.

Scope of delivery

1 x Stahlwerk Mini FLUX 120 ST cored wire welder
1 x FLUX torch hose package 2 m
1 x earth cable 1.2 m
1 x wire guide roller 0.6 / 0.8/0.9/1.0 mm knurled (pre-assembled)
1 x MIG MAG premium welding wire Flux cored wire E71T-GS ø 0.9 mm 0.45 kg
1 x High-quality wire brush
1 x Slag hammer 300 g
