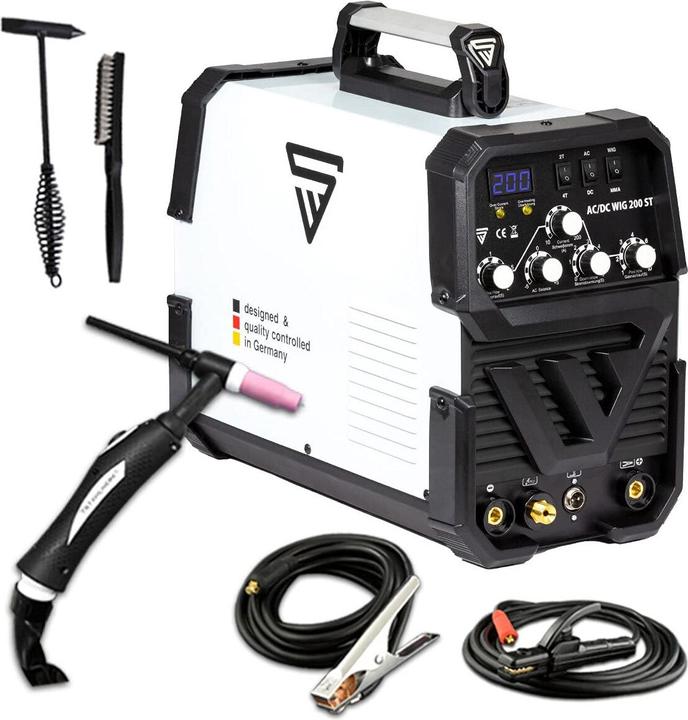

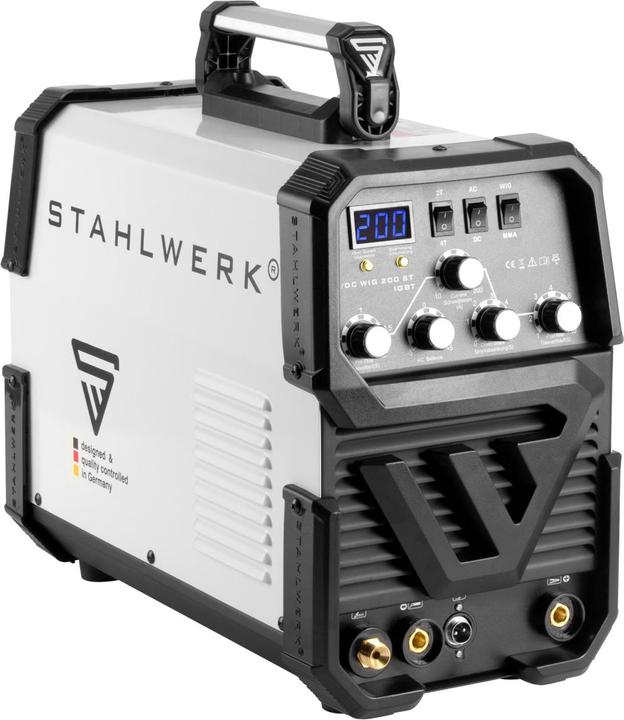

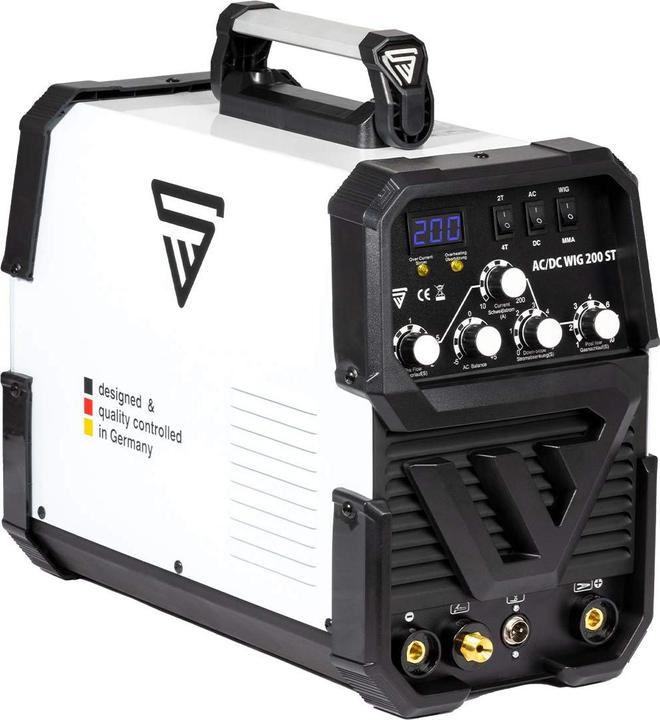

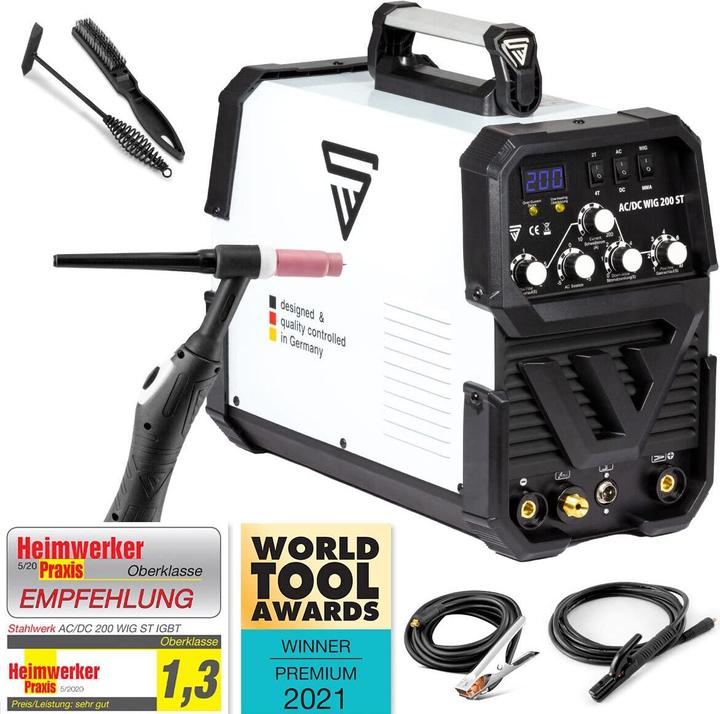

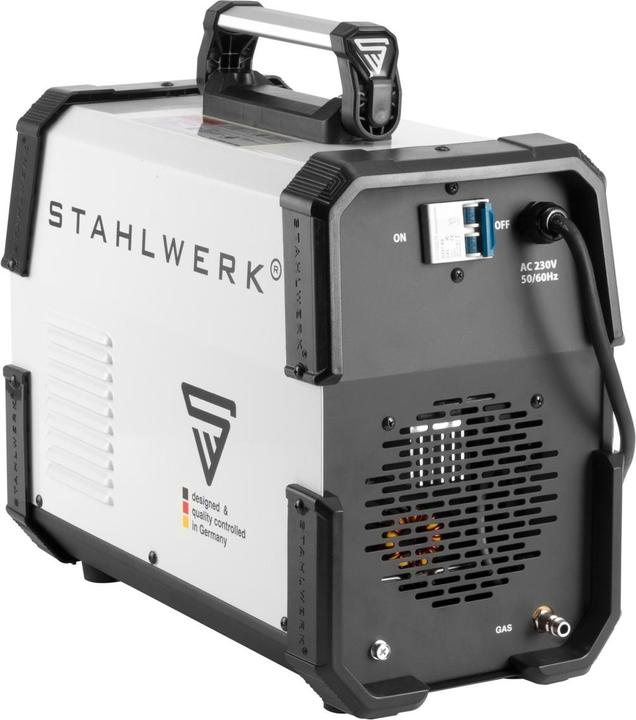

Stahlwerk Combination welder AC/DC TIG 200 ST IGBT 200 amps

Properties

AC/DC TIG welding - alternating current (AC) and direct current (DC). Welding of almost all metals, such as steel, stainless steel, aluminium, copper and many more.
2 in 1 combination device - TIG & MMA welding is possible up to 200A.
IGBT technology - The latest and most modern transistor technology enables high performance welding! No transformer, no MOSFET, state-of-the-art IGBT!

Technical data

Output current TIG / MMA: 30-200 A
Protection class: IP21S
Insulation class: F

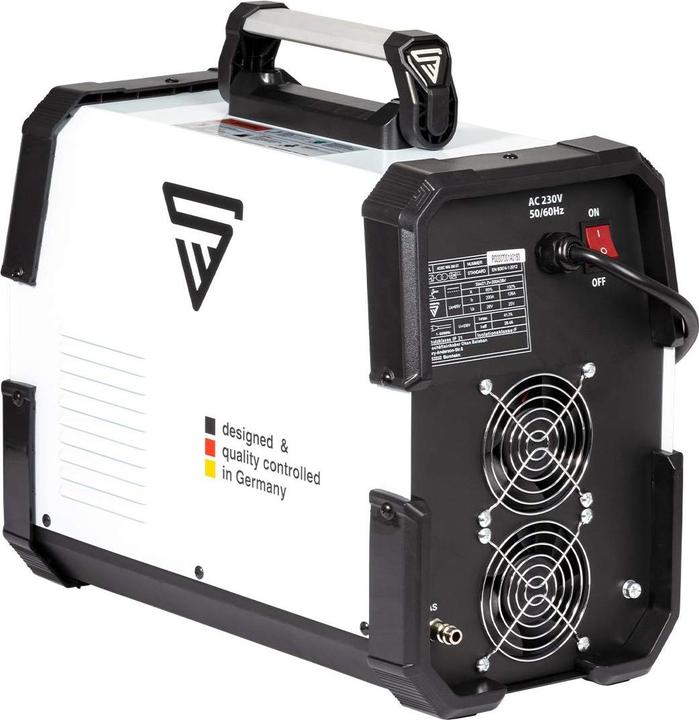

Mains voltage: 230 V AC (+-15%) / 1 ~ (single-phase)
Mains frequency 50/60 Hz
Maximum mains current (I1max) (TIG / MMA): 27.7 A / 39.7 A
Maximum effective mains current (I1eff) (TIG / MMA): 14.5 A / 13.5 A
Weight: 11.5 kg
Dimensions L x W x H (mm): 455 x 220 x 370
Mains connection: Schuko type CEE 7/7
Standards: IEC 60974-1; EN 60974-10 (Class A)

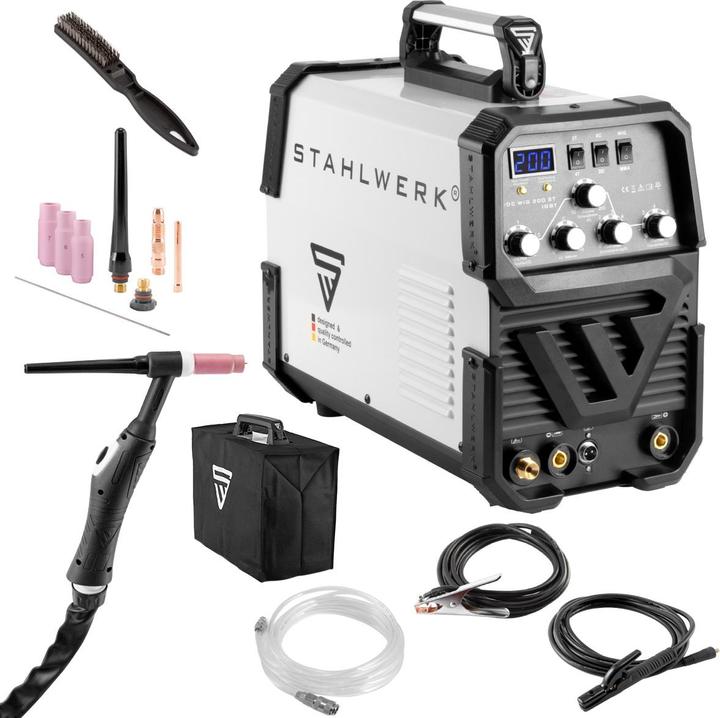

Scope of delivery

1 x Steelworks AC/DC TIG 200 ST IGBT welding machine

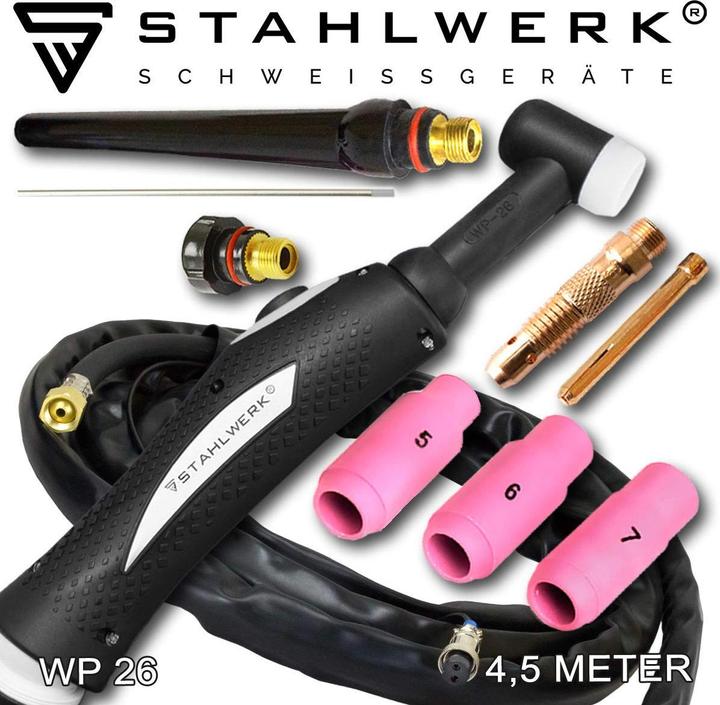

1 x Professional TIG welding torch WP-26F / hose package 3 metres* with flexible torch head and kink protection on the gas connection
1 x TIG TIG accessory set 8 pieces:

3 x gas nozzles sizes: 5, 6, 7
1 x clamping sleeve size 1.6
1 x clamping sleeve housing size 1.6
2 x burner caps - one short and one long
1 x universal tungsten electrode 1.6 mm
* Pre-assembled accessories from the illustration of the welding torch are included in the 8-piece set

1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x wire brush
1 x slag hammer
1 x Gas connection hose with quick coupling 5 metres
1 x Snap-on connection set
1 x protective cover
