Stahlwerk Welding machine MIG MAG 200 ST IGBT shielding gas with 200 amps MMA E-Hand

Properties MIG/MAG: Gas metal arc welding, in which shielding gas or mixed gas is used to protect the seam from oxidation. Flux-cored wire: Flux-cored wire welding is possible with all MIG ST IGBT devices. No shielding gas is required for this special wire. Automatic wire feed: The speed of the wire feed adjusts automatically to the welding current. Voltage: The burn-off of the wire can be set separately.

Technical data:

• Output current MIG/MMA: 40-200 A
• Protection class: IP21S
• Mains voltage: 230 V AC (+-15%) / 1 ~ (single-phase)
• Mains frequency: 50/60 Hz
• Maximum rated current (I1max) MIG/MAG: 34.6 A / 40 A
• Maximum effective mains current (I1eff) MIG/MAG: 10.9 A / 12.6 A
• Weight: 11.8 kg

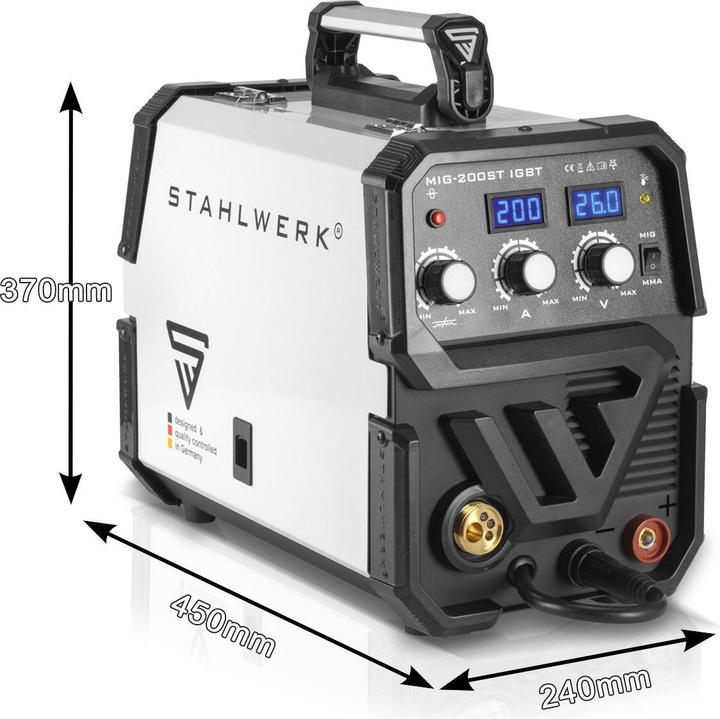

• Dimensions L x W x H (mm): 450 x 240 x 370
• Mains connection: Schuko type CEE 7/7
• Standards: IEC 60974-1; EN 60974-10 (Class A)

Scope of delivery:

• 1 x STAHLWERK MIG 200 ST IGBT welding machine
• 1 x Professional MIG welding torch AK-15 / 3 meter hose package with Euro central connection
• 1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG/MAG torch):
• 1 x gas nozzle
• 1 x contact tip 0.8mm
• 1 x gas nozzle holder
• 1 x earth cable 3 meters (25 mm²)
• 1 x electrode holder 3 meters (25 mm²)
• 1 x gas connection hose with quick coupling 5 meters
• 1 x connection set for pressure reducer
• 2 x contact tips (0.8 / 1.0 each)
• 1 x installation wrench
• 1 x wire brush
• 3 x wire guide rollers (0.6 mm/0.8 mm, 1.0 mm/1.2 mm, 0.8 mm/1.0 mm is already installed in the device)
• 1 x protective cover.
