Wiltec Hrale Stainless Steel Heat Exchanger 50 Plates max. 285 kW Plate Heat Exchanger

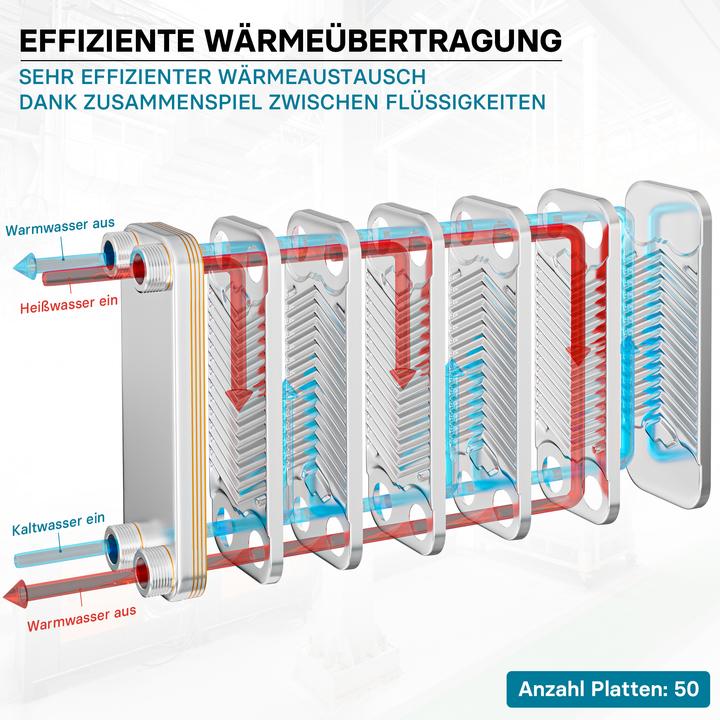

The plate heat exchanger can be used flexibly. It is characterised by a compact and small construction unit, low weight, high heat transfer performance thanks to technically sophisticated plate embossing, high operating temperatures and working pressures, stainless steel material that ensures good corrosion resistance and simple installation. It is extremely low-maintenance and easy to service - a cost-effective mass-produced device with low product content.

Plate heaters are used in industrial heating technology, for example, but also in cooling and solar technology. Thanks to their versatility, plate heat exchangers can be found, for example, in

• Combined heat and power plants
• air conditioning systems
• heat pumps
• underfloor heating
• heat extraction
• water heating
• air conditioning in buildings
• the food industry
• refrigeration and air conditioning technology
• domestic hot water heating
• heat supply networks
• solar thermal systems
• Heating systems at risk of frost
• heat recovery systems
• Swimming pool water heating
• the heating of regenerative fuels
• vegetable oil conversion for cars and lorries
• System separation for underfloor heating systems
• chemical and pharmaceutical production processes
• Transfer stations in district heating supply networks

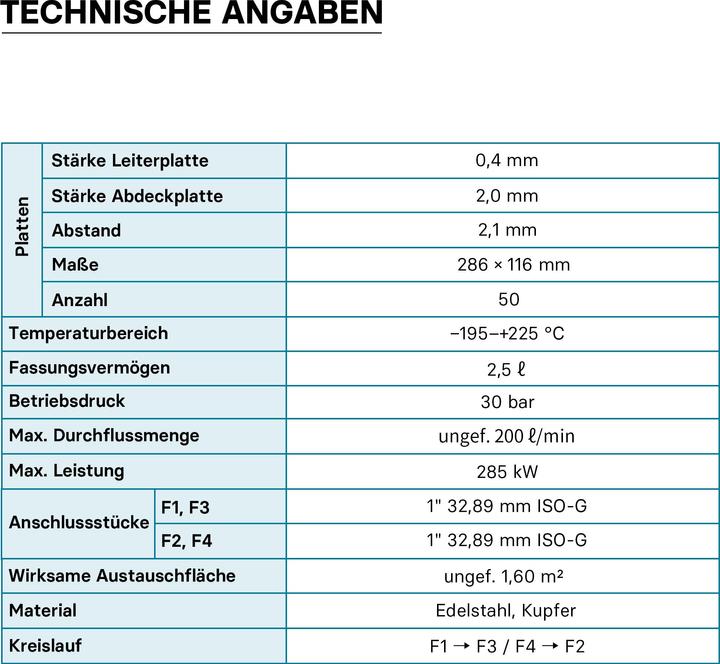

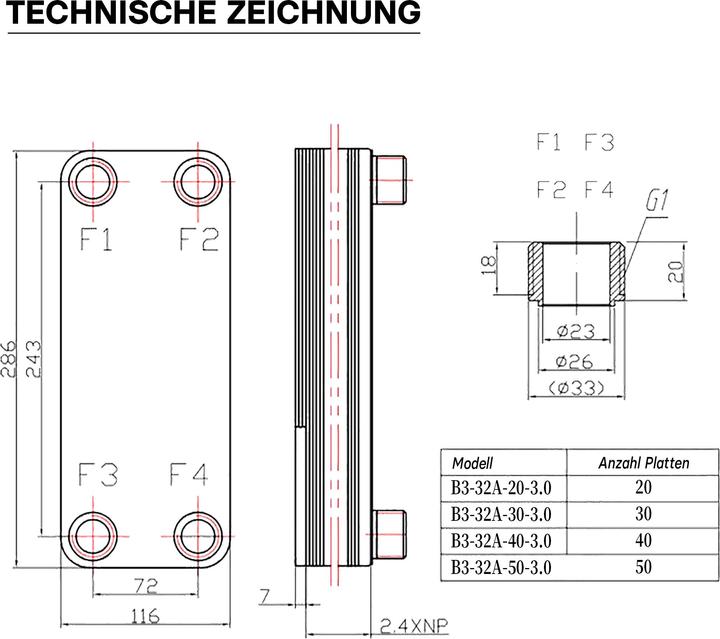

Plate heat exchanger B3-32-50
Max. Flow rate 12 m³/h
Volume per passage 2.50 litres

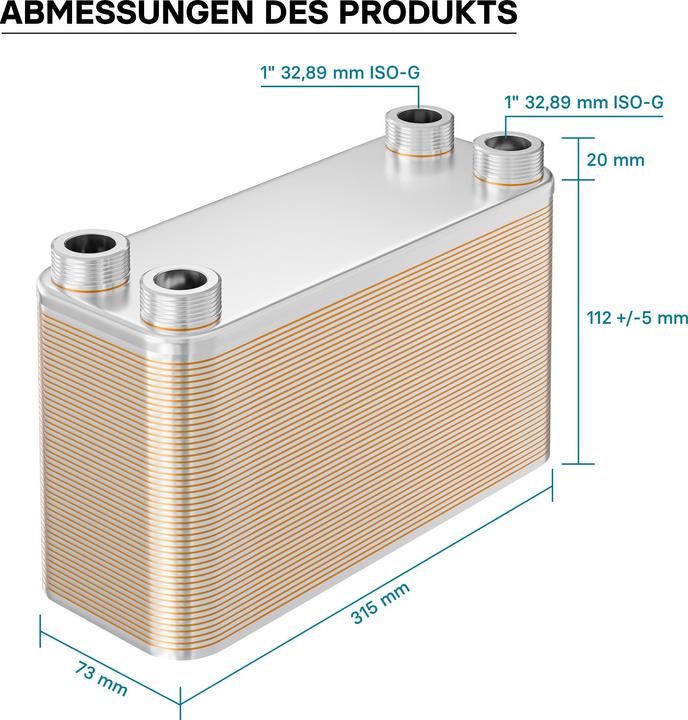

Connections:
F1 & F3 1″ 32.89 mm according to ISO-G
F2 & F4 1″ 32.89 mm according to ISO-G.
