Stiebel Eltron HFA-Z 30 hydraulic wall cylinder, rapid heat-up, 30 litres, 2-6 kW
Volume3
Product details
Define your personal comfort zone. Maintaining a high standard with proven technology is what describes this hot water storage tank particularly well. It controls its performance not electronically, but hydraulically. This way, it provides enough mixed water for you when you want to relax in a cozy warm bath. Thanks to the quick heating button, you never have to wait long for water at your desired temperature. With these features, this device has become indispensable in your personal comfort zone.

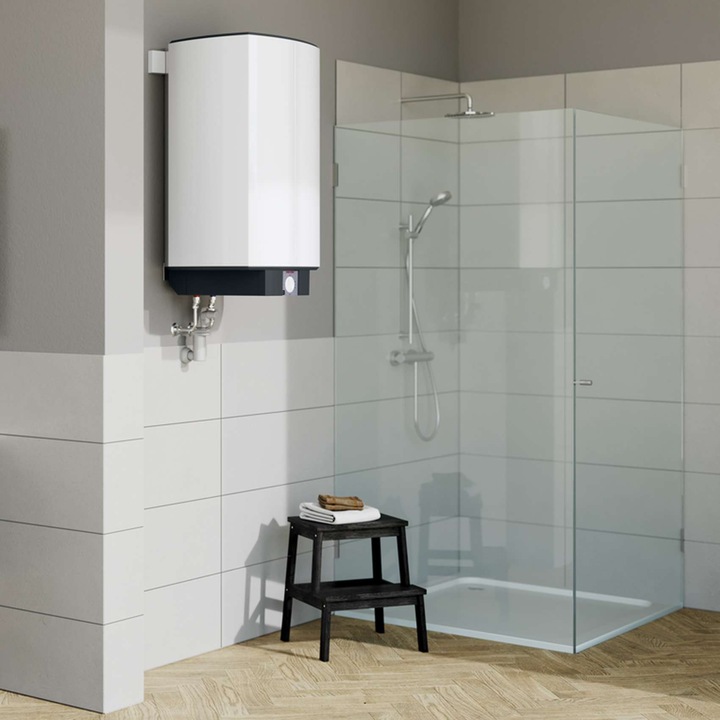

Application area: The closed hot water storage tank supplies multiple draw-off points in the bathroom and kitchen comfortably and energy-efficiently, whether for individual or group supply.

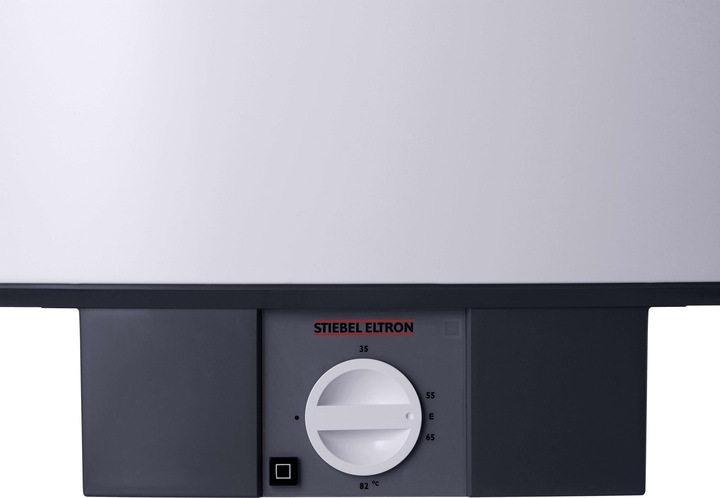

Comfort features: The desired water temperature can be adjusted continuously. In case of increased demand, the 'Quick Heating' button provides additional comfort through the boiler.
Efficiency: Low energy losses due to high-quality thermal insulation.
Safety: The automatic frost protection monitors the water temperature and protects the tank from freezing. Additional corrosion protection is provided by the high-quality protective anode.
Installation: Simplified installation with selectable connection power and removable strain relief. Marking drill holes and pre-installing water connections is made easy with the included mounting template.
Delivery includes: STIEBEL ELTRON hot water heater HFA-Z 80, wall mount, spacers 5 mm (2 pieces for the top, 2 pieces for the bottom), mounting template.
Boiler type | Hot water tank |
Volume | 30 l |
Item number | 20345060 |
Manufacturer | Stiebel Eltron |
Category | Boilers |
Manufacturer no. | 073111 |
Release date | 29.3.2022 |
External links |
Colour | White |
Exact colour description | White |
Material group | Metal |
Material | Steel |
Boiler type | Hot water tank |
Version | Wall storage tank |
mounting style | Wall-mounted |
threaded connector | 1/2“ |
Design | Pressure resistant |
heating system | Tubular heating element |
Heating time | 18 min |
Temperature range | 35 °C - 82 °C |
Temperature display | Digital |
Max. pressure | 6 bar |
Energy efficiency class | B |
Model name | HFA-Z 30 |
Refrigerant | No refrigerant |
Power supply | Electrical connection |
Nominal power | 6 kW |
Nominal voltage | 400 V |
Protection type (IP code) | IP24 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Mounting template, Spacers 5 mm (2 pieces for top, 2 pieces for bottom), STIEBEL ELTRON wall-mounted cylinder HFA-Z 80, Wall attachment |

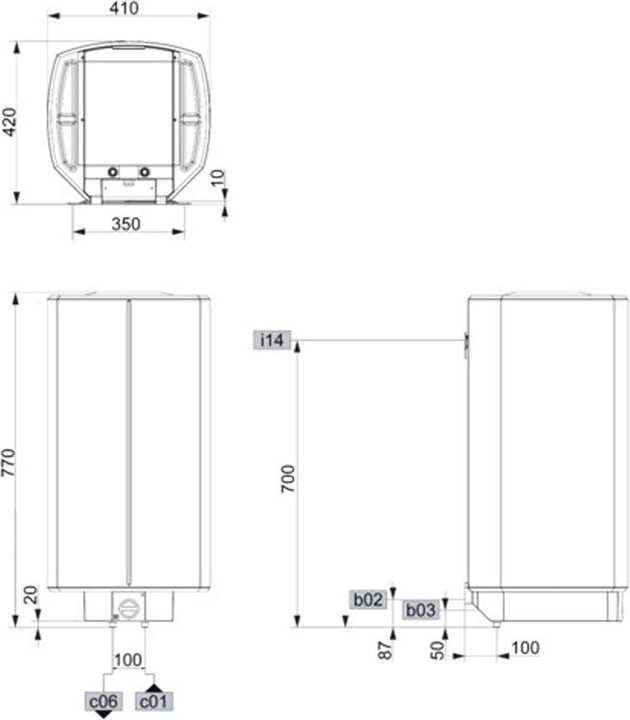

Length | 42 cm |
Width | 41 cm |
Height | 77 cm |
Weight | 22.60 kg |
Volume | 30 l |
