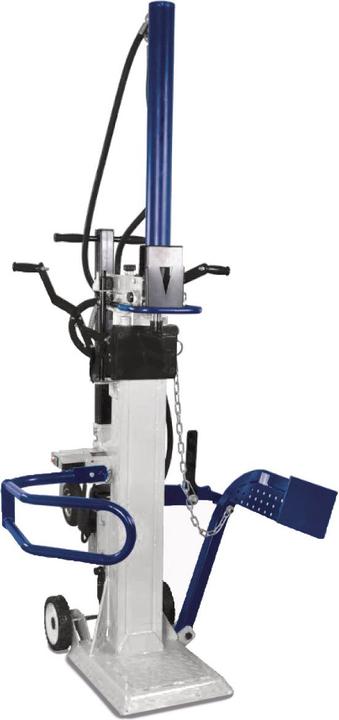

Holzkraft Firewood splitter HSE 14-1100 400V

Vertical design for splitting short and meter wood. Low base plate for easy, fatigue-free loading of large logs. Mechanical log lifting device positions heavy logs ergonomically. Equipped with a split wood catch bracket. Quick, tool-free splitting height adjustment. Powerful industrial hydraulic system. Phase converter for all 400 V models. Two-hand safety switch. Convenient transport with hand-drawn drawbar through standard chassis with solid rubber wheels and additional support wheel. Impact and scratch-resistant due to high-quality powder coating. Space-saving storage with easily lowerable cylinder.

Technical Data:
Dimensions and Weights:
Length (product) approx. 1440 mm
Width/Depth (product) approx. 1350 mm
Height (product) approx. 2280 mm
Weight (net) approx. 185 kg

Drive:
Drive type: Electric motor
Rated power: 3.5 kW

Electrical Data:
Connection voltage: 400 V
Mains frequency: 50 Hz

Device Data:
Max splitting force: 14 t
Max cylinder stroke: 850 mm
Min splitting length: 560 mm
Max splitting length: 1040 mm
Min splitting wood diameter: 100 mm
Max splitting wood diameter: 300 mm
Forward speed(s): 4.2 - 21.8 cm/s
Return speed: 5.2 cm/s

Noise Emission:
Sound pressure level: ≥ 80 dB(A)

Hydraulic System:
Tank capacity hydraulic oil: 9.3 l.
