Böllhoff Thread insert set 10 or 20 pieces 1×D

Ratings
Delivered between Fri, 30.5. and Wed, 4.6.
More than 10 items in stock at supplier

Features

Product details

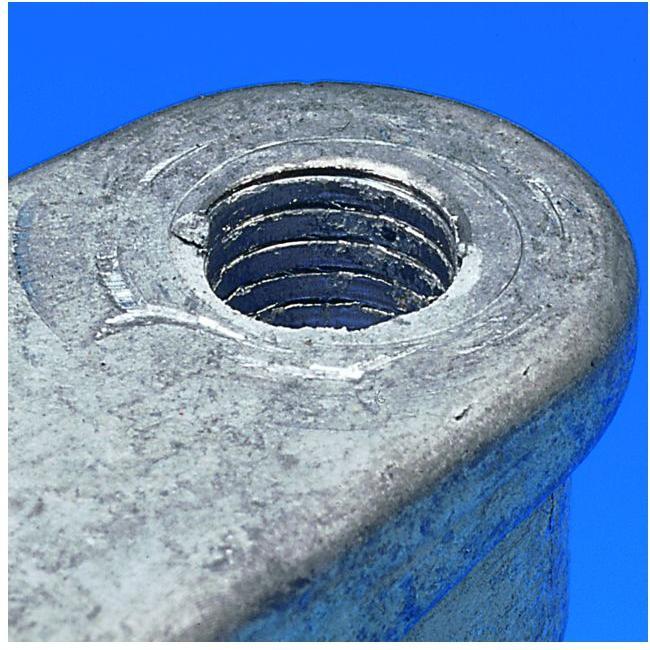

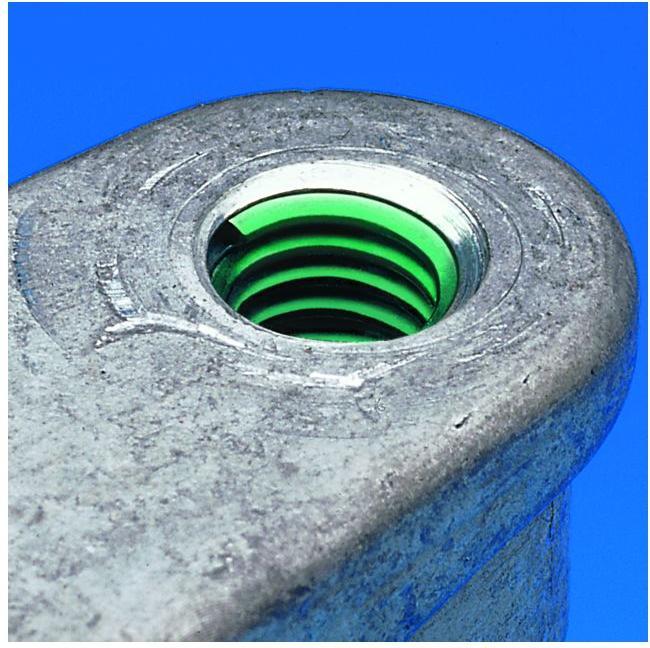

Metric thread inserts made from stainless steel wire shaped like a spring. Continuously free-running, the drive pin is cut off at the notch (break point) after installation. Optimized design with a novel entry area that allows the insert to be positioned and screwed in like a screw. High-strength, continuously free-running HeliCoil®plus thread inserts made of stainless steel, featuring high wear resistance, low thread friction in tight tolerances, high surface quality, as well as corrosion and heat resistance. The flexible design enables uniform load and stress distribution, resulting in durable screw connections of the highest quality for all operational loads (static, dynamic) with ideal force transmission. Simple and quick installation creates a gauge-holding, double-sided usable internal thread. Note: Self-locking inserts and other dimensions are available upon request. Suitable limit gauges for thread testing are available. Self-locking inserts, other dimensions, and UNC/UNF thread inserts are available upon request.

Key specifications

tap type
Taps
thread type
M6
Set
Set
Item number
45487840

General information

Manufacturer
Böllhoff
Category
Threading taps + Threading dies
Manufacturer no.
41890060006/10
Release date
7.5.2024

Tap Properties

tap type
Taps
thread type
M6
gradient
1 mm
Set
Set

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
20 x thread insert set

Product dimensions

Length
1 mm

Package dimensions

Length
17.90 cm
Width
11.90 cm
Height
1.10 cm
Weight
13 g
