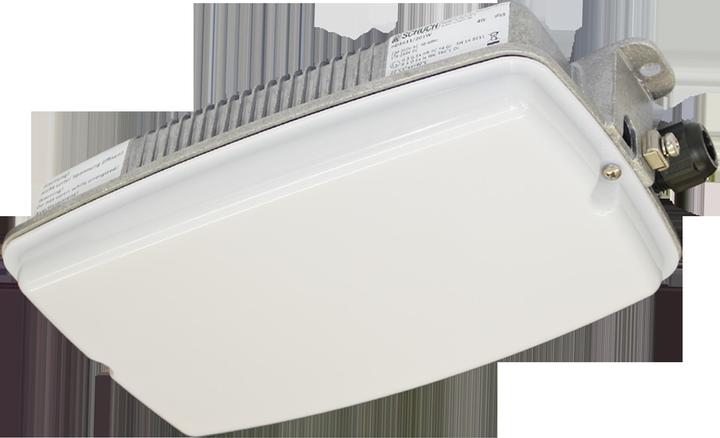

Schuch SCHU LED emergency light

Schuch Licht EX LED compact light nD8611 L02 W

Manufacturer: Schuch Licht
Designation: EX LED compact light 6500K
Type: nD8611 L02 W
Mounting type: Other
Adjustable: No
Light source: LED not replaceable
With light source: Yes
Housing material: Aluminium
Cover material: Plastic matt/satin finish
Voltage type: AC
Rated voltage: 220...240 V
Control gear: LED control gear, current-controlled
With control gear: Yes
Energy efficiency class of the permanently installed light source: A++, A+, A (LED)
Rated service life L70/B10 at 25 °C: 0 h
Rated service life L70/B50 at 25 °C: 0 h
Rated service life L80/B10 at 25 °C: 0 h
Rated service life L80/B50 at 25 °C: 0 h
Rated service life L90/B10 at 25 °C: 0 h
Rated service life L90/B50 at 25 °C: 0 h
Protection class (IP): IP65
Protection class: I
For Ex zone gas: 2
For Ex zone dust: 22
Rated ambient temperature according to IEC62722-2-1: -60 °C
Max. system power: 4 W
Rated luminous flux according to IEC 62722-2-1: 150 lm
Light colour: White
Colour temperature: 6500 K
Width: 161 mm
Height/depth: 69 mm
Length: 300 mm
Outer diameter: 0 mm
Conductor cross-section: 0 mm²
Connection type: Plug-in terminal

Further details: EX LED compact luminaire, EX zone 2/22, 4 W, 150 lm, SKI, IP65, wide beam, 6500 K, Ra= 70, Ta -20 °C/+40 °C, L70B10>50000 h (@ Ta max), diffuser PC opal, cover stainless steel V2A, housing die-cast aluminium. Compact explosion-proof LED escape sign luminaire for Zone 2/22. Die-cast aluminium housing with moulded mounting brackets. White-opal polycarbonate diffuser screwed to the housing, silicone seal. LED modules and ECG built into the housing. Escape sign pictogram not included in scope of delivery (accessory).
