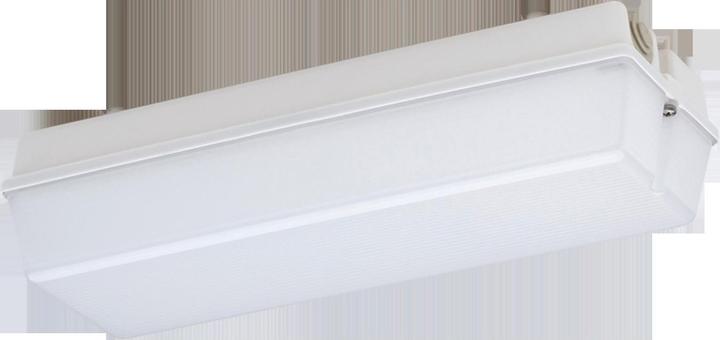

Schuch LED emergency light

Schuch Licht LED Emergency Light 131 L03G2/1 MA

Manufacturer: Schuch Licht
Designation: LED Emergency Light 840, EB 1h
Type: 131 L03G2/1 MA
Mounting Type: Wall-mounted/Ceiling-mounted
Function: Emergency Exit Lighting
With Pictogram: no
Monitoring Device: automatic self-test
Suitable for Standby Operation: no
Suitable for Continuous Operation: no
With Remote Switch Connection: no
With Remote Control: no
Power Supply: decentralized (single battery)
Battery Type: NiMh
Light Source: replaceable LED
With Light Source: yes
Housing Material: Plastic
Housing Color: white
Cover Material: matt/satinized plastic
Voltage Type: AC
Nominal Voltage: 220-240 V
Operating Device: LED operating device current-controlled
Replaceable Operating Device: yes
Light Distributor: none
Max. Number of Lights Circuit Breaker B16: 130
Rated Lifetime L70/B50 at 25 °C: 0 h
Luminous Flux Reduction at Average Lifetime 50,000 h at 25 °C Ambient Temp.: 0 %
Luminous Flux Reduction at Average Lifetime 100,000 h at 25 °C Ambient Temp.: 0 %
Failure Rate at Average Lifetime of 50,000 h at 25 °C Ambient Temp. (tq): 0 %
Failure Rate at Average Lifetime of 100,000 h at 25 °C Ambient Temp. (tq): 0 %
Constant Luminous Flux Control: no
Protection Class (IP): IP65
Impact Resistance: IK08
Protection Class: I
Light with Limited Surface Temperature "D Mark": no
Rated Ambient Temperature according to IEC62722-2-1: 0-30 °C
Max. System Power: 5 W
Rated Luminous Flux according to IEC 62722-2-1: 310 lm
Luminous Flux in Standby Operation: 0 lm
Color Temperature: 4000 K
Detection Range: 0 m
Nominal Operating Duration: 1 h
Width: 120 mm
Height/Depth: 95 mm
Length: 338 mm
Outer Diameter: 0 mm
Installation Width: 0 mm
Installation Height/Depth: 0 mm
Installation Length: 0 mm
Installation Diameter: 0 mm
Wiring Type: Terminal
Number of Poles: 4
Conductor Cross-section: 0 mm²
Connection Type: Plug Connection
EAN: 4041254416861.
