Turck Actuator and sensor cable PUR connecting cable

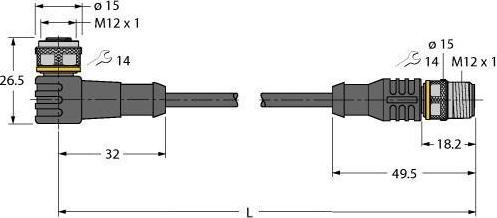

Turck connecting cable WKC4TP7X27RSC4T/TXL Manufacturer :Turck Designation :Connecting cable PUR Type :WKC4TP7X27RSC4T/TXL Number of poles :3 Electrical connection version, field side :M12 Type of plug contact, field side :Male Cable feed arrangement, field side :Straight Electrical connection version, housing side :M12 Type of plug contact, housing side :female Cable feed arrangement, housing side :angled Cable length :7 m Cable sheath material :polyurethane (PUR) Cable sheath colour :black With LED indicator :yes Shielded :no Cable type :multicore Contact body material :CuZn Contact coating material :gold Perm. Permissible external cable temperature after installation without vibration :-50..80 °C Permissible external cable temperature during installation/handling :-25...80 °C Rated current In :4 A Rated voltage :30 V Turck connecting cable WKC4TP7X27RSC4T/TXL: more details Actuator and sensor cable / PUR, connecting cable, M12 coupling, angled, 3-pin, with 2 LEDs (pnp, yellow, green), cable length: 7.0 metres, sheath material: PUR, sheath colour: black, suitable for drag chains, resistant to welding sparks, resistant to chemicals, UV and oil, flame-retardant, halogen-, silicone-, PVC- and LABS-free, particularly abrasion-resistant, approval: cULus, RoHS-compliant, protection class IP67, M12 connector, straight, 3-pin , EAN: 4047101333190.
