Turck Actuator and sensor cable PUR connecting cable

4 m
Ratings
Delivered between Thu, 7.8. and Thu, 28.8.

Length

Product details

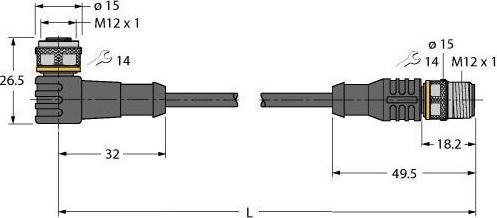

Turck connecting cable WKC4TP7X24RSC4T/TXL Manufacturer :Turck Designation :Connecting cable PUR Type :WKC4TP7X24RSC4T/TXL Number of poles :3 Type of electrical connection, field side :M12 Type of plug contact, field side :Male Arrangement of cable entry, field side :Straight Type of electrical connection, housing side :M12 Type of plug contact, housing side :female Cable feed arrangement, housing side :angled Cable length :4 m Material of cable sheath :polyurethane (PUR) Colour of cable sheath :black With LED indicator :yes Shielded :no Cable type :multi-core Material of contact base :CuZn Material of contact coating :gold Perm. Permissible external cable temperature after installation without vibration :-50..80 °C Permissible external cable temperature during installation/handling :-25...80 °C Rated current In :4 A Rated voltage :30 V Turck connecting cable WKC4TP7X24RSC4T/TXL: more details Actuator and sensor cable / PUR, connecting cable, M12 coupling, angled, 3-pin, with 2 LEDs (pnp, yellow, green), cable length: 4.0 metres, sheath material: PUR, sheath colour: black, suitable for drag chains, resistant to welding sparks, resistant to chemicals, UV and oil, flame-retardant, halogen-, silicone-, PVC- and LABS-free, particularly abrasion-resistant, approval: cULus, RoHS-compliant, protection class IP67, M12 connector, straight, 3-pin , EAN: 4047101303391.

Key specifications

Cable length
4 m
Plug type
M12
Item number
36335670

General information

Manufacturer
Turck
Category
Power cables
Manufacturer no.
6625816
Release date
1.1.2024

Colour

Cable colour
Black

Material

Material of the isolation
Polyurethane

Power cable properties

Wall socket
M12
Plug type
M12
Plug type
Flat

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
4 m
