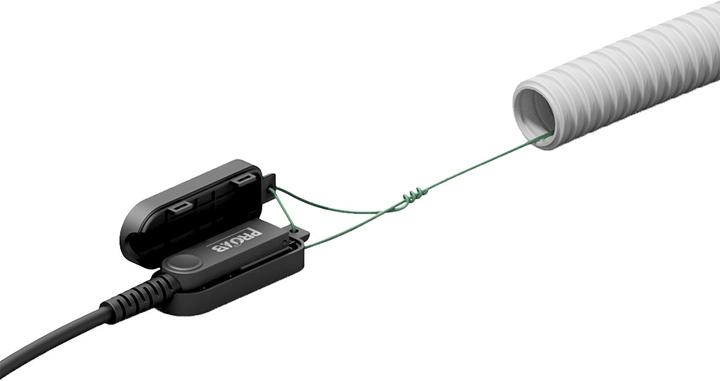

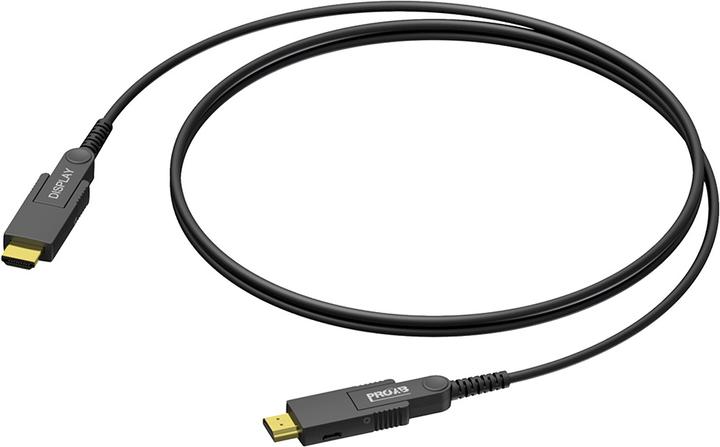

The CLV220A is an active optical HDMI 2.0 cable designed for fixed installations. It is capable of transmitting resolutions up to Ultra HD 4K 2160p (3840 x 2160) at 60 Hz with a bandwidth of 18 Gbps using OM3 fiber optic technology, eliminating electronic interference. The interchangeable connectors allow for easy detachment and reattachment of the connectors. This enables the cable to be routed through holes and straight pipes with a diameter of only 25 mm. The CLV220A comes with a supplied USB A to USB Micro B cable, which is only needed as an accessory if the HDMI connection on the transmitter side provides insufficient voltage (typically less than 4.8 V) to power the receiver end. Power is transmitted from the transmitter side to the receiver side through the CLV220A cable. Most general HDMI sources provide sufficient voltage, so the additional cable is not required. However, typical applications where this might be necessary include streaming media player boxes that may deliver insufficient voltage through their HDMI output.
Video cable type | HDMI cable |
Cable connection | Connection (m/m) |
Connection A | HDMI (type A) |
Connection B | HDMI (type A) |
Length | 30 m |
Documents | |
Item number | 14331353 |
Manufacturer | Procab |
Category | Video cables |
Manufacturer no. | CLV220A/30 |
Release date | 17.11.2020 |
Cable colour | Black |
Material | 125 om3, Fibre (4x), TC 11 x 0.08 mm (Ø) (OFC), TC 19 x 0.08 mm (Ø) (OFC), TC 30 x 0.08 mm (Ø) (OFC), TC 41 x 0.08 mm (Ø) (OFC), 50 |
Video cable type | HDMI cable |
Cable version | HDMI 2.0 |
HDMI cable type | HDMI high speed with Ethernet |
HDMI version | 2.0 |
Type | Cable |
Cable design | Standard |
Cable connection | Connection (m/m) |
Maximum image quality | 4K |
Max. Video resolution | 3840 x 2160 Pixels |
Max. video resolution standard | 4K |
Maximum frame rate | 50 Hz |
Inner conductor Material | Copper |
Cable Application | Monitor, Notebook, TV |
Shielding | Foil shielding, Full shielding |
Max. data transfer rate | 18 Gbit/s |
Connection A | HDMI (type A) |
Connection B | HDMI (type A) |
Plug type | Flat, Gold-plated contacts |
Color Connections | Black |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 30 m |
Weight | 1300 g |
