Best selling Shower systems from Schell
On this page you’ll find a ranking of the best Shower systems from Schell. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

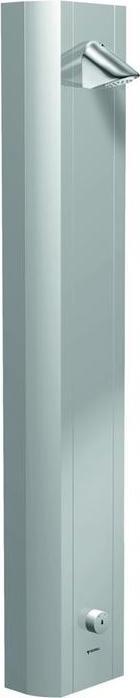

1. Schell Shower panel LINUS DP-SC-M m Shower head COM Mixed water Alu-anodised
Self-closing made of robust extruded aluminum profile with anodized surface and integrated shower connection - Type: Linus D-SC - easy to install and maintain thanks to the swiveling front cover - suitable for rear connections or for wall-mounted connections from above. Delivery includes: panel with pre-assembled LINUS shower connection with integrated self-closing cartridge SC, including pipe connection between the connection and the shower connection. Pipe connection between the connection and the shower head connection - SC operating handle - 2x backflow preventers - shower head flow rate 9 l/min pressure-independent - mounting material - connection accessories.
Further technical features:
- Supply connection: external thread
- Supply connection: 1/2 inch
- Temperature control: manual operation
- Automatic flushing cycle: No
- Shower operation: mechanical
- Min. pressure: 1 bar
- Min. flow (mixed water): 10 l/min
- Min. pressure: 10 bar flow (mixed water): 10 l/min
- With mounting material: Yes
- With hand shower: Yes
- With backflow prevention: Yes
- With switching unit: No
- Installation: wall
- Self-closing: Yes
- Depth: 115 mm
- Scald protection: No
- Material: Aluminum
- Max. pressure: 5 bar.

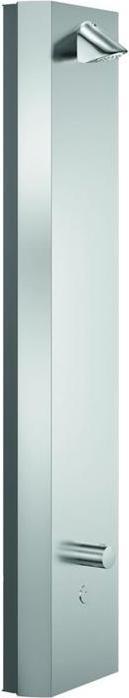

2. Schell Shower panel LINUS Inox DP-C-T M-water Therm. SWS brushed stainless steel
Integrated shower fitting triggered by CVD touch electronics with an automatic shut-off process. It offers the option of battery or mains operation and is suitable for integration with the SCHELL water management system SWS. The unit can be parameterized via SCHELL Single Control SSC and is easy to install and maintain thanks to its swiveling front. It allows for connections from the back or for wall-mounted connections from above.
The shower fitting features an integrated solenoid valve for thermal disinfection. Included in the delivery are an electronic self-closing wall-mounted shower panel, an operating button for the thermostat with a sleeve, and a lockable/unlockable temperature lock set to 38 °C. The CVD touch electronics are programmable and protected against splashes and water jets according to IP65. The thermostat complies with EN 1111 and includes a scald protection in case of a cold water supply failure.
Additional features include a 6 V solenoid valve for automatic thermal disinfection with SWS (according to DVGW worksheet W 551), two backflow preventers (EN 1717: EB), two pre-filters, and a COMFORT Flex shower head with adjustable tilt angle. The design is vandal-proof and includes soft jet and anti-limescale control knobs. Connection accessories with shut-off valves and mounting materials for wall installation are also included.
Further technical features:
- Connection type: External thread
- Connection size: 1/2 inch
- Temperature control: Thermostatic
- Automatic flushing cycle: Yes
- Shower operation: Electronic
- Minimum pressure: 1 bar
- Minimum flow rate (mixed water): 9 l/min
- With mounting material: Yes
- With overhead shower: Yes
- With backflow protection: Yes
- With switching device: No
- Installation: Wall
- Self-closing: Yes
- Depth: 80 mm
- Scald protection: Yes
- Material: Stainless steel
- Maximum pressure: 5 bar.
Shower systems
CHF1819.–
Schell Shower panel LINUS Inox DP-C-T M-water Therm. SWS brushed stainless steel
3. Schell Shower panel LINUS DP-SC-V m shower head low aerosol pre-m. W vc
Self-closing made of sturdy extruded aluminium profile with anodised surface and integrated shower fitting - type: Linus D-SC. Easy to install and service thanks to swivelling front shell. Suitable for connections from behind or for pre-wall connections from above.
Scope of delivery: panel with pre-mounted LINUS shower fitting with integrated self-closing cartridge SC including piping between fitting and shower fitting. Piping between fitting and shower head connection, SC actuating knob, 2 backflow preventers, shower head flow rate 9 l/min pressure-independent, fixing material, and connection accessories.
Further technical features:
- Supply connection: External thread
- Supply connection: 1/2 inch
- Temperature control type: manual operation
- Automatic rinsing cycle: No
- Shower operation: mechanical
- Min. pressure: 1 bar
- Min. flow (mixed water): 10 l/min
- Min. pressure: 10 bar flow (mixed water): 10 l/min
- With fixing material: Yes
- With overhead shower: Yes
- With backflow protection: Yes
- With change-over unit: No
- Mounting: Wall
- Self-closing: Yes
- Depth: 115 mm
- Anti-scald protection: No
- Material: Aluminium
- Max. pressure: 5 bar.
4. Schell Shower panel LINUS DP-C-T Shower head COMFORT Alu-anodised
CVD touch electronics - battery/mains operation - on/off/time-limit thermostatic stagnation flush - panel made of aluminium - easy to install and service thanks to swivelling front shell - suitable for connections from behind or for pre-wall connections from above.
Scope of delivery: panel with pre-mounted LINUS shower fitting with integrated solenoid valve 6 V and thermostatic cartridge including piping between fitting and shower head connection - splash-proof touch electronics - thermostatic cartridge with safety lock in case of cold water failure - actuating knob thermostatic valve with hot water lock 38 °C - locking disc for maximum temperature limitation (scald protection) - 2x backflow preventer - shower head flow rate 9 l/min pressure-independent - fixing material - connection accessories.
Further technical features:
- Flow connection: External thread
- Supply connection: 1/2 inch
- Temperature control type: thermostatic
- Automatic rinsing cycle: Yes
- Shower operation: electronic
- Min. pressure: 1 bar
- Min. flow rate (mixed water): 15 l/min
- With fixing material: Yes
- With overhead shower: No
- With backflow protection: Yes
- With change-over unit: Yes
- Mounting: Wall
- Self-closing: Yes
- Depth: 115 mm
- Anti-scald protection: Yes
- Material: Aluminium
- Max. pressure: 5 bar.
5. Schell Shower panel LINUS DP-SC-M m Shower head low aerosol M water vc
Self-closing made of sturdy extruded aluminium profile with anodised surface and integrated shower fitting - type: Linus D-SC. Easy to install and service thanks to swivelling front shell. Suitable for connections from behind or for pre-wall connections from above.
Scope of delivery: panel with pre-mounted LINUS shower fitting with integrated self-closing cartridge SC including piping between fitting and shower fitting. Piping between fitting and shower head connection, SC actuating knob, 2 backflow preventers, shower head flow rate 9 l/min pressure-independent, fixing material, and connection accessories.
Further technical features:
- Supply connection: External thread
- Supply connection: 1/2 inch
- Temperature control type: manual operation
- Automatic rinsing cycle: No
- Shower operation: mechanical
- Min. pressure: 1 bar
- Min. flow (mixed water): 10 l/min
- Min. pressure: 10 bar flow (mixed water): 10 l/min
- With fixing material: Yes
- With overhead shower: Yes
- With backflow protection: Yes
- With change-over unit: No
- Mounting: Wall
- Self-closing: Yes
- Depth: 115 mm
- Anti-scald protection: No
- Material: Aluminium
- Max. pressure: 5 bar.
6. Schell Shower panel LINUS Inox CVD-T, TD manual TD brushed stainless steel
Integrated shower fitting, triggered by CVD touch electronics with an automatic shut-off process. It offers the option of battery operation or mains operation and is suitable for networking with the SCHELL water management system SWS. The unit can be parameterized via SCHELL Single Control SSC and is prepared for manual thermal disinfection. Installation and maintenance are easy thanks to the swiveling front, and it is suitable for rear connections or wall-mounted connections from above.
Included in the delivery are an electronic, self-closing wall-mounted shower panel, an operating button for the thermostat with a protective sleeve, and a lockable temperature protection at 38 °C. The CVD touch electronics are programmable and splash and spray water protected with an IP65 rating. The thermostat complies with EN 1111 and features a scald protection in case of cold water supply failure.
Additional features include a 6 V solenoid valve, a 12 V solenoid valve for manual thermal disinfection (according to DVGW worksheet W 551), two backflow preventers (EN 1717: EB), two pre-filters, and a COMFORT Flex shower head with an adjustable tilt angle. The unit is vandal-proof and includes soft-jet and anti-limescale buttons, connection accessories with shut-off valves, and mounting materials for wall installation.
Further technical features:
- Supply connection: External thread
- Supply connection: 1/2 inch
- Temperature control type: Thermostatic
- Automatic flushing cycle: Yes
- Shower operation: Electronic
- Minimum pressure: 1 bar
- Minimum flow rate (mixed water): 9 l/min
- With mounting material: Yes
- With overhead shower: Yes
- With backflow prevention: Yes
- With switching device: No
- Installation: Wall
- Self-closing: Yes
- Depth: 80 mm
- Scald protection: Yes
- Material: Stainless steel
- Maximum pressure: 5 bar.
7. Schell Shower panel LINUS DP-C-T Shower head COMFORT, MV-TD Anodised aluminium
CVD touch electronics - battery/mains operation - on/off/time-limit thermostatic stagnation flush - panel made of aluminium - easy to install and service thanks to swivelling front shell - suitable for connections from behind or for pre-wall connections from above. Scope of delivery: panel with pre-mounted LINUS shower fitting and thermostatic cartridge including piping between fitting and thermostatic cartridge, piping between fitting and shower head connection - splash-proof touch electronics - thermostatic cartridge with safety lock in case of cold water failure - thermostatic valve actuating knob with hot water lock at 38 °C - locking disc for maximum temperature limit (scalding protection) - 2 backflow preventers - thermostatic valve with hot water lock at 38 °C - thermostatic valve with safety lock in case of cold water failure - 2 non-return valves - shower head flow rate 9 l/min, pressure-independent - fixing material - connection accessories - with pre-mounted monostable solenoid valve 12 V for manual thermal disinfection (not with SWS).
Further technical features:
- Flow connection: External thread
- Supply connection: 1/2 inch
- Temperature control type: thermostatic
- Automatic rinsing cycle: Yes
- Shower operation: electronic
- Minimum pressure: 1 bar
- Minimum flow (mixed water): 15 l/min
- With fixing material: Yes
- With overhead shower: Yes
- With backflow protection: Yes
- With change-over unit: No
- Mounting: Wall
- Self-closing: Yes
- Depth: 115 mm
- Anti-scald protection: Yes
- Material: Aluminium
- Maximum pressure: 5 bar.
Shower systems
CHF1309.–
Schell Shower panel LINUS DP-C-T Shower head COMFORT, MV-TD Anodised aluminium
8. Schell Shower panel LINUS DP-C-T Low-aerosol shower head, MV-TD Anodised aluminium
CVD touch electronics - battery/mains operation - on/off/time-limit thermostatic stagnation flush - panel made of aluminium - easy to install and service thanks to swivelling front shell - suitable for connections from behind or for pre-wall connections from above. Scope of delivery: panel with pre-mounted LINUS shower fitting and thermostatic cartridge including piping between fitting and thermostatic cartridge, piping between fitting and shower head connection - splash-proof touch electronics - thermostatic cartridge with safety lock in case of cold water failure - thermostatic valve actuating knob with hot water lock at 38 °C - locking disc for maximum temperature limit (scalding protection) - 2x backflow preventer - thermostatic valve with hot water lock at 38 °C - thermostatic valve with safety lock in case of cold water failure - 2x non-return valves - shower head flow rate 9 l/min, pressure-independent - fixing material - connection accessories - with pre-mounted monostable solenoid valve 12 V for manual thermal disinfection (not with SWS).
Further technical features:
- Flow connection: External thread
- Supply connection: 1/2 inch
- Temperature control type: thermostatic
- Automatic rinsing cycle: Yes
- Shower operation: mechanical
- Min. pressure: 1 bar
- Min. flow (mixed water): 15 l/min
- With fixing material: Yes
- With overhead shower: Yes
- With backflow protection: Yes
- With change-over unit: No
- Mounting: Wall
- Self-closing: Yes
- Depth: 115 mm
- Anti-scald protection: Yes
- Material: Aluminium
- Max. pressure: 5 bar.
Shower systems
CHF1329.–
Schell Shower panel LINUS DP-C-T Low-aerosol shower head, MV-TD Anodised aluminium

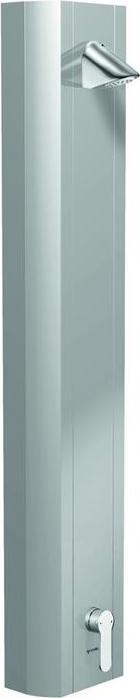

9. Schell Shower panel LINUS DP-EH-M m Shower head COM Mixed water Alu-anodised
Single lever made of stable aluminum extrusion profile with anodized surface and integrated shower fitting. Type: Linus DP-EH-M. Easy to install and service due to the swiveling front cover. Suitable for rear connections or for wall-mounted connections from above. Delivery includes: panel with pre-assembled LINUS shower fitting EH-M with integrated ceramic cartridge, including piping between the fitting and shower head connection, 2 backflow preventers, shower head, mounting materials, and connection accessories.
Additional technical specifications:
- Supply connection: external thread
- Supply connection size: 1/2 inch
- Temperature control type: manual operation
- Automatic flushing cycle: No
- Shower operation: mechanical
- Min. pressure: 1 bar
- Min. flow rate (mixed water): 9 l/min
- Includes mounting materials: Yes
- Includes hand shower: Yes
- Includes backflow prevention: Yes
- Includes diverter: No
- Installation: wall-mounted
- Self-closing: No
- Depth: 115 mm
- Scald protection: No
- Material: aluminum
- Max. pressure: 5 bar.
Shower systems
CHF1349.–
Schell Shower panel LINUS DP-EH-M m Shower head COM Mixed water Alu-anodised
10. Schell Shower panel LINUS DP-C-T Shower head low-aerosol TD-SWS Anodised aluminium
CVD touch electronics · Battery/ mains operation · On/Off/Time limit thermostat stagnation flushing · Aluminum panel · Easy to install and service with a swiveling front cover · Suitable for rear connections or for top wall connections · Delivery includes: panel with pre-assembled LINUS shower mixer and thermostat cartridge including piping between the mixer and shower head connection · Splash-proof touch electronics · Thermostat cartridge with safety lock in case of cold water failure · Operation button for thermostat valve with hot water lock at 38 °C · Locking disk for maximum temperature limitation (burn protection) · 2 backflow preventers · Shower head flow rate 9 l/min independent of pressure · Mounting materials · Connection accessories · With pre-assembled bistable solenoid valve 6 V for automatic thermal disinfection with SWS. Additional technical specifications: · Supply connection: external thread · Supply connection size: 1/2 inch · Type of temperature control: thermostatic · Automatic flushing cycle: Yes · Shower operation: electronic · Min. pressure: 1 bar · Min. flow rate (mixed water): 15 l/min · Includes mounting materials: Yes · Includes overhead shower: Yes · Includes backflow prevention: Yes · Includes switching unit: No · Installation: wall · Self-closing: Yes · Depth: 115 mm · Burn protection: Yes · Material: Aluminum · Max. pressure: 5 bar.
Shower systems
CHF1849.–
Schell Shower panel LINUS DP-C-T Shower head low-aerosol TD-SWS Anodised aluminium
