Best selling Electrical enclosures from OBO Bettermann
On this page you'll find a ranking of the best OBO Bettermann products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. OBO Bettermann Small distribution board
The OBO small distribution board series ensures safe power distribution both indoors and outdoors. The surface-mounted small distribution boards meet all requirements according to IEC 439-3 and are available in four different sizes with three to twelve division units. There are three equipment variants: with screw terminals, with plug terminals, and without terminals. All sizes and equipment variants are available in two materials. All small distribution boards come with a pre-mounted 35 mm DIN rail. The small distribution boards with terminal strips also include an accessory set, which contains, among other things, a sheet of stickers. The self-adhesive pictograms eliminate the often tedious labeling of individual division units. Should labeling be necessary, corresponding stickers are also available on the sticker sheet. The high degree of protection (IP66) and the robust construction (IK07 at -25 °C) ensure safety even in challenging environmental conditions.

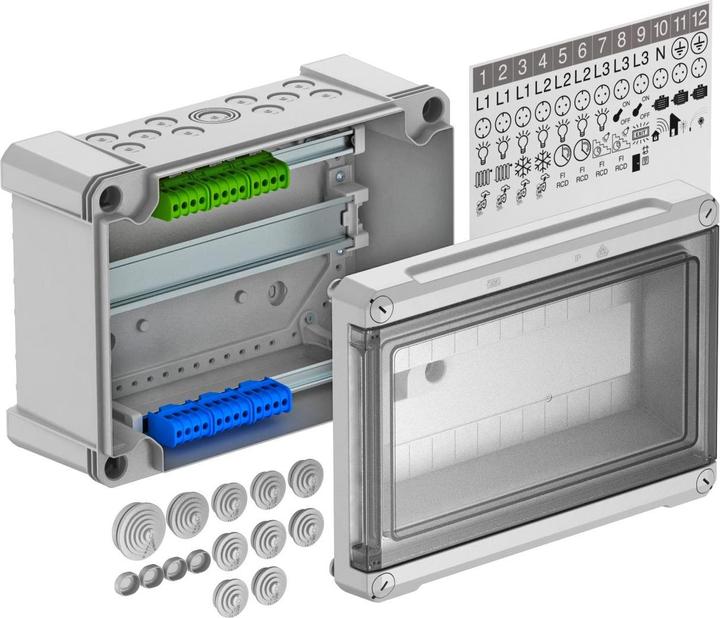

2. OBO Bettermann OBO small distributors
OBO Bettermann SDB 12 PS small distributor
Manufacturer: OBO Bettermann
Designation: Small distributor for max. 12 TE
Type: SDB 12 PS
Mounting type: Surface-mounted
Number of rows: 1
Width in division units: 12
Type of cover: Cover version
Cover: with cut-out
Transparent cover/door: yes
Material of housing: Plastic
Height: 125 mm
Width: 202 mm
Depth: 125 mm
DIN rail: yes
With mounting plate: no
Mounting option: yes
EMC version: no
Colour: grey
RAL number: 7035
Protection class (IP): IP66
With lock: no
OBO Bettermann SDB 12 PS small distribution board: further details
Small distribution board with terminal strip for surface mounting, for power sub-distribution indoors and in protected outdoor areas, in accordance with IEC 439-3. With pre-mounted 35 mm top-hat rail. Protection class IP66 and degree of protection IK06. Transparent cover for screwing, with cut-out. Protective insulation for a maximum of 12 pitch units. Terminal strip set consisting of: 3 PE/N terminals each with 4x 16 mm² screw terminals, mini top-hat rail, assembly instructions and fixing kit, identification labels for connected loads, 8 elastic cable glands Ø 20 mm for cable diameters 0-17 mm, 1 elastic cable gland Ø 25 mm for cable diameters 0-17 mm, 1 elastic cable gland Ø 25 mm for cable diameters 0-17 mm, 1 elastic cable gland Ø 20 mm for cable diameters 0-17 mm, 1 elastic cable gland Ø 20 mm for cable diameters 0-17 mm, 1 elastic cable gland Ø 20 mm for cable diameters 0-17 mm, 1 elastic cable gland Ø 25 mm for cable diameters 0-22 mm, 1 elastic cable gland Ø 32 mm for cable diameters 0-28 mm, 10 knock-out openings Ø 20 mm each top and bottom, 1 combined knock-out opening Ø 20/25/32 mm each top and bottom, 4 screw caps.
3. OBO Bettermann Small distributor for max.
The OBO small distribution board series ensures safe power distribution both indoors and outdoors. The surface-mounted small distribution boards meet all requirements according to IEC 439-3 and are available in four different sizes with three to twelve division units. There are three equipment variants: with screw terminals, with plug terminals, and without terminals. All sizes and equipment variants are available in two materials. All small distribution boards come with a pre-mounted 35 mm DIN rail. The distribution boards with terminal strips also include an accessory set, which contains, among other things, a sheet of stickers. The self-adhesive pictograms eliminate the often tedious labeling of the individual division units. Should labeling be necessary, corresponding stickers are also available on the sticker sheet. The high protection class (IP66) and robust construction (IK07 at -25°C) ensure reliable use even in challenging environmental conditions.
4. OBO Bettermann Small distributor for max. 12
The OBO small distribution board series ensures safe power distribution for both indoor and outdoor use. The surface-mounted small distribution boards meet all requirements according to IEC 439-3 and are available in four different sizes with three to twelve division units. There are three equipment variants: with screw terminals, with plug terminals, and without terminals. All sizes and equipment variants are available in two materials. All small distribution boards come with a pre-mounted 35 mm hat profile mounting rail. The distribution boards with terminal strips also include an accessory set, which features a sticker sheet among other items. The self-adhesive pictograms eliminate the often tedious labeling of individual division units. Should labeling be necessary, corresponding stickers are also available on the sticker sheet. The high protection class (IP66) and robust construction (IK07 at -25°C) ensure reliable operation even in challenging environmental conditions.

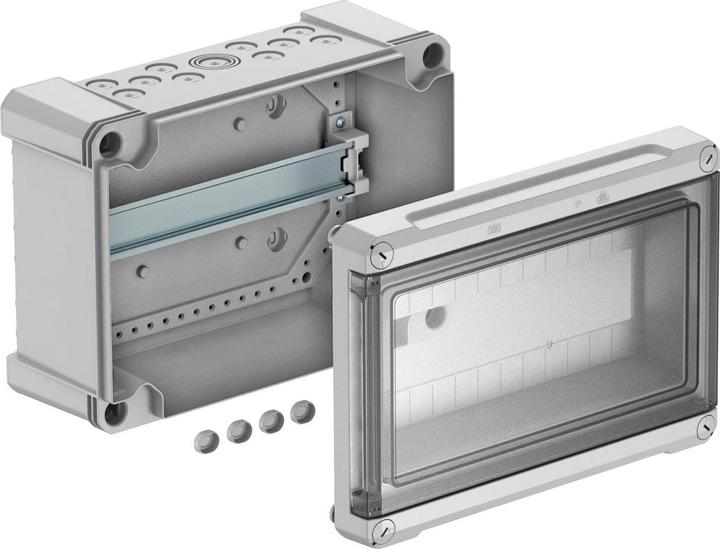

5. OBO Bettermann OBO SDB 12L PS Small distribution board without terminal strip, for 12 TE light grey
Small distribution board for surface mounting, designed for electrical sub-distribution in indoor and protected outdoor areas, in accordance with IEC 439-3. With pre-mounted 35 mm DIN rail. Protection class IP66 and impact resistance rating IK06. Transparent screw-on lid with cut-out. Protection insulated for a maximum of 12 modular units. 11 knock-out openings Ø 20 mm at the top and bottom. 1 combined knock-out opening Ø 20/25/32 mm at the top and bottom. 4 screw cover caps.
Electrical enclosures
CHF51.90
OBO Bettermann OBO SDB 12L PS Small distribution board without terminal strip, for 12 TE light grey

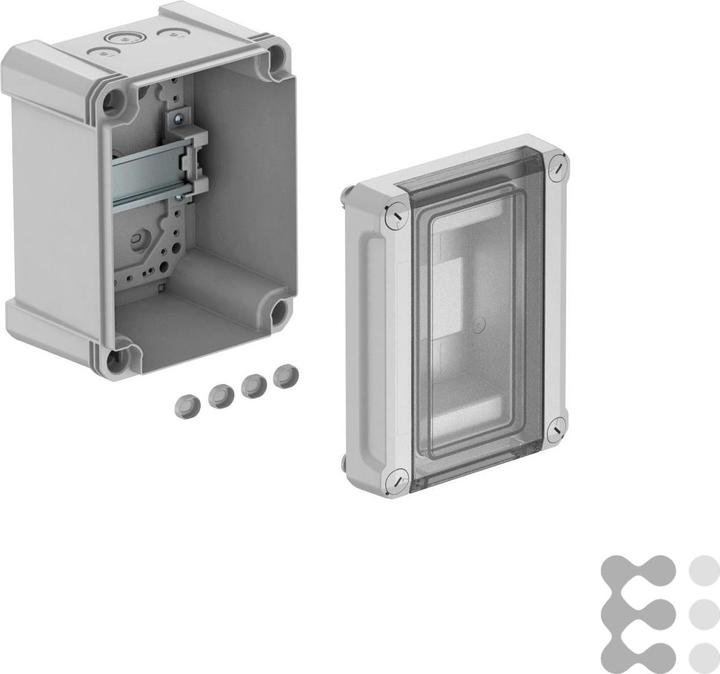

6. OBO Bettermann Small distributor o. Clamp for
The OBO small distribution board series ensures safe power distribution in both indoor and outdoor areas. The surface-mounted small distribution boards meet all requirements according to IEC 439-3 and are available in four different sizes with three to twelve division units. There are three equipment variants: with screw terminals, with plug terminals, and without terminals. All sizes and equipment variants are available in two materials. All small distribution boards come with a pre-mounted 35 mm hat profile mounting rail. The small distribution boards with terminal strips also include an accessory set, which features a sticker sheet among other items. The self-adhesive pictograms eliminate the often tedious task of labeling the individual division units. Should labeling be necessary, corresponding stickers are also available on the sticker sheet. The high protection class (IP66) and robust construction (IK07 at -25 °C) ensure safety even in challenging environmental conditions.

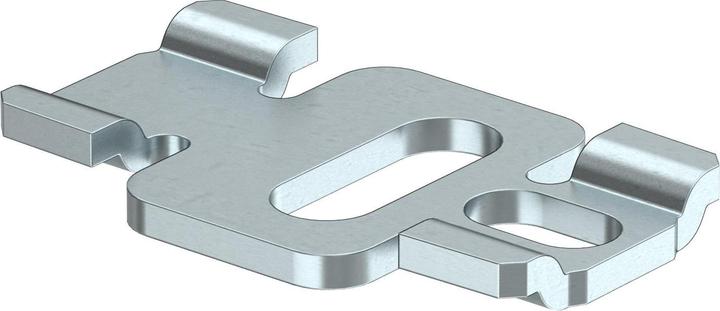

7. OBO Bettermann OBO external fixing connection
OBO Bettermann Outdoor Mounting Connection AV-S
Manufacturer: OBO Bettermann
Designation: Outdoor Mounting Connection
Type: AV-S
Material: stainless steel
Surface Protection: untreated
With the practical outdoor mounting or connection, the cable boxes and small distributors of the S and SDB series can be easily attached to the wall. By mounting outside the clamping area, voltage transfer is excluded. The outdoor mounting or connection can also be used to connect multiple boxes together. Time savings due to the reduced number of required mounting holes.
8. OBO Bettermann OBO SDB 12L PC Small distribution board without terminal strip, for 12 TE 286x202x125, PC, light
The OBO SDB 12L PC small distribution board is a reliable solution for power sub-distribution in both indoor and outdoor environments. It meets the requirements according to IEC 439-3 and offers a protective insulated construction for up to 12 distribution units. The small distribution board is designed for surface mounting and features a pre-mounted 35 mm DIN rail, allowing for easy installation. With an IP66 protection rating, it is safeguarded against the ingress of water and dust, while the IK06 protection grade ensures a certain level of resistance to mechanical impacts. The transparent cover, secured with screws, allows for easy visual inspection of the installed components. Additionally, the package includes 4 screw caps to ensure a clean and secure installation.
- IP66 protection rating for optimal protection against water and dust
- IK06 protection grade for enhanced mechanical resistance
- Pre-mounted 35 mm DIN rail for easy installation
- Includes 4 screw caps for a tidy installation
- Various knock-out openings for flexible cable entries.
Electrical enclosures
CHF63.90
OBO Bettermann OBO SDB 12L PC Small distribution board without terminal strip, for 12 TE 286x202x125, PC, light
9. OBO Bettermann OBO SDB 09L PC Small distribution board without terminal strip, for 9 TE 240x191x125, PC, lightg
The OBO SDB 09L PC small distribution board is a reliable solution for power sub-distribution in both indoor and outdoor areas. It meets the requirements according to IEC 439-3 and features a robust construction with an IP66 protection rating, safeguarding it against dust and water. The small distribution board is designed for surface mounting and comes with a pre-mounted 35 mm DIN rail for easy installation. The transparent cover is screwable, providing convenient access to the electrical components. With space for up to 9 modular units and several knockouts, this small distribution board is versatile and suitable for various applications. The included screw caps ensure a clean and secure installation.
- IP66 protection rating for optimal dust and water protection
- Robust design with IK06 protection class
- Pre-mounted 35 mm DIN rail for easy installation
- Transparent cover with cutout for easy access
- Includes 4 screw caps for a clean installation.
Electrical enclosures
CHF43.90
OBO Bettermann OBO SDB 09L PC Small distribution board without terminal strip, for 9 TE 240x191x125, PC, lightg
