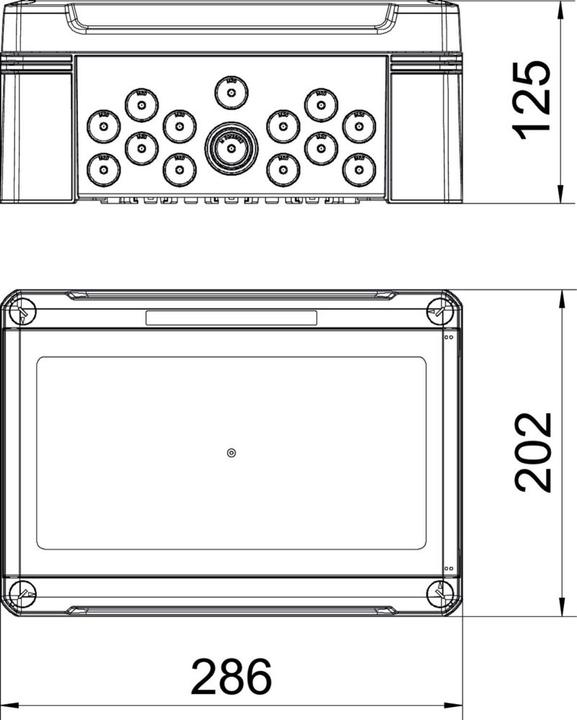

OBO Bettermann OBO SDB 12L PC Small distribution board without terminal strip, for 12 TE 286x202x125, PC, light
Product details
The OBO SDB 12L PC small distribution board is a reliable solution for power sub-distribution in both indoor and outdoor environments. It meets the requirements according to IEC 439-3 and offers a protective insulated construction for up to 12 distribution units. The small distribution board is designed for surface mounting and features a pre-mounted 35 mm DIN rail, allowing for easy installation. With an IP66 protection rating, it is safeguarded against the ingress of water and dust, while the IK06 protection grade ensures a certain level of resistance to mechanical impacts. The transparent cover, secured with screws, allows for easy visual inspection of the installed components. Additionally, the package includes 4 screw caps to ensure a clean and secure installation.
- IP66 protection rating for optimal protection against water and dust
- IK06 protection grade for enhanced mechanical resistance
- Pre-mounted 35 mm DIN rail for easy installation
- Includes 4 screw caps for a tidy installation
- Various knock-out openings for flexible cable entries.
Distribution cabinet type | Small distribution board |
mounting style | Finery |
Length | 12.50 cm |
Width | 20.20 cm |
Height | 12.50 cm |
Item number | 32151142 |
Manufacturer | OBO Bettermann |
Category | Electrical enclosures |
Manufacturer no. | 2008872 |
Release date | 16.11.2022 |
Colour | Grey |
Exact colour description | Housing grey RAL 7035 |
Material group | Plastic |
Material | Plastic |
Distribution cabinet type | Small distribution board |
mounting style | Finery |
Protection type (IP code) | IP66 |
Country of origin | Germany, Hungary |
CO₂-Emission | |
Climate contribution |
Length | 12.50 cm |
Width | 20.20 cm |
Height | 12.50 cm |
