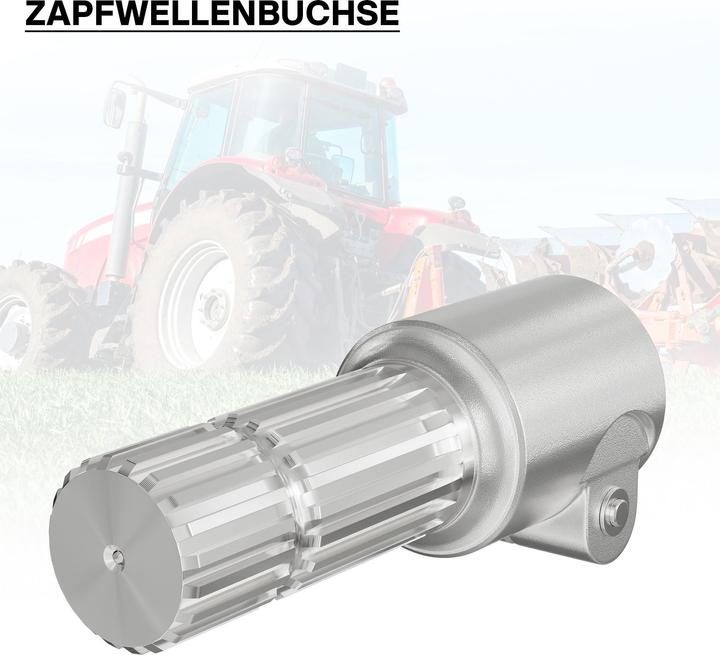

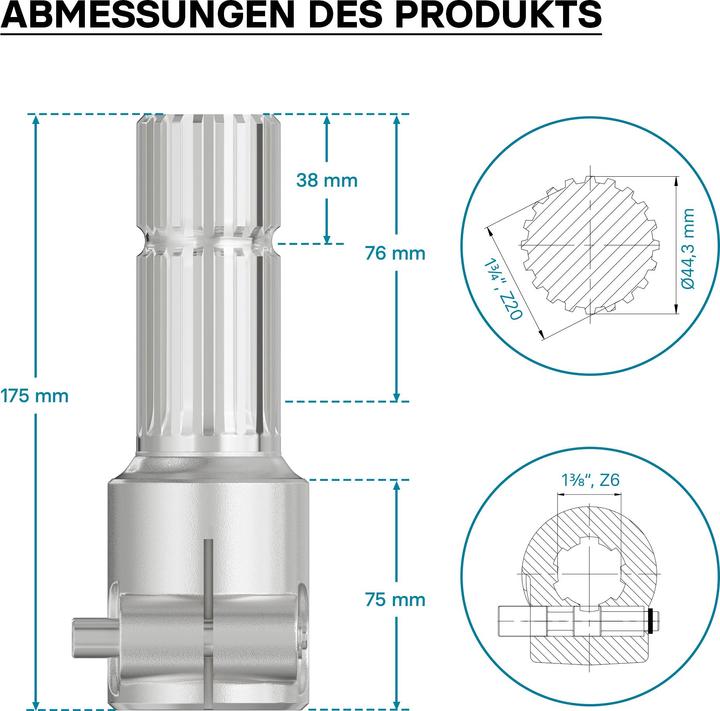

Wiltec Adaptor Sleeve for PTO Shaft 175 mm w/ 1 3/8" 6N Spline Housing and 1 3/4" 20T Output Shaf

A high-quality drive shaft or power take-off (PTO) shaft is an essential component in agriculture, as it transmits the tractor's power to various agricultural implements.

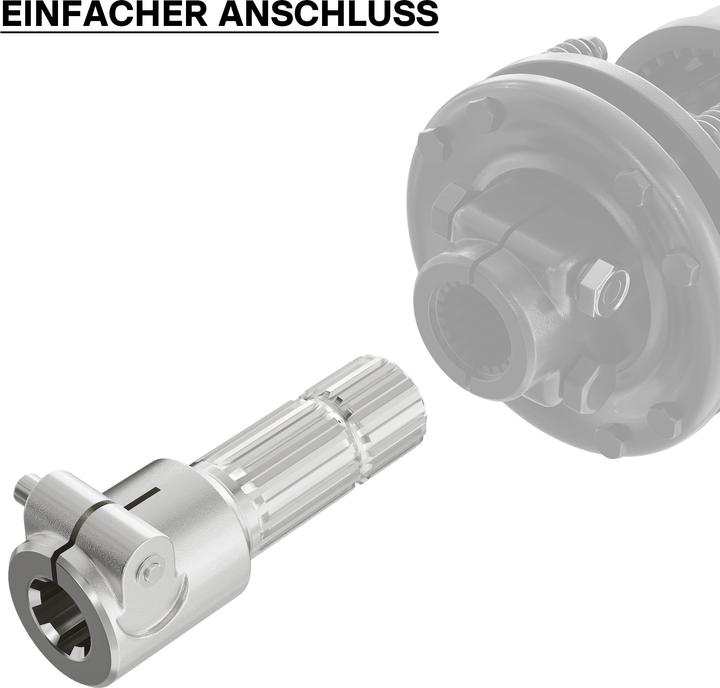

A crucial part of power transmission is the PTO shaft bushing, which serves as an adapter with two different connection sides. One side features a male or external profile, while the other side has a female or internal profile. The connection piece is designed to connect the tractor's PTO shaft and the drive shaft, allowing an attached working machine to be powered. The piece is pushed onto both sides, and the keyways of the internal profile prevent the shaft from slipping. The number of teeth and grooves in the internal and external profiles of the bushing varies. We offer bushings with 6, 20, and 21 teeth/grooves.

To find the right PTO shaft bushing, please check the specified technical data beforehand and ensure it matches that of the PTO shaft, tractor, and attachment.

We would also like to draw your attention to our drive shafts, couplings, freewheel couplings, and key shafts in various designs, which you can purchase from us. This allows you to assemble your entire power transmission unit and find spare parts. There is definitely something that meets the requirements of your equipment.

Safety instructions for PTO shafts:

• All shafts, complete shafts, and replacement shafts, as well as all drive shaft adapters and components and their locking devices, may potentially catch or entangle clothing worn on the body during operation.
• Always maintain a sufficient safety distance and use additional protective devices appropriate for the application! Wear close-fitting work clothing!
• Ensure that no one is near the drive shaft while it is in operation.
