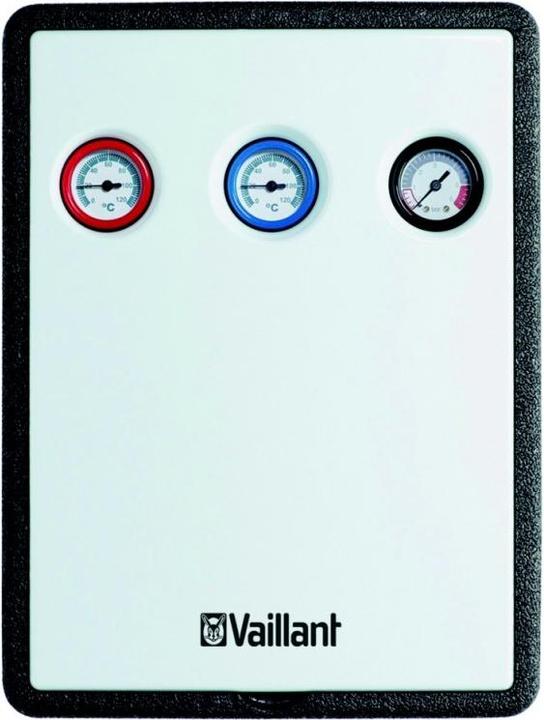

Vaillant Solar station auroFLOW VMS 70 Two-line solar station

Vaillant two-line solar station VMS 70

Manufacturer: Vaillant
Designation: Two-line solar station
Type: VMS 70
With circulation pump: Yes
Self-venting circulation pump: No
Head of circulation pump: 10 m
Flow rate measuring section: No
With safety valve: Yes
With pressure gauge: Yes
With thermometer: Yes
With non-return valve: No
With connection for expansion vessel: Yes
With automatic venting: No
Thermally insulated: Yes
With wall bracket: No
With filling and draining tap: Yes
Max. working pressure: 6 bar
Max. medium temperature (continuous operation): 130 °C
Max. glycol mixture: 42%
Height: 325 mm
Width: 245 mm
Depth: 175 mm
Collector connection: Other size
Collector connection: 3/4 inch (20)
Cylinder connection: Other size
Expansion vessel connection: 3/4 inch (20)
Fittings material: Brass
With electronic solar controller: No
Electronic solar controller expandable: No
With heat exchanger: No
Gravity circuit lock: Yes

Further details:
Solar station auroFLOW VMS 70
Equipment features: Two-line solar station up to 70 m² collector area
High-efficiency solar circulation pump with PWM signal
Integrated filling and draining device
Air separator with air drain valve
Shut-off ball valves with integrated gravity brake
Non-return valve
2 thermometers
1 manometer
Pipe connections 3/4 flat-sealing
Safety valve 6 bar up to max. 70 m² collector area
Can be used for auroTHERM, auroTHERM exclusiv, auroTHERM plus

Note: The storage tank temperature limiter is mandatory.
