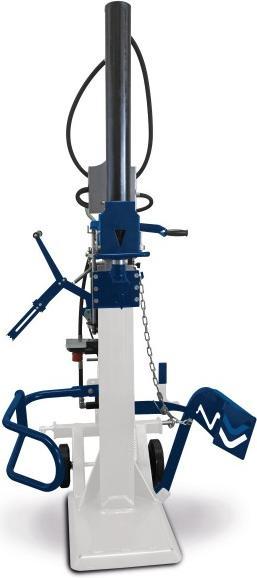

Stürmer Holzkraft firewood splitter HSE 30-1100 ZE combined drive 5981031

Vertical design for splitting short and meter wood. Robust and solid construction. Impact and scratch-resistant due to high-quality powder coating. Quick, tool-free height adjustment for splitting. Low base plate for easy, fatigue-free loading of large logs. Phase inverter on all 400 V models. Convenient transport with hand-pull drawbar through standard chassis with large pneumatic wheels and additional support wheel. Space-saving storage with easily lowerable cylinder. Powerful industrial hydraulic system. Two-hand safety control with splitting material holder.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 1050 mm
Width/Depth (Product) approx. 1700 mm
Height (Product) approx. 2500 mm
Weight (Net) approx. 373.1 kg

Drive:
PTO speed 540 min¯¹
Rated power 5.5 kW

Electrical Data:
Connection voltage 400 V
Mains frequency 50 Hz

Device Data:
Splitting force max. 26.1 t
Cylinder stroke max. 880 mm
Splitting length min. 560 mm
Splitting length max. 1100 mm
Splitting material diameter min. 80 mm
Splitting material diameter max. 400 mm
Forward speed(s) 3.7 – 12.5 cm/s
Return speed 6.7 cm/s

Noise Emission:
Sound pressure level ? 80 dB(A)

Hydraulic System:
Tank capacity hydraulic oil 30 l.
