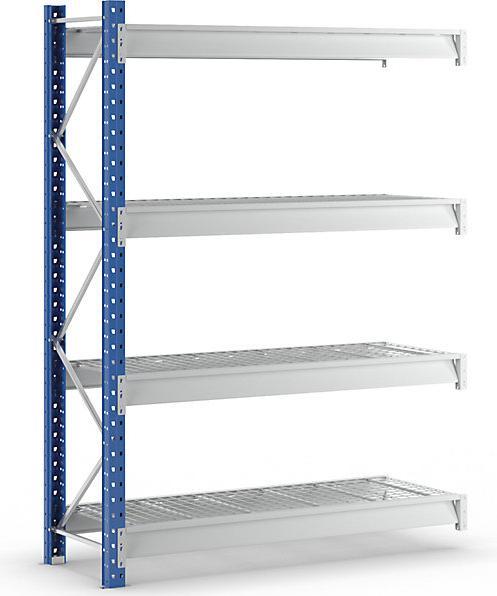

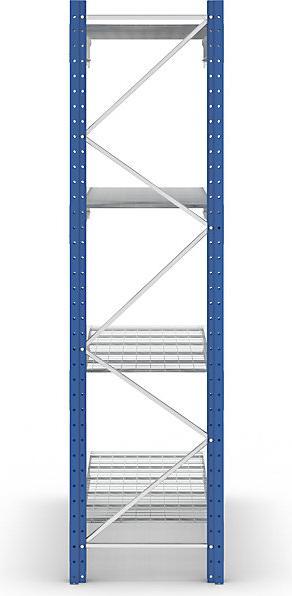

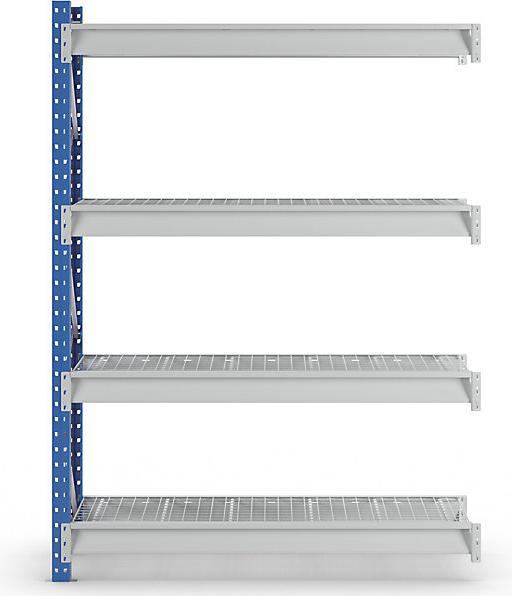

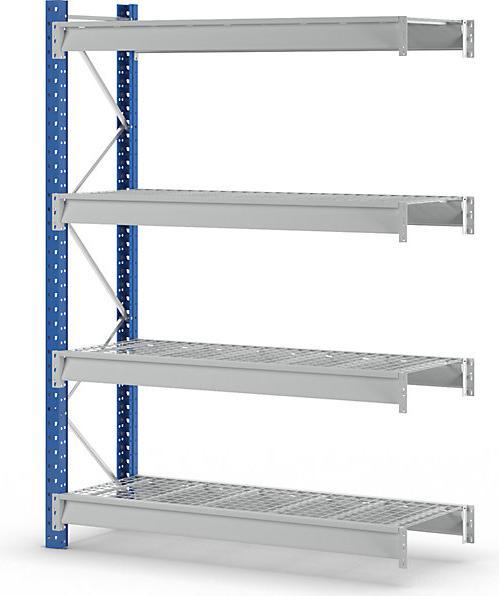

kaiserkraft Heavy Duty Large Shelf

Robust large shelving unit with wire mesh support modules, dimensions 2996 x 2330 x 800 mm, extension shelf. Designed for the manual storage of bulky and heavy goods. The beam can be assembled and adjusted without screws. Manufactured in accordance with the guidelines and regulations of the European FEM 10.2.06 and Eurocode III.

Width of the base shelf - without base plates: shelf width + 100 mm; with base plates: shelf width + 160 mm. Width of the extension shelf - without base plates: shelf width + 50 mm; with base plates: shelf width + 80 mm. Shelf depth including base plates: shelf depth + 10 mm. The support frame consists of 2 steel posts, 1.5 mm thick, coated in blue RAL 5010, with a "bottle profile" of 50 x 50 mm. Support frame cross beams and diagonals made of galvanized C-profile, 25 x 15 mm, are bolted to the posts. Galvanized base plates for floor mounting, 3 mm high. Screws and dowels are available on-site. The floor adjustment grid is 50 mm.

The shelf levels feature a beam with a Z-profile, coated in light gray RAL 7035. Three hooks with safety pins are included for mounting the beams. Wire mesh support modules are also coated in light gray RAL 7035. The safe load values apply with even load distribution. Additional levels are possible as long as the specified maximum field load is adhered to.
