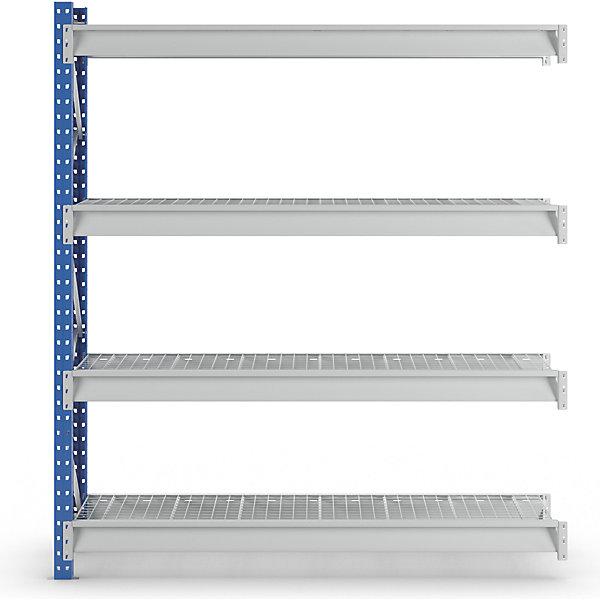

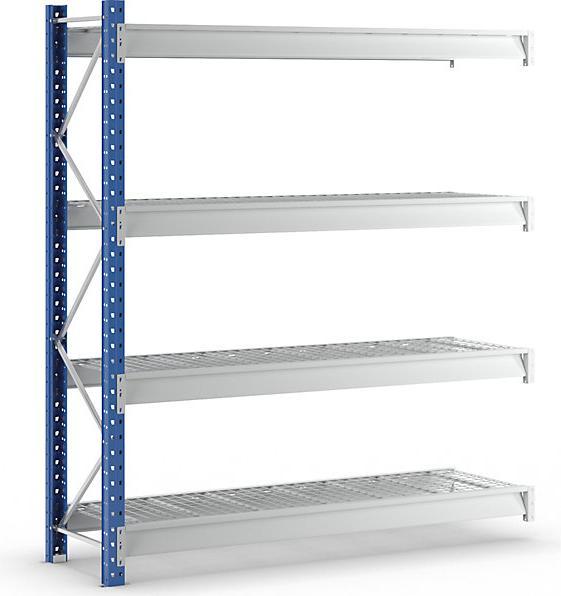

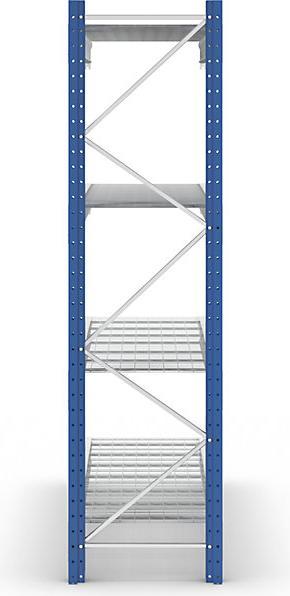

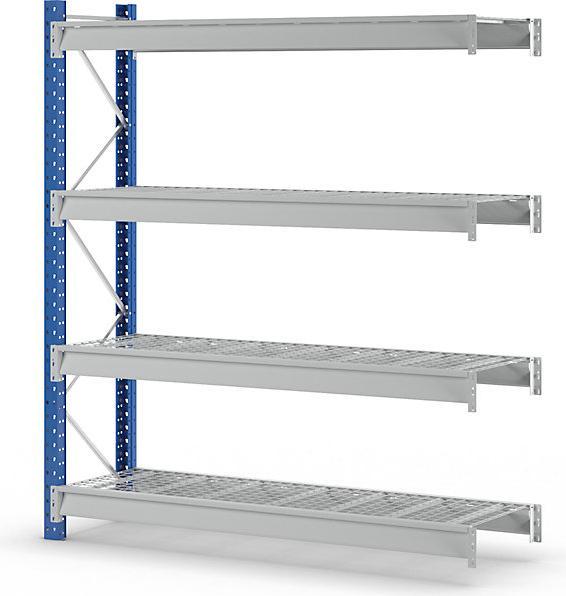

kaiserkraft Heavy Duty Large Shelf

Heavy-duty shelving unit with large shelves and wire mesh support modules, dimensions 2996 x 2780 x 800 mm, extension shelf. Designed for the manual storage of bulky and heavy goods. The beams can be mounted and adjusted without screws. Manufactured in accordance with the guidelines and regulations of the European FEM 10.2.06 and Eurocode III.

Width of the base shelf - without foot plates: shelf width + 100 mm; with foot plates: shelf width + 160 mm. Width of the extension shelf - without foot plates: shelf width + 50 mm; with foot plates: shelf width + 80 mm. The shelf recess including foot plates is shelf recess + 10 mm.

The support frame consists of 2 steel posts with a thickness of 1.5 mm, powder-coated in blue RAL 5010. The "bottle profile" measures 50 x 50 mm. The cross braces and diagonals of the support frame are made of galvanized C-profile, 25 x 15 mm, and are bolted to the posts. Galvanized foot plates for floor anchoring are 3 mm high. Screws and dowels are available on-site. Floor adjustment is done in increments of 50 mm.

The shelf levels feature beams with Z-profile, powder-coated in light gray RAL 7035. There are 3 suspension hooks with locking pins for mounting the shelf supports. The wire mesh support modules are also powder-coated in light gray RAL 7035. The maximum load values apply with even load distribution. Additional levels are possible as long as the specified maximum shelf load is adhered to.
