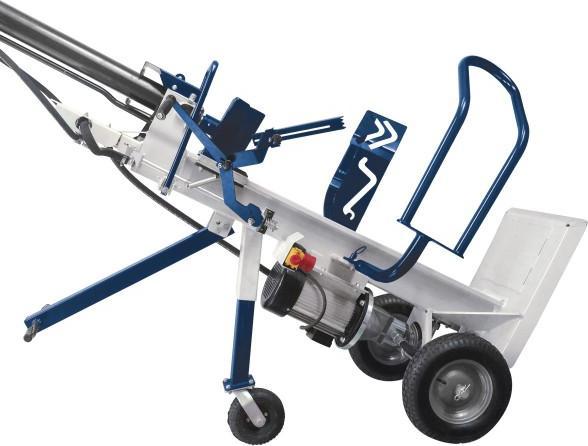

Holzkraft Firewood splitter HSE 22-1100 400V

Vertical design for splitting short and meter-long wood. Low base plate for easy, fatigue-free loading of large logs. Mechanical log lifting device positions heavy logs in a back-friendly manner. Equipped with a split wood catch bracket. Quick, tool-free adjustment of splitting height. Powerful industrial hydraulic system. Phase converter for all 400 V models. Two-hand safety switch. Convenient transport with a hand-drawn drawbar through the standard chassis with large pneumatic wheels and an additional support wheel. Impact and scratch-resistant due to high-quality powder coating. Space-saving storage thanks to the easily lowerable cylinder.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 1050 mm
Width/Depth (Product) approx. 1550 mm
Height (Product) approx. 2500 mm
Weight (Net) approx. 296.5 kg

Drive:
Drive Type: Electric Motor
Rated Power: 5.1 kW

Electrical Data:
Connection Voltage: 400 V
Mains Frequency: 50 Hz

Device Data:
Max Splitting Force: 23.4 t
Max Cylinder Stroke: 880 mm
Min Splitting Length: 560 mm
Max Splitting Length: 1100 mm
Min Splitting Diameter: 80 mm
Max Splitting Diameter: 350 mm
Forward Speed(s): 4.3 – 10.5 cm/s
Return Speed: 7.5 cm/s

Noise Emission:
Sound Pressure Level: ? 80 dB(A)

Hydraulic System:
Tank Capacity Hydraulic Oil: 24 l.
