Hager Weekly time switch 1changeover contact EG103V 16A 2PLE 12/24V digital

Ratings
BrandMore from Hager
Delivered between Mon, 2.3. and Sat, 14.3.
free shipping

Nominal voltage2

Product details

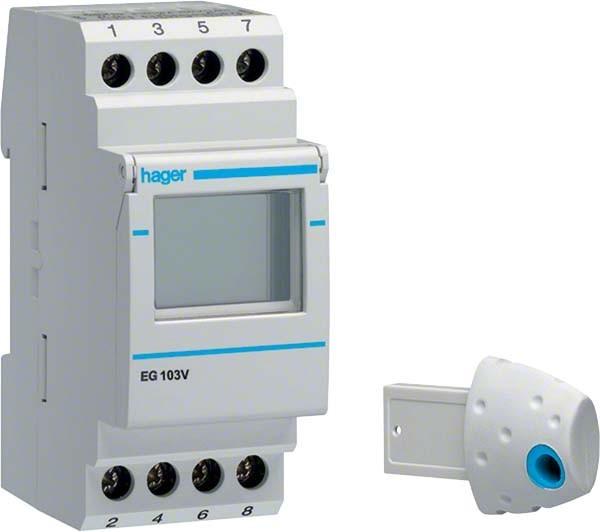

The Hager EG103V is a digital weekly timer designed for time-dependent control of electrical devices. With a changeover contact and a maximum current of 16A, this device is suitable for a variety of applications in residential and commercial spaces. Programming is simple and intuitive, supported by a programming key that allows for the creation of exception programs. The weekly timer also features a random control function that simulates realistic presence, as well as the ability for temporary and permanent exception control directly on the device. The bar display enables quick recognition of the daily programming, while the automatic switch between summer and winter time adds extra convenience.

  • 1-channel control for flexible applications
  • Random control to simulate presence
  • Easy programming with programming key
  • Temporary and permanent exception control
  • Automatic summer/winter time changeover.

Key specifications

Type of time switch
Digital timer
Switching cycle
Weekly program
Time switch functions
Random generator
Mounting type
Top-hat rail

General information

Item number
31834042
Manufacturer
Hager
Category
Timers
Manufacturer no.
EG103V
Release date
13.10.2022

Timer properties

Type of time switch
Digital timer
Switching cycle
Weekly program
Number of programmes
1x
Time switch functions
Random generator
Smallest interval
1 min
Mounting type
Top-hat rail
Mounting type
Screw fastening

Safety

Protection type (IP code)
IP20

Power supply

Power supply
Electrical connection
Electric current
16 A
Nominal voltage
24 V

Smart home features

Smart Home
Not compatible
Requires Smart Home Hub
No

Scope of delivery

Scope of delivery
24V digital, Weekly time switch 1 changeover contact EG103V 16A 2PLE 12

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
64 mm
Width
35 mm
Height
85 mm

Package dimensions

Length
9.60 cm
Width
8.40 cm
Height
6 cm
Weight
197 g
