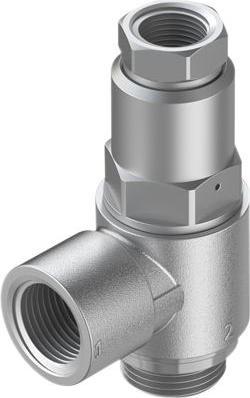

The HGL-3/8-B 530032 check valve from Festo is a high-quality, controlled valve designed for use in various applications. It allows unrestricted flow in one direction while preventing backflow, which is crucial for the safety and efficiency of systems. With an operating pressure of 0.5 to 10 bar and a maximum flow rate of 1400 L/min, this valve is versatile. The aluminum housing ensures a robust and durable construction, while the easy installation via screw connection simplifies the setup process. The connection sizes are G3/8″ for the inlet and G1/4″ for the outlet, allowing for flexible integration into existing systems. This check valve is ideal for applications where reliable flow direction is required.
Material | Aluminium |
Sanitary valve type | Non-return valve |
Connection thread | 3/8" |
Length | 110 mm |
Item number | 39481194 |
Material | Aluminium |
Material group | Metal |
Sanitary valve type | Non-return valve |
Connection thread | 3/8" |
Number of connections | 3 |
Max. Operating pressure | 10 bar |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 110 mm |
Width | 75 mm |
Height | 26 mm |
