Devi Thin-bed heating mat set 140F0818 1-300 W professional DTIF 2,0qm 50x40
Supplied by
JACOB DE
free shipping
Devi Thin Bed Set 1-300 W 140F0818
Manufacturer: Devi
Description: Thin bed set 1-300 W DTIF 2.0 sqm, professional
Type: 140F0818
With carrier mat: yes
Fixation of heating cable: glued
Self-adhesive: yes
Connection power: 0-300 W
Power: 150 W/m²
Heating cable load: 11 W/m
Number of cold leads: 1
Length of cold leads: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 2 m²
Length: 4000 mm
Width: 500 mm
Thickness: 3.5 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes
Additional details:

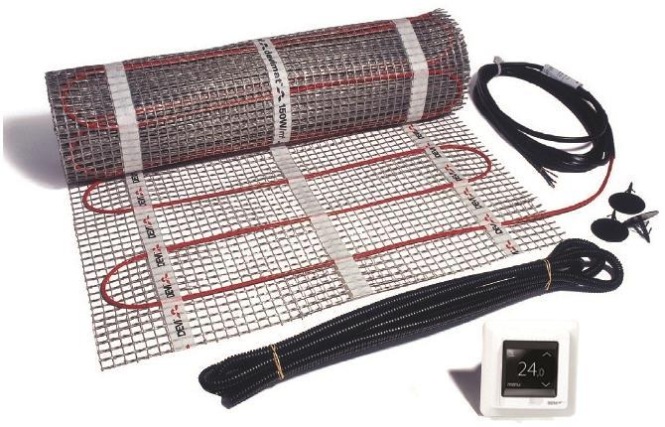

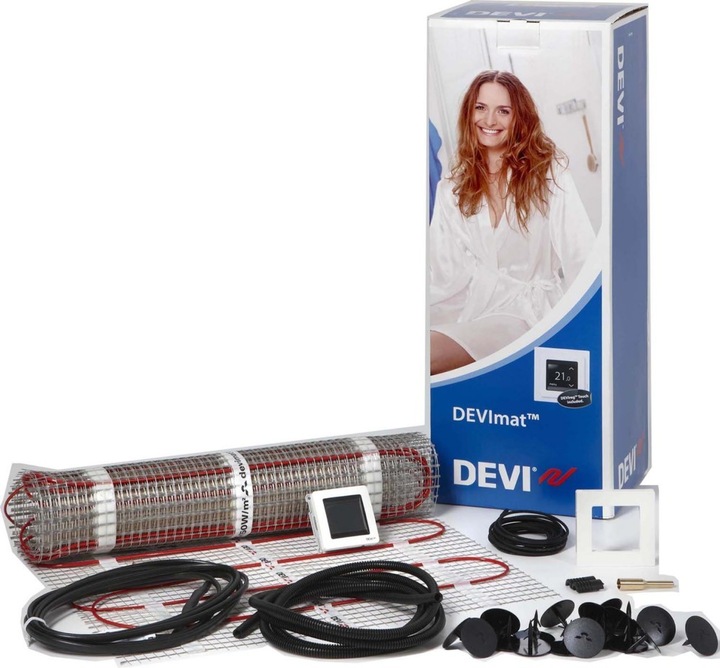

Thin bed set with touch thermostat, flexible sensor protection tube DN10 with red cap, plastic nails, installation instructions. The self-adhesive thin bed heating mat with a connection cable is pre-assembled and designed specifically for installation in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large rooms, as the return of the second connection is not required. The heating cable, with additional protective sheath for the use of RCD protection, is applied to a plastic mesh. The length of the connection cables is 4.0 m. Cold lead: 1 x 4 m, 1.0 mm², Voltage: 230 V, Rated limit temperature: 120 °C, Specific heating power: 150 W/m², Length load: 11 W, Insulation: PVDF / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Calculation width 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval: EN 60335-2-96, Area 2.0 m², 0.5 x 4.0 m, EAN: 5703466216521.
Installation height | 3.20 mm |
Heating capacity | 300 W |
Operating mode | Manual |
Item number | 22614132 |
Manufacturer | Devi |
Category | Floor heating |
Manufacturer no. | 140F0818 |
Release date | 7.10.2022 |
Sales rank in Category Floor heating | 6 of 943 |
Length of heatsealing band | 4 m |
Power consumption | 300 mA |
Installation height | 3.20 mm |
mounting style | Self-adhesive |
Room area | 2 m² |
Heating capacity | 300 W |
Protection type (IP code) | IPX7 |
Operating mode | Manual |
Heat output per meter | 11 W |
Suitable for | Damp room cable |
Length of connection cable | 4 m |
Material group | Plastic |
Material | Plastic nails |
Country of origin | Austria, Poland |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 400 cm |
Width | 50 cm |
Height | 0.35 cm |
Length | 61.50 cm |
Width | 14 cm |
Height | 14.50 cm |
Weight | 1.78 kg |
