Name: Thin-bed heating mat set 140F0821 1-525 W professional DTIF 3,5qm 50x70
Brand: Devi
SKU: 22614126
Price: 543 CHF
Availability: InStock
Rating: 5 (3 reviews)

productDetailPageQuery

Zurich

Lausanne

Wohlen

Basel

Kriens

Winterthur

Bern

Dietikon

St. Gallen

Geneva

Devi

Devi Thin Bed Set 1-525 W 140F0821

Manufacturer: Devi
Description: Thin bed set 1-525 W DTIF 3.5 m², professional
Type: 140F0821
With carrier mat: yes
Fixation of heating conductor: glued
Self-adhesive: yes
Connection power: 0..525 W
Power: 150 W/m²
Heating conductor load: 11 W/m
Number of cold conductors: 1
Length of cold conductor: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 3.5 m²
Length: 7000 mm
Width: 500 mm
Thickness: 3.5 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

Additional details:
Thin bed set with touch thermostat, flexible sensor protection tube DN10 with red cap, plastic nails, installation instructions. The self-adhesive thin bed heating mat with a connection line is pre-assembled and designed specifically for installation in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor temperature control system is particularly suitable for retrofitting in awkward and/or large rooms, as the return of the second connection is not required. The heating cable, with additional protective sheath for the use of RCD protection, is applied to a plastic mesh. The length of the connection lines is 4.0 m, cold conductor: 1 x 4m, 1.0 mm², voltage: 230 V, nominal limit temperature: 120°C, specific heating output: 150 W/m², length load: 11 W, insulation: PVDF / FEP, resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, smallest bending radius: 6 x dA, calculation width 50 cm, delivery width: 48 cm, mat height: 3.2 mm, protection class: IPX7, approval: EN 60335-2-96, area 3.5 m², 0.5 x 7.0 m.

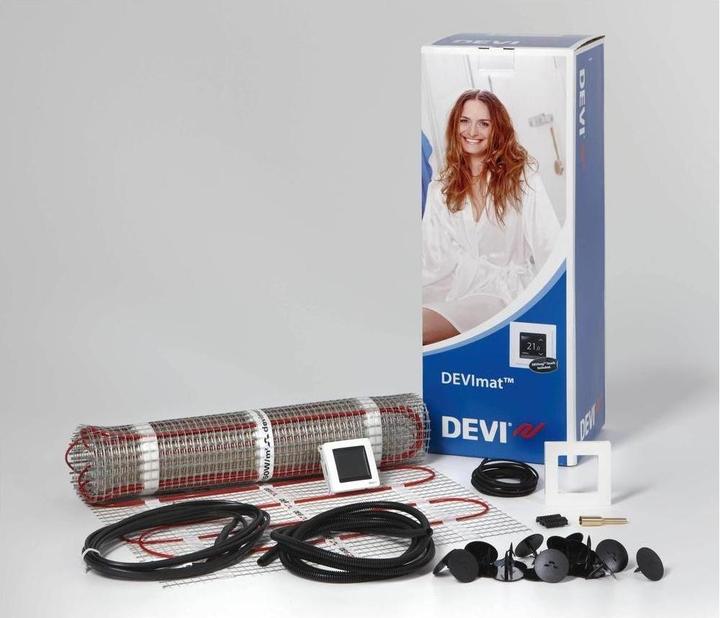

Actual product image Devi Thin-bed heating mat set 140F0821 1-525 W professional DTIF 3,5qm 50x70

Key specifications

Installation height

Room area

The room area is an approximate figure and is influenced by numerous factors. The indication of the room area refers to a typical flat with approx. 2.5 m room height.

Heating capacity

Operating mode

Thin-bed heating mat set 140F0821 1-525 W professional DTIF 3,5qm 50x70
