Name: Thin-bed heating mat set 140F0822 1-600 W professional DTIF 4,0qm 50x80
Brand: Devi
SKU: 22614128
Price: 661.66 CHF
Availability: InStock
Rating: 5 (3 reviews)

productDetailPageQuery

Devi

Devi Thin Bed Set 1-600 W 140F0822

Manufacturer: Devi
Description: Thin bed set 1-600 W DTIF 4.0 sqm, professional
Type: 140F0822
With carrier mat: yes
Fixation of heating conductor: glued
Self-adhesive: yes
Connection power: 0-600 W
Power: 150 W/m²
Heating conductor load: 11 W/m
Number of cold conductors: 1
Length of cold conductors: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 4 m²
Length: 8000 mm
Width: 500 mm
Thickness: 3.5 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

Additional details:
Thin bed set with touch thermostat, flexible sensor protection tube DN10 with red cap, plastic nails, and installation instructions. The self-adhesive thin bed heating mat with a connection lead is pre-fabricated for installation and has been specifically designed for embedding in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor temperature system is particularly suitable for retrofitting in awkward and/or large rooms, as the return of the second connection is not required. The heating cable with additional protective sheath for use with RCD protection is applied to a plastic mesh. The length of the connection leads is 4.0 m. Cold conductor: 1 x 4m, 1.0 mm², Voltage: 230 V, Rated limit temperature: 120 °C, Specific heating output: 150 W/m², Length load: 11 W, Insulation: PVDF / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Calculation width: 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval: EN 60335-2-96, Area: 4.0 m², 0.5 x 8.0 m.

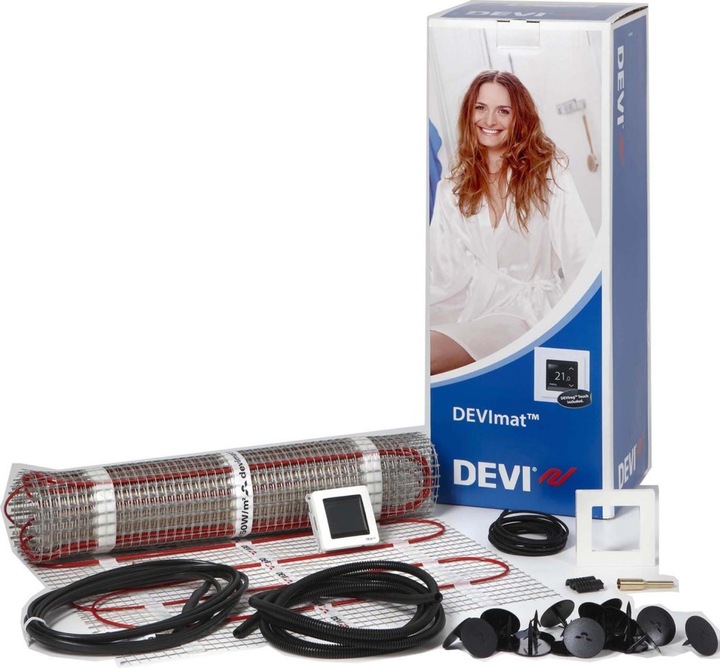

Actual product image Devi Thin-bed heating mat set 140F0822 1-600 W professional DTIF 4,0qm 50x80
