Name: Thin-bed heating mat set 140F0825 1-1050 W professional DTIF 7,0qm 50x140
Brand: Devi
SKU: 22614127
Price: 774 CHF
Availability: InStock
Rating: 5 (3 reviews)

productDetailPageQuery

Zurich

Lausanne

Wohlen

Basel

Kriens

Winterthur

Bern

Dietikon

St. Gallen

Geneva

Devi

Devi Thin Bed Set 1-1050 W 140F0825

Manufacturer: Devi
Description: Thin bed set 1-1050 W DTIF 7.0 sqm, professional
Type: 140F0825
With carrier mat: yes
Fixation of heating cable: glued
Self-adhesive: yes
Connection power: 0..1050 W
Power: 150 W/m²
Heating cable load: 11 W/m
Number of cold leads: 1
Length of cold leads: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 7 m²
Length: 14000 mm
Width: 500 mm
Thickness: 3.5 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

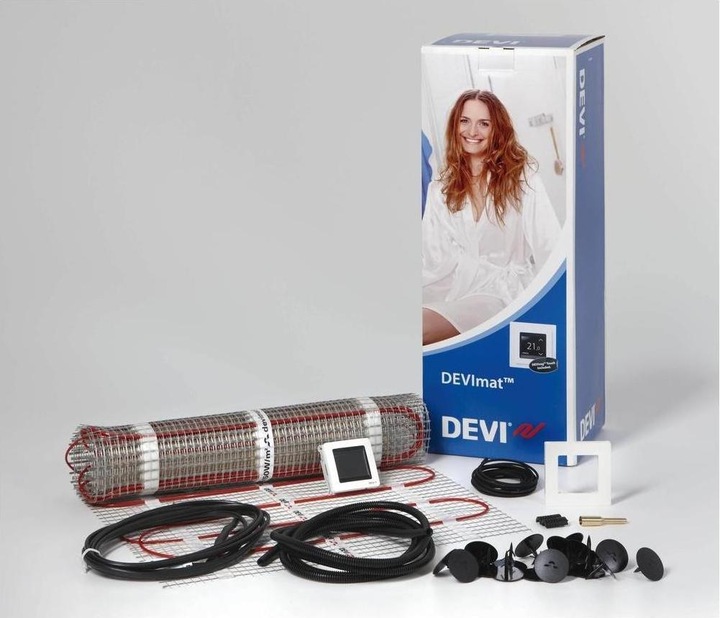

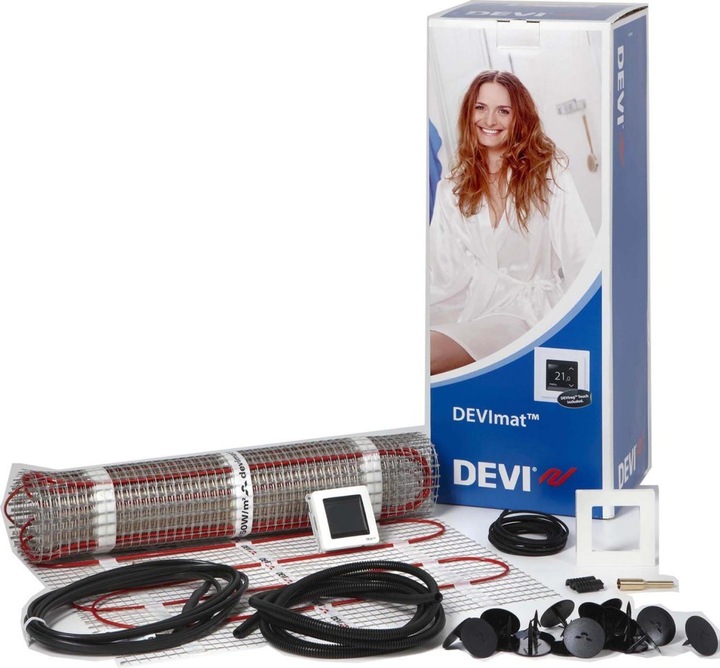

The Devi Thin Bed Set 1-1050 W 140F0825 includes a thin bed set with a touch thermostat, a flexible sensor protection tube DN10 with a red cap, plastic nails, and installation instructions. The self-adhesive thin bed heating mat with a connection lead is pre-assembled and specifically designed for installation in leveling compounds or flexible adhesives directly beneath the floor covering.

With a low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large spaces, as the return of the second connection is not required.

The heating cable, with additional protective sheathing for the use of RCD protection, is applied to a plastic mesh. The length of the connection leads is 4.0 m.

Cold lead: 1 x 4m, 1.0 mm²
Voltage: 230 V
Rated limit temperature: 120 °C
Specific heating power: 150 W/m²
Length load: 11 W
Insulation: PVDF / FEP
Resistance tolerance: +10% / -5%
Minimum installation temperature: 5 °C
Minimum bending radius: 6 x dA
Calculation width: 50 cm
Delivery width: 48 cm
Mat height: 3.2 mm
Protection class: IPX7
Approval: EN 60335-2-96
Area: 7.0 m²
0.5 x 14.0 m
EAN: 5703466216590.
