Dema Palettengabel DPG700 Kat 1+2

DPG700 Pallet Fork Category 1+2

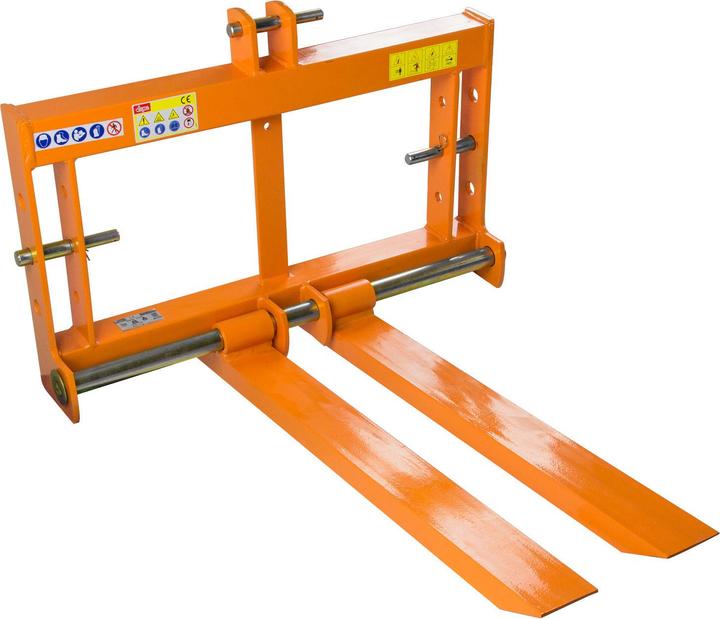

The original DEMA DPG700 pallet fork Category 1+2 is ideal for retrofitting your tractor with a three-point rear pallet fork. It is extremely practical, versatile, and can even be folded when not in use.

Tip: In combination with our snow plow, you can also use the fork for clearing in winter.

Features:

• All-metal construction

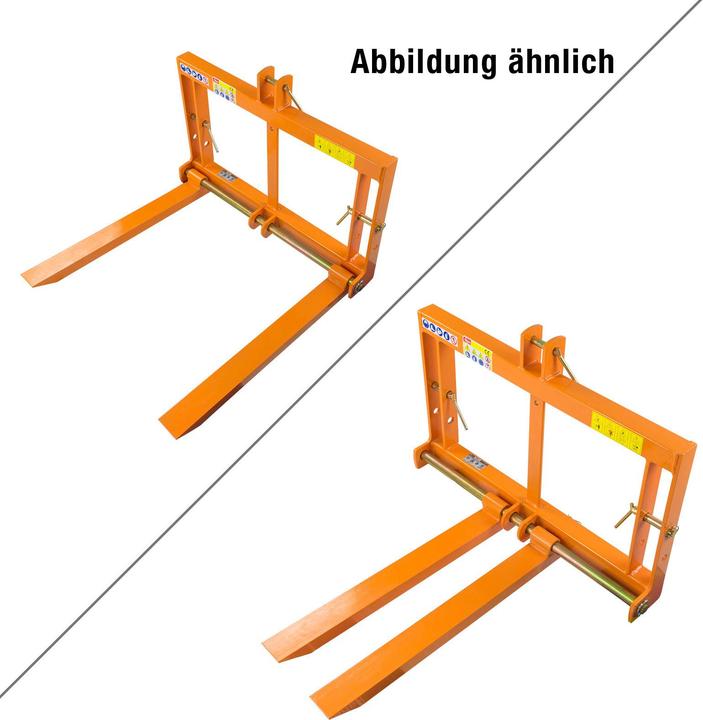

• Foldable when not in use
• Adjustable width in 5 stages
• Three-point hitch
• Rear or front mounting (front mounting via adapter) possible
• Ideal for smaller tractors
• Signal color coating
• Slip protection against unintentional sliding together or apart of the forks

Technical Data:

• RAL 2008
• Tractor power: 20-30 HP
• Max. load: 700 kg
• Square steel: 80x80 mm
• Hitch: Category 1+2
• Upper link pin: 19/25 mm
• Lower link pin: Ø 22/28 mm
• Axle: Ø 40 mm
• Fork dimensions W x H: 10x4.9 cm
• Usable fork length: 91 cm
• Distance between the frame lower link hitch: 78-90 cm
• Fork width adjustment - clear measurement: Approx. 12/30/48/66 cm
• Item dimensions assembled W x D x H: 95x110x66 cm
• Item dimensions folded W x D x H: 99x26x110 cm
• Weight: 76 kg

Special Features:
Not suitable for municipal use.
