Crossfer - Hydraulikaggregat LSA3000-230V

Currently out of stock
Free shipping on orders over 50.–

In Detail

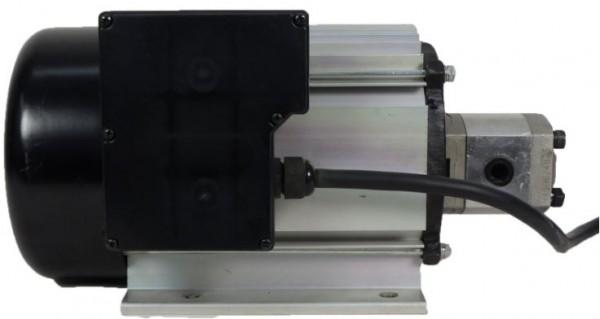

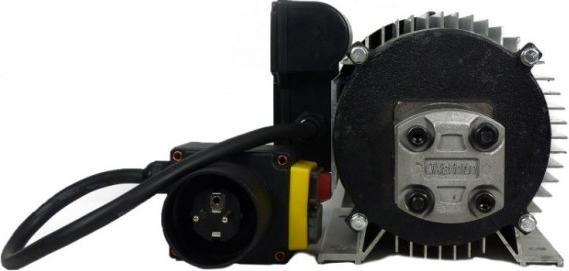

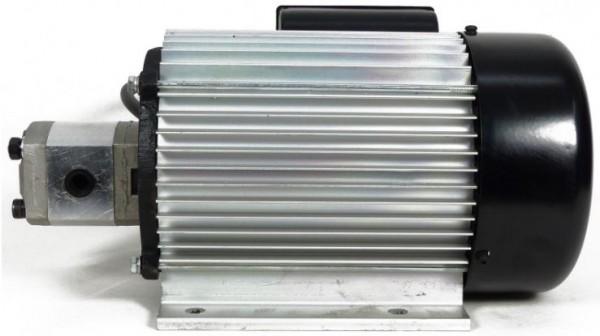

Crossfer - Hydraulic Unit LSA3000-230V
Perfectly suited as a drive for log splitters and other equipment with high demands. Includes switch/socket unit with integrated phase inverter.

Product Features:

  • High-quality copper winding
  • Thermal protection

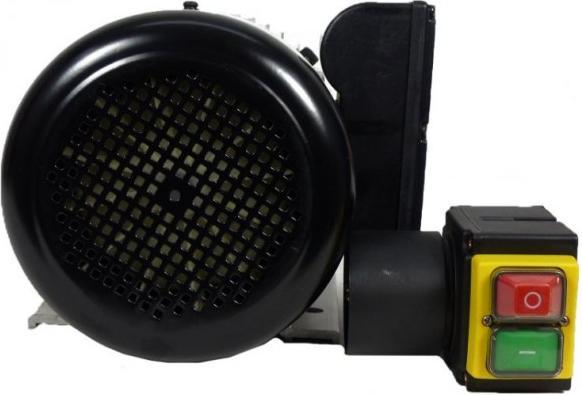

  • Includes switch/socket unit
  • High-quality 45 cm motor cable 4x1.5 mm² H07RN-F (rubber cable)
  • Voltage monitoring and undervoltage release
  • With protection against automatic restart after power failure (restart protection)

Applications:

  • Home and garden
  • Industry
  • Crafts
  • And much more

Scope of Delivery:

  • Hydraulic unit LSA-3000-230V
  • Includes switch/socket combination 230V 16A

Technical Data:

  • Mains voltage: 230V ~50Hz
  • Power: 3000 W S6 - 40%
  • Speed: 2,800 RPM
  • Flow rate: 11.5 L/min at 2,800 RPM
  • Hydraulic oil pressure: 200 bar (20 MPa) at 2,800 RPM
  • Max. hydraulic oil pressure: 250 bar (25 MPa)
  • Dimensions of unit: 360 mm x 210 mm x 185 mm
  • Dimensions of mounting plate: 190 mm x 170 mm
  • Hole spacing: 125 mm x 140 mm
  • Protection class: IP54
  • Weight: approx. 20 kg.
