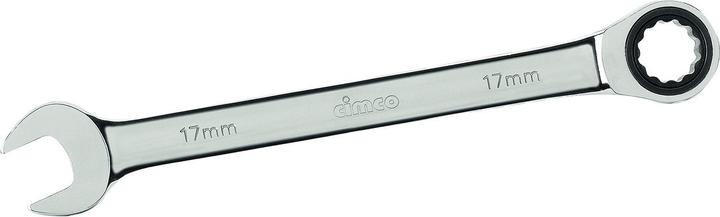

Cimco Ratchet ring open-end wrench.

Cimco Ratchet Ring Wrench 112517

Manufacturer: Cimco
Description: Ratchet Ring Wrench
Wrench Size Open End: 17 mm
Wrench Size Ring End: 17 mm
Width of Open End: 27 mm
Width of Ring End: 42 mm
Height of Open End: 8 mm
Height of Ring End: 13 mm
Length: 180 mm
Spark-resistant: no
Offset: yes
Suitable for Torque Wrench: no
With Torque Wrench: no
Insulated for 1000 V: no
Ratchet Design: yes
Number of Corners: 12
Surface Protection: chrome-plated
Weight: 280 g
VDE Certified: no

The open-end ratchet ring and fork wrench is designed for quick loosening or fastening of screws and nuts in one motion without repositioning with the ring ratchet. One side features a fork or open-end wrench with a 15-degree offset, while the other side has a ring wrench of the same size with an integrated ratchet mechanism that offers special advantages: Ratchet with fine teeth: 72 teeth = only 5 degrees of minimal swing angle. Left and right operation is achieved by simply flipping the wrench, eliminating the need for a cumbersome switch lever that often gets unintentionally adjusted. Despite the ratchet, the wrenches are very slim, making them particularly useful in tight spaces. The 12-point ring with flank drive means that the drive is applied not over the corners of the screw heads but on the flanks, resulting in significantly higher torque transfer and protecting the edges of screw heads and nuts. Made from drop-forged chrome-vanadium steel, specially hardened, highly polished, nickel-plated, and hard chrome-plated. Very high torque transfer, exceeding DIN requirements. EAN: 4021103125175.
