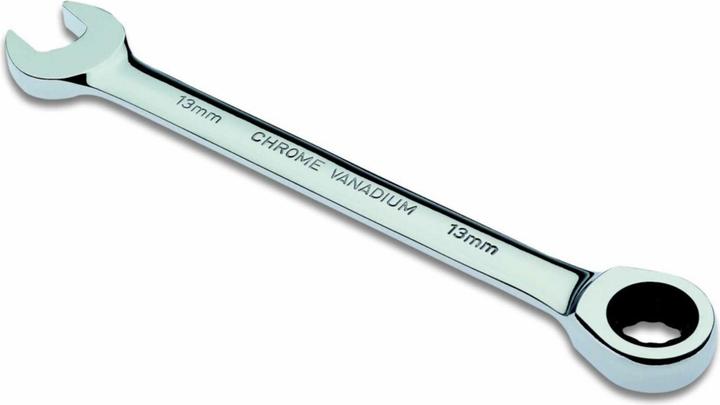

Cimco Ratchet ring open-end wrench.
13 mmSize9
In Detail
Cimco Ratchet Ring Wrench 112513
Manufacturer: Cimco
Description: Ratchet Ring Wrench
Wrench Size Open End: 13 mm
Wrench Size Ring End: 13 mm
Head Width Open End: 27.2 mm
Head Width Ring End: 25.6 mm
Head Height Open End: 6.7 mm
Head Height Ring End: 9 mm
Length: 175 mm
Spark-free Design: no
Offset: yes
Suitable for Torque Wrench: no
With Torque Wrench: no
Insulated for 1000 V: no
Ratchet Design: yes
Number of Sides: 12
Surface Protection: chrome-plated
Weight: 280 g
VDE Certified: no
The ratchet ring and open-end wrench is designed for quick loosening or tightening of screws and nuts in one go without slipping with the ring ratchet. One side features an open-end wrench with a 15-degree offset, while the other side has a ring wrench of the same size with an integrated ratchet mechanism.
Special Features:
- Ratchet with fine-toothed gearing: 72 teeth = only 5 degrees of minimal swing angle.
- Left and right operation is achieved by simply flipping the wrench, without a cumbersome switch lever.
- The wrenches are very slim despite the ratchet, making them ideal for tight spaces.
- 12-point ring with flank drive, allowing for higher torque transmission while protecting the edges of screw heads and nuts.
Forged from chrome-vanadium steel, specially hardened, highly polished, nickel-plated, and hard chrome-plated. Very high torque transmission, exceeding DIN requirements.
Wrench Size: 13 mm
EAN: 4021103125137.
