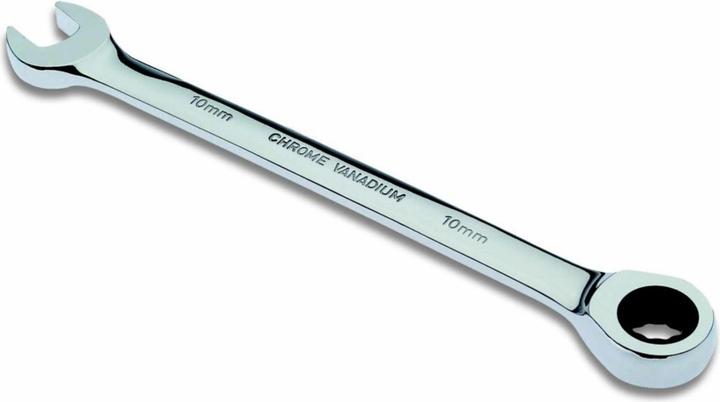

Cimco Ratchet ring open-end wrench.
10 mmSize9
In Detail
Cimco Ratchet Ring Wrench 112510
Manufacturer: Cimco
Description: Ratchet Ring Wrench
Wrench Size Open End: 10 mm
Wrench Size Ring End: 10 mm
Head Width Open End: 21 mm
Head Width Ring End: 20.7 mm
Head Height Open End: 6.7 mm
Head Height Ring End: 7.7 mm
Length: 159 mm
Spark-free Design: No
Offset: Yes
Suitable for Torque Wrench: No
With Torque Wrench: No
Insulated for 1000 V: No
Ratchet Design: Yes
Number of Corners: 12
Surface Protection: Chrome Plated
Weight: 280 g
VDE Certified: No
The ratchet ring and open-end wrench is designed for quick loosening or tightening of screws and nuts in one go without repositioning with the ring ratchet. One side features an open-end wrench with a 15-degree offset, while the other side has a ring wrench of the same size with an integrated ratchet mechanism.
Special Features:
- Ratchet with fine-tooth gearing: 72 teeth = only 5 degrees minimum swing angle.
- Left and right operation is achieved by simply flipping the wrench, without a disruptive switch lever.
- Despite the ratchet, the wrenches are very narrow, making them ideal for tight spaces.
- 12-point ring with flank drive, allowing for higher torque transmission while protecting the edges of screw heads and nuts.
Made from chrome vanadium steel, drop forged, specially hardened, highly polished, nickel-plated, and hard chrome plated. Very high torque transmission, exceeding DIN requirements.
Wrench Size: 10 mm
EAN: 4021103125106.
