Best selling Bike forks from Ikon
This page always stays fresh and updates automatically.
1. Ikon Tapered Pro Cruiser
The Carbon Fork Ikon Tapered Pro Cruiser has been tested and approved by the riders of the CHASE team. It is designed to meet the demands of BMX racing and ensures optimal aerodynamics thanks to the small rear wing under the head tube and the profiled arms. Made from Toray UD Carbon, it features a solid and reliable pivot point made of 7075 aluminum and CNC-machined legs from 6061 aluminum. The tapered version is available for frames with tapered head tubes of 1-1/8" at the top and 1.5" at the bottom. For riders using a Pro 24" frame with a 20mm front axle, which can be converted to 10mm with separately available axle adapters, the tapered version is also available.
Features:
- 24" Carbon UD Monocoque Fork
- Tapered pivot joint Aluminum 7075 top 1-1/8'' - bottom 1.5'' - 6mm thick
- CNC machined dropouts Aluminum 6061
- Axle: 20mm
- Offset: 31mm
- Pivot joint height: 173mm
- Height from axle to chainstay: 353.5mm
- Weight: 662g (without top cap)
- Sold with top cap
Compatibility:
- For 24" frames with integrated tapered head tube top 1-1/8'' - bottom 1.5''
- For 24" wheels with 20mm axle.

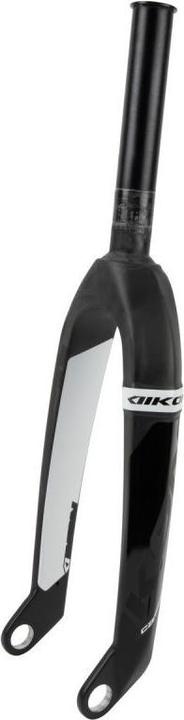

2. Ikon Pro 20"
The IKON Pro carbon fork with a 1-1/8" steerer has been tested and approved by the riders of the CHASE team. It is designed to meet the demands of BMX racing and ensures optimal aerodynamics thanks to the small rear wing under the steerer tube and the profiled arms.
Made from Toray UD carbon, the fork features a solid and reliable steerer made of 7075 aluminum and CNC-machined dropouts made from 6061 aluminum. It is available in a 1-1/8" version for use with frames that have a 1-1/8" steerer tube, suitable for riders on Pro 20" frames with a 20mm front axle, which can be converted to 10mm axles using separately available axle adapters.
Features:
- 20" Carbon UD monocoque fork.
- Steerer made of 7075 aluminum, 1-1/8'' - 6 mm thick.
- CNC-machined dropouts made of 6061 aluminum.
- Axle: 20mm.
- Offset: 31mm.
- Steerer height: 173mm.
- Axle to base height: 305mm.
- Weight: 542g (without top cap).
- Sold with top cap.
Compatibility:
- For 20" frames with integrated 1-1/8'' steerer tube.
- For 20" wheels with 20mm thru-axle.
3. Ikon Tapered Pro
The Ikon Tapered Pro carbon fork has been tested and approved by the riders of Team Chase. It is designed to meet the demands of BMX racing and ensures optimal aerodynamics thanks to the small rear wing under the steerer tube and the profiled arms. Made from Toray UD Carbon, it features a solid and reliable pivot point made of 7075 aluminum, as well as CNC-machined legs made from 6061 aluminum. The tapered version is suitable for frames with tapered head tubes of 1-1/8" at the top and 1.5" at the bottom. Riders using a 20-inch Pro frame can convert the 20mm front axle to a 10mm axle using separately available axle adapters.
Features:
- 20" UD Carbon monocoque fork
- Tapered pivot aluminum 7075 top 1-1/8'' - bottom 1.5'' - 6mm thick
- CNC-machined dropouts aluminum 6061
- Axle: 20mm
- Offset: 31mm
- Pivot height: 173mm
- Height from axle to chainstay: 305mm
- Weight: 626g (without top cap)
- Sold with top cap
Compatibility:
- For 20" frames with integrated tapered head tube top 1-1/8'' - bottom 1.5''
- For 20" wheels with 20mm thru axle.

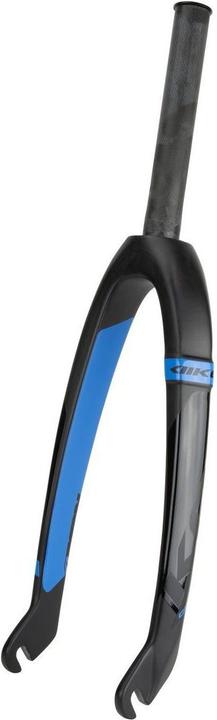

4. Ikon Children's fork
The IKON Mini/Junior Carbon Fork is designed for young BMX riders who want to take advantage of the aerodynamic benefits of the Pro version. It features a small rear spoiler under the steer tube and streamlined arms. Made from Toray UD carbon, it includes a reinforced Toray UD carbon pivot and legs. It is available with a 1" pivot for young riders on Mini, Junior, or Expert 20" frames.
Features:
- 20" UD carbon monocoque fork
- 1" monocoque carbon UD pivot
- Reinforced monocoque carbon UD dropouts
- Axle: 10mm
- Offset: 28mm
- Pivot height: 165mm
- Height from axle to base: 305mm
- Weight: 304g (without top cap)
- Maximum rider weight: 45kg
- Maximum tightening torque of the axle: 6 N.m
- Sold with top cap
Compatibility:
- For 20" frames with integrated 1" steer tube
- For 20" wheels with 10mm axle.

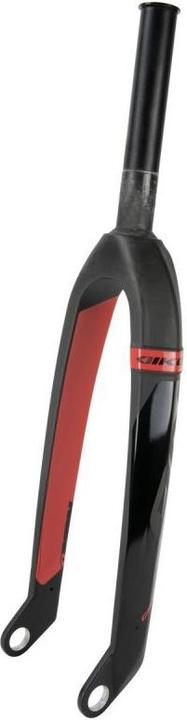

5. Ikon Pro 24"
The Ikon Tapered Pro Cruiser carbon fork has been tested and approved by the riders of the CHASE team. It is designed to meet the demands of BMX racing and ensures optimal aerodynamics thanks to the small rear wing under the head tube and the profiled arms. Made from Toray UD Carbon, it features a solid and reliable pivot point made of 7075 aluminum, as well as CNC-machined 6061 aluminum dropouts. The fork is available in a 1-1/8" version for use on frames with a 1-1/8" head tube, suitable for riders using Pro 24" frames with a 20mm front axle, which can be converted to a 10mm axle with separately available adapters.
Features:
- 24" UD Carbon monocoque fork.
- 7075 aluminum pivot point 1-1/8'' - 6 mm thick.
- CNC-machined 6061 aluminum dropouts.
- Axle: 20mm.
- Offset: 31mm.
- Pivot height: 173mm.
- Height from axle to base: 353.5mm.
- Weight: 566g (without top cap).
- Sold with top cap.
Compatibility:
- For 24" frames with integrated 1-1/8'' head tube.
- For 24" wheels with 20mm thru-axle.

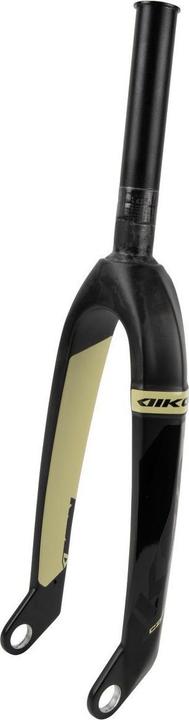

6. Ikon integré Pro 20"x1-1/8"
The IKON Pro pivot 1-1/8" carbon fork has been tested and approved by the riders of the CHASE team. It is designed to meet the demands of BMX racing and ensures optimal aerodynamics thanks to the small rear wing under the head tube and the contoured arms.
It is made from Toray UD Carbon and features a solid and reliable pivot point made of 7075 aluminum, as well as CNC-machined dropouts made from 6061 aluminum. It is available in a 1-1/8" version for use on frames with a 1-1/8" head tube, suitable for riders on Pro 20" frames with a 20mm front axle, which can be converted to a 10mm axle using separately available adapters.
Features:
20" Carbon UD Monocoque fork.
7075 Aluminum pivot point 1-1/8'' - 6 mm thick.
CNC-machined 6061 Aluminum dropouts.
Axle: 20mm.
Offset: 31mm.
Height of pivot point: 173mm.
Height from axle to base: 305mm.
Weight: 542g (without top cap).
Sold with top cap.
Compatibility:
For 20" frames with integrated 1-1/8'' head tube.
For 20" wheels with 20mm thru axle.

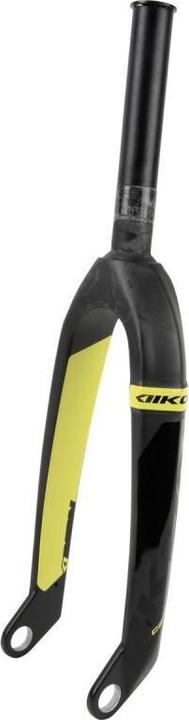

7. Ikon Pro
The Ikon Pro carbon fork with a 1-1/8" steerer has been tested and approved by the riders of Team Chase. It is designed to meet the demands of BMX racing and ensures optimal aerodynamics thanks to the small rear wing under the steerer tube and the profiled arms.
Made from Toray UD carbon, the fork features a solid and reliable steerer made of 7075 aluminum and CNC-machined dropouts made from 6061 aluminum. It is available in a 1-1/8" version for use with frames that have a 1-1/8" steerer tube, suitable for riders on Pro 20" frames with a 20mm front axle, which can be converted to 10mm axles using separately available axle adapters.
Features:
- 20" Carbon UD monocoque fork.
- Steerer made of 7075 aluminum, 1-1/8" - 6 mm thick.
- CNC-machined dropouts made of 6061 aluminum.
- Axle: 20mm.
- Offset: 31mm.
- Steerer height: 173mm.
- Axle to base height: 305mm.
- Weight: 542g (without top cap).
- Sold with top cap.
Compatibility:
- For 20" frames with integrated 1-1/8" steerer tube.
- For 20" wheels with 20mm thru-axle.

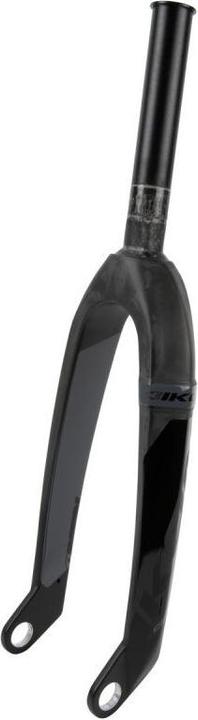

8. Ikon integrated fork pro 20"
The IKON Pro carbon fork with a 1-1/8" steerer has been tested and approved by the riders of the CHASE team. It is designed to meet the demands of BMX racing and ensures optimal aerodynamics thanks to the small rear wing under the head tube and the profiled arms.
Made from Toray UD carbon, the fork features a solid and reliable steerer made of 7075 aluminum and CNC-machined dropouts made from 6061 aluminum. It is offered in a 1-1/8" version for use on frames with a 1-1/8" head tube, suitable for riders using Pro 20" frames with a 20mm front axle, which can be converted to 10mm axles with separately available axle adapters.
Features:
- 20" Carbon UD monocoque fork.
- Steerer made of 7075 aluminum, 1-1/8" - 6 mm thick.
- CNC-machined dropouts from 6061 aluminum.
- Axle: 20mm.
- Offset: 31mm.
- Steerer height: 173mm.
- Height from axle to base: 305mm.
- Weight: 542g (without top cap).
- Sold with top cap.
Compatibility:
- For 20" frames with integrated 1-1/8" head tube.
- For 20" wheels with 20mm thru-axle.

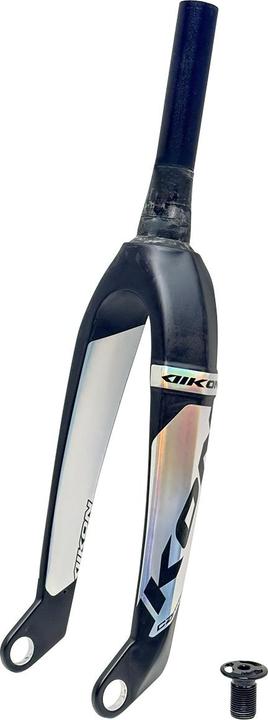

9. Ikon Carbon Pro
Tested and approved by the riders of the CHASE team, the Carbon Fork IKON Tapered Pro is designed to meet the demands of BMX racing, achieving optimal aerodynamics thanks to a small rear wing under the head tube and its aerodynamic arms. It is made from Toray UD Carbon and features a stable and reliable pivot made of aluminum 7075, as well as CNC-machined aluminum axles 6061. It is available in a tapered version suitable for frames with a tapered head tube of 1-1/8" at the top and 1.5" at the bottom, designed for riders on Pro 20" frames with a 20mm front axle, which can be converted to 10mm with separately available axle adapters.
Features:
20" Monocoque UD Carbon Fork
Tapered Pivot Aluminum 7075 top 1-1/8'' - bottom 1.5'' - 6mm thick
Integrated fork bushing for lower bearing at 45 degrees - no additional fork bushings required
CNC-machined aluminum axles 6061
Axle: 20mm
Offset: 31mm
Pivot height: 173mm
Height from axle to base: 305mm
Weight: 626g (without Top Cap)
Delivered with Top Cap
Compatibility:
For 20" frames with integrated tapered head tube top 1-1/8'' - bottom 1.5''
For 20" wheels with 20mm axle.

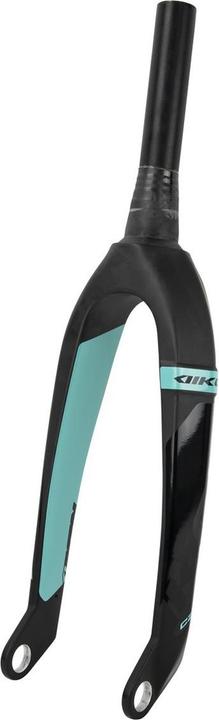

10. Ikon Fork
The Ikon Tapered Pro carbon fork has been tested and approved by the riders of Team CHASE. It is designed to meet the demands of BMX racing and ensures optimal aerodynamics thanks to a small rear wing under the head tube and its profiled arms. Made from Toray UD Carbon, it features a solid and reliable pivot point made of 7075 aluminum, as well as CNC-machined dropouts made of 6061 aluminum. It is offered in a tapered version, suitable for frames with a conical head tube of 1-1/8" at the top and 1.5" at the bottom, for riders using Pro 20" frames with a 20mm front axle, which can be converted to 10mm with separately available axle adapters.
Features:
- 20" Carbon UD monocoque fork.
- Conical pivot aluminum 7075 top 1-1/8'' - bottom 1.5'' - 6mm thick.
- Integrated fork crown for bearings under 45 degrees - no additional fork crown required.
- CNC-machined legs made of aluminum 6061.
- Axle: 20mm.
- Offset: 31mm.
- Height of axle legs: 173mm.
- Height from axle to base: 305mm.
- Weight: 626g (without top cap).
- Sold with top cap.
Compatibility:
- For 20" frames with integrated conical head tube high 1-1/8'' - low 1.5''.
- For 20" wheels with a 20mm axle.
