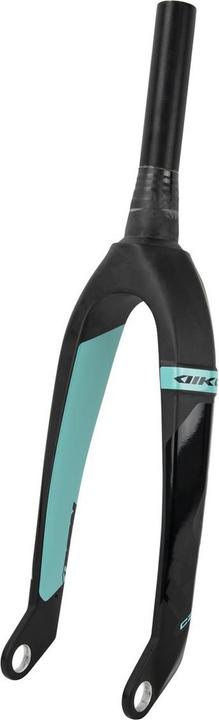

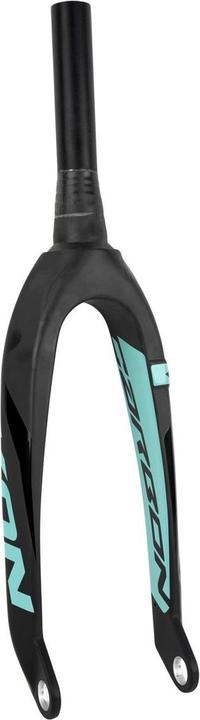

Ikon Fork

The Ikon Tapered Pro carbon fork has been tested and approved by the riders of Team CHASE. It is designed to meet the demands of BMX racing and ensures optimal aerodynamics thanks to a small rear wing under the head tube and its profiled arms. Made from Toray UD Carbon, it features a solid and reliable pivot point made of 7075 aluminum, as well as CNC-machined dropouts made of 6061 aluminum. It is offered in a tapered version, suitable for frames with a conical head tube of 1-1/8" at the top and 1.5" at the bottom, for riders using Pro 20" frames with a 20mm front axle, which can be converted to 10mm with separately available axle adapters.

Features:

• 20" Carbon UD monocoque fork.
• Conical pivot aluminum 7075 top 1-1/8'' - bottom 1.5'' - 6mm thick.
• Integrated fork crown for bearings under 45 degrees - no additional fork crown required.
• CNC-machined legs made of aluminum 6061.
• Axle: 20mm.
• Offset: 31mm.
• Height of axle legs: 173mm.
• Height from axle to base: 305mm.
• Weight: 626g (without top cap).
• Sold with top cap.

Compatibility:

• For 20" frames with integrated conical head tube high 1-1/8'' - low 1.5''.
• For 20" wheels with a 20mm axle.
