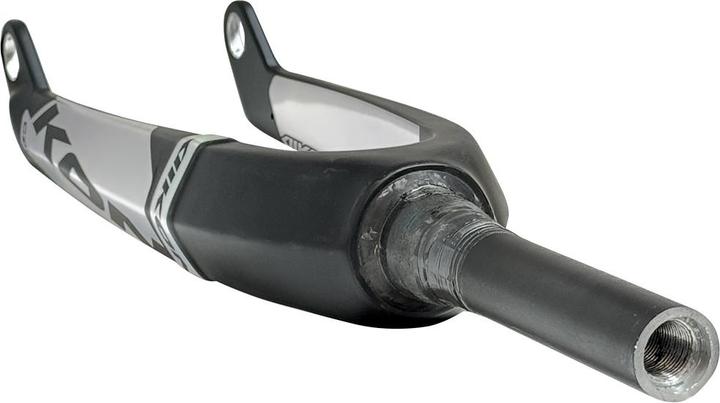

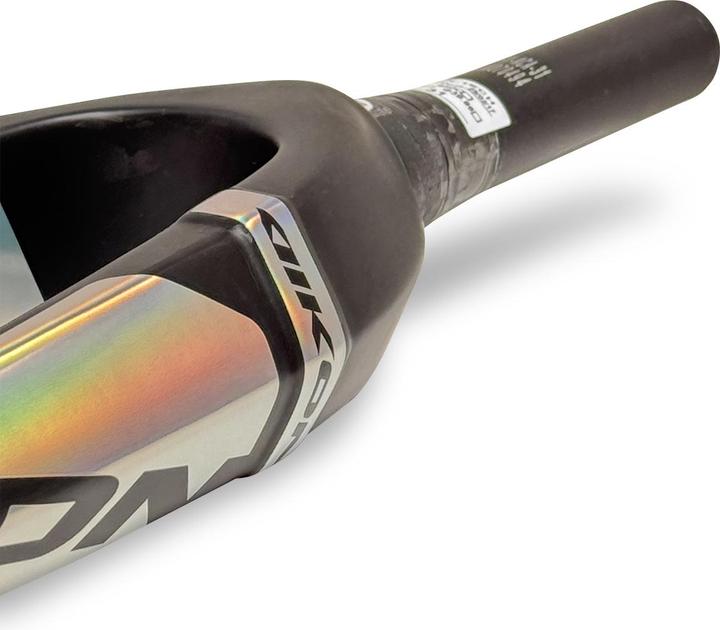

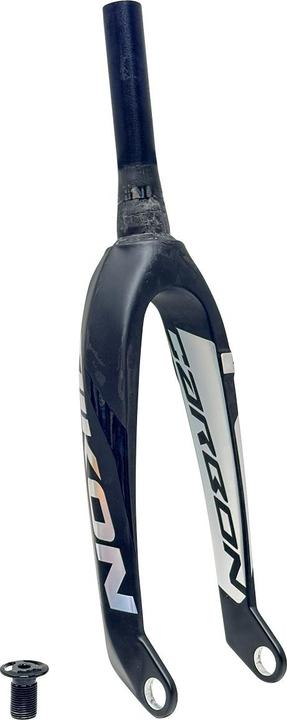

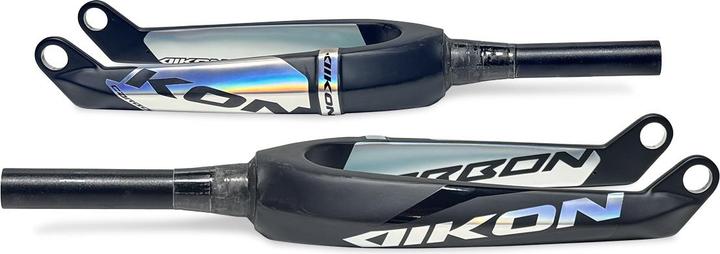

Ikon Carbon Pro

Tested and approved by the riders of the CHASE team, the Carbon Fork IKON Tapered Pro is designed to meet the demands of BMX racing, achieving optimal aerodynamics thanks to a small rear wing under the head tube and its aerodynamic arms. It is made from Toray UD Carbon and features a stable and reliable pivot made of aluminum 7075, as well as CNC-machined aluminum axles 6061. It is available in a tapered version suitable for frames with a tapered head tube of 1-1/8" at the top and 1.5" at the bottom, designed for riders on Pro 20" frames with a 20mm front axle, which can be converted to 10mm with separately available axle adapters.

Features:
20" Monocoque UD Carbon Fork
Tapered Pivot Aluminum 7075 top 1-1/8'' - bottom 1.5'' - 6mm thick
Integrated fork bushing for lower bearing at 45 degrees - no additional fork bushings required
CNC-machined aluminum axles 6061
Axle: 20mm
Offset: 31mm
Pivot height: 173mm
Height from axle to base: 305mm
Weight: 626g (without Top Cap)
Delivered with Top Cap

Compatibility:
For 20" frames with integrated tapered head tube top 1-1/8'' - bottom 1.5''
For 20" wheels with 20mm axle.
