Trilux LED Louvre Luminaire Atirion D-L #6483940

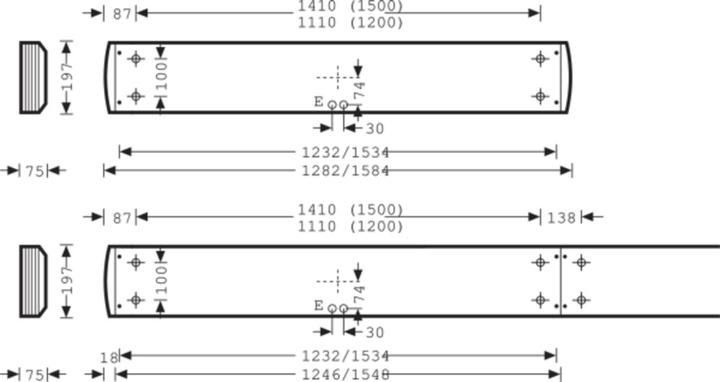

LED surface-mounted light for individual or continuous lighting applications. Designed for installation on ceilings and overhangs in indoor spaces. Features a highly reflective, anodized parabolic reflector grid. Grid attachment and automatic electrical protection through sliding contact closures. The grid can be folded down and removed from both sides without tools. Glare rating according to UGR classification (EN 12464-1) < 19. Screen-friendly according to EN 12464-1 with limited luminance L = 1500 cd/m² for emission angles above 65° all around. Rated luminous flux 4200 lm, rated power 38.00 W, luminous efficacy of the luminaire 111 lm/W. Light color warm white, closest color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Average rated lifespan L80(tq 25 °C) = 35,000 h, average rated lifespan L70(tq 25 °C) = 50,000 h. The light source is replaceable according to eco-design requirements. Luminaire body made of sheet steel. Surface coated white (RAL 9016). Flat profile design, angled 55° towards the room side. Dimensions (L x W): 1548 mm x 197 mm, luminaire height 75 mm. End caps for individual lights or light band ends must be ordered separately. Luminaire body with integrated coupling bridges for perfectly aligned light bands with continuous grids. Allowed ambient temperature (ta): -20 °C to +. Protection class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance grade according to IEC 62262: IK02, test temperature for glow wire test according to IEC 60695-2-11: 850 °C. Weight: 4.3 kg. With electronic control gear, switchable. The control gear is replaceable according to eco-design requirements. The product meets the fundamental requirements of applicable EU directives and the Product Safety Act and bears the CE marking. Additionally, the luminaire is ENEC certified by an independent testing body.
