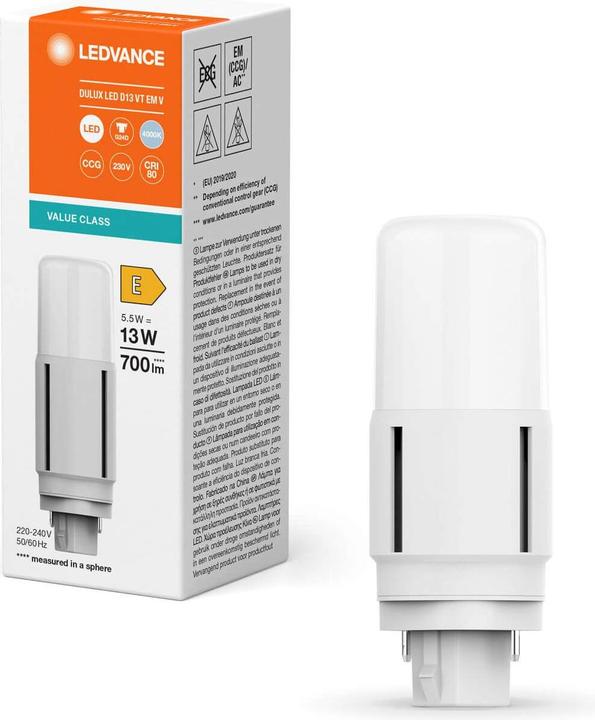

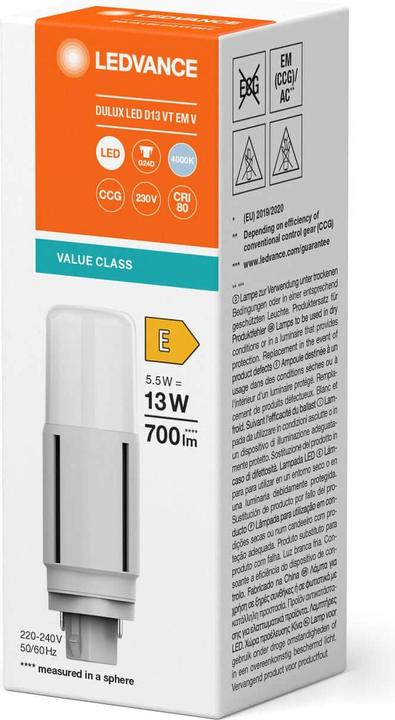

Ledvance LED compact lamp

Ledvance LED compact lamp f.KVG/VVG DU.LEDD13VTEMV5.5840

Manufacturer: Ledvance
Designation: LED compact lamp f.KVG/VVG G24D, 840
Type: DU.LEDD13VTEMV5.5840
Energy efficiency class of the light source according to EU Regulation 2019/2015: E
Energy efficiency class spectrum: A to G
Rated current: 28 mA
Power factor: 0.9
Rated voltage: 220 V
Lamp wattage: 5.5 W
Voltage type: AC
Luminous flux: 700 lm
Rated luminous flux according to IEC 62612: 700 lm
Lamp luminous efficacy: 127 lm/W
Colour rendering index CRI: 80-89
Lamp shape: Tube, single-ended
Filament lamp: No
Finish glass/cover: Frosted
Light colour according to EN 12464-1: Neutral white 3300 to 5300 K
Base: G24d
Colour: White
Colour temperature: 4000 K
Housing colour: White
Beam angle: 120°
Colour consistency (McAdam ellipse): SDCM6
Diameter: 37.7 mm
Length: 103 mm
Protection class (IP): IP20
Min. number of switching operations: 200,000
Weighted energy consumption in 1,000 hours: 6 kWh
Average rated life: 30,000 h
Remote control possible: No
With remote control: No
Photobiological safety according to EN 62471: RG0
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: Yes

Ledvance LED compact lamp f.KVG/VVG DU.LEDD13VTEMV5.5840 is an LED replacement for KLLni with a 2-pin G24d plug-in base for operation on KVG or mains voltage.

Product features:

• LED replacement for conventional compact fluorescent lamps in CCG luminaires or on mains voltage.
• Only suitable for vertical application.
• Lifetime: up to 30,000 h.
• Single-sided 2-pin plug-in base G24d.
• Protection class: IP20.
• Mercury-free lamps.

Product advantages:

• Easy installation.
• Low energy consumption.
• Easy lamp replacement thanks to compact design.
• Can be operated directly on 230 V mains voltage.

Fields of application:

• General lighting in ambient temperatures of -20 to +45 °C.
• Supermarkets and department stores.
• Corridors and aisles.
• Hotels and restaurants.
