Best selling Video cables from Procab
On this page you'll find a ranking of the best Procab products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Procab HDMI – HDMI
The CLV220A is an active optical HDMI 2.0 cable designed for fixed installations. It is capable of transmitting resolutions up to Ultra HD 4K 2160p (3840 x 2160) at 60 Hz with a bandwidth of 18 Gbps using OM3 fiber optic technology, eliminating electronic interference. The interchangeable connectors allow for easy detachment and reattachment of the connectors. This enables the cable to be routed through holes and straight pipes with a diameter of only 25 mm. The CLV220A comes with a supplied USB A to USB Micro B cable, which is only needed as an accessory if the HDMI connection on the transmitter side provides insufficient voltage (typically less than 4.8 V) to power the receiver end. Power is transmitted from the transmitter side to the receiver side through the CLV220A cable. Most general HDMI sources provide sufficient voltage, so the additional cable is not required. However, typical applications where this might be necessary include streaming media player boxes that may deliver insufficient voltage through their HDMI output.

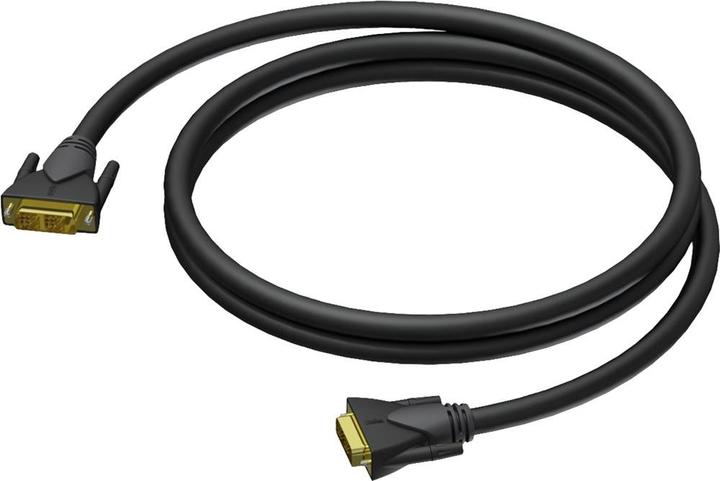

2. Procab DVI-D - DVI-D 3 m black (CLV140/3)
The CLV140 features a DVI-D connector at both ends and supports higher resolution displays. This DVI cable has double the number of TMDS pairs, effectively doubling the video bandwidth. As a result, it supports higher resolutions up to 2560 × 1600 at 60 Hz. Please note that return channel audio and Ethernet are not compatible with DVI. It is available in lengths ranging from 1.5 to 10 meters, ensuring solutions for all purposes. Product specifications: flexible PVC jacket, 26 AWG thinner and thicker multi-conductor cable, 11.0 mm (Ø) outer diameter, anaerobic copper, triple shielded (2 x Al + optical film).

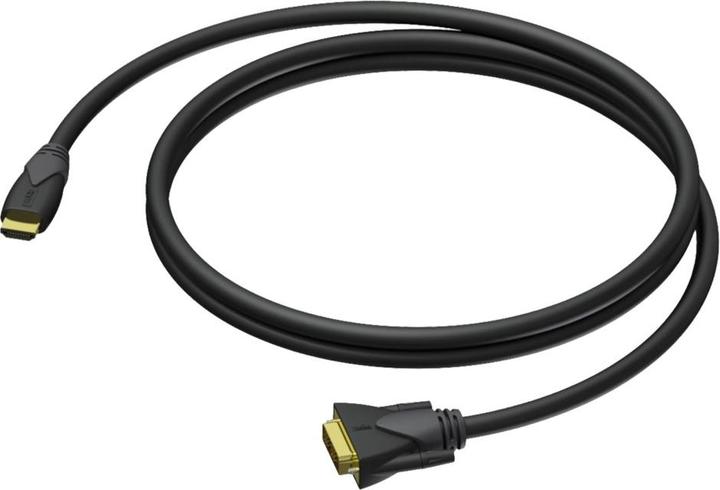

3. Procab HDMI - DVI-D 3 m black (CLV160/3)
The CLV160 is equipped with a male DVI-D connector and a male HDMI-A connector, capable of transmitting a high-speed signal for cable lengths of up to 5 meters. From 5 meters to the maximum signal transmission, the resolution is 1080i. Some features of High Speed HDMI, such as audio transmission, audio return, and Ethernet channel, are not compatible with DVI. It is available in lengths from 1.5 to 10 meters and guarantees solutions for all purposes. Product specifications: 24 AWG thin and dense multi-stranded cable, flexible PVC jacket, triple shielding, 8.8 mm (Ø) outer diameter, anaerobic copper.
4. Procab HDMI - HDMI 5 m black (BSV110/5)
BSV110 is a high-quality HDMI cable that provides a reliable solution for HDMI connections in AV systems. This cable meets the highest HDMI certification standards and supports features such as Ethernet and an audio return channel. The combination of gold-plated contacts with oxygen-free copper wires and triple shielding ensures optimum performance. Sections of less than 10 metres consist of 30 AWG high-speed Ethernet cables capable of transmitting 1080p signals, 4K x 2K cinema resolution, and 3D images. Sections of 10 metres and longer consist of a section of 28 AWG wire, support standard speed Ethernet, and can transmit signals up to 1080i and 720p.
Product Specification
Physical Characteristics
- Cable Type: HDMI High Speed with Ethernet
- Inner Conductor Material: BC 1 x 0.254 mm (Ø) (OFC), BC 1 x 0.32 mm (Ø) (10 m)
- Section: 0.05 mm² (0.08 mm²) (10 m)
- Number of wires: 15
- Insulation material: FPE 0.7 mm (Ø), FPE 0.9 mm (Ø) (10 m)
- Shield: Aluminium foil Al-Mylar, 100% coverage - 25% overlap
- Drainage wire: BC 1 x 0.254 mm (Ø) (OFC), BC 1 x 0.32 mm (Ø) (OFC) (10 m)
- Total shielding: Aluminium foil Al-Mylar, 100% coverage - 25% overlap drainage wire BC 1 x 0.254 mm (Ø) (OFC), BC 1 x 0.32 mm (Ø) (OFC) (10 m)
- Braid: AL-MG 16 x 4 x 0.12 mm (Ø)
- Outer sheath material: PVC 6.0 mm (Ø), PVC 7.3 mm (Ø) (10 m)
- Colours: Black
Electrical Characteristics
- Dielectric strength: 0.5 (KV / 1 min. DC)
- Rated voltage: 30 V
- Characteristic resistance: 100 Ω ± 10 Ω.
5. Procab HDMI - HDMI 1.5 m black (CLV100/1.5)
CLV100
The CLV100 is a high-quality classic HDMI cable that provides reliable solutions for all audio and video communication needs. This cable meets the highest certification standards currently available for HDMI and offers Ethernet services as well as an audio return channel. The combination of gold-plated contacts, oxygen-free copper conductors, and additional triple shielding to protect against interference and high frequencies ensures optimal performance. To sustainably maintain this performance, it is protected by a durable long-life outer jacket. Sections under 10 meters function as Ethernet High Speed HDMI, meaning that the CLV100, at lengths of less than 10 meters, supports not only 1080p signals but also mass cinema resolution 4K x 2K and 3D images. Lengths of 10 meters and more operate according to the Ethernet Standard Speed HDMI and can transmit signals in 1080i/720p.
Product Specification
Physical Properties
Inner Tube Material SC 1 x 0.32 mm (Ø) (OFC).
