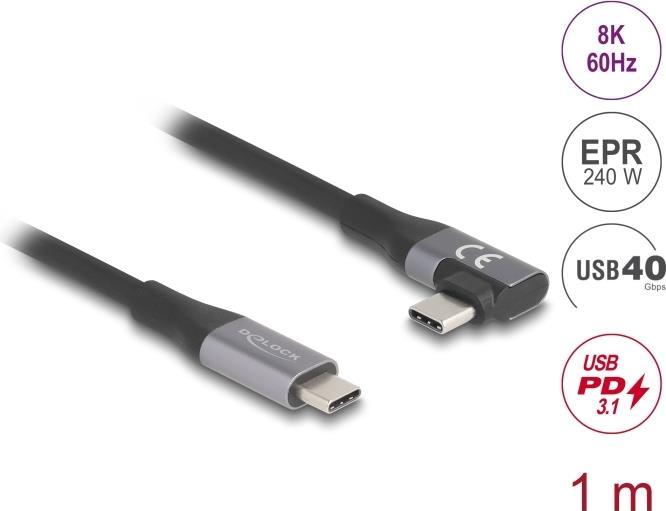

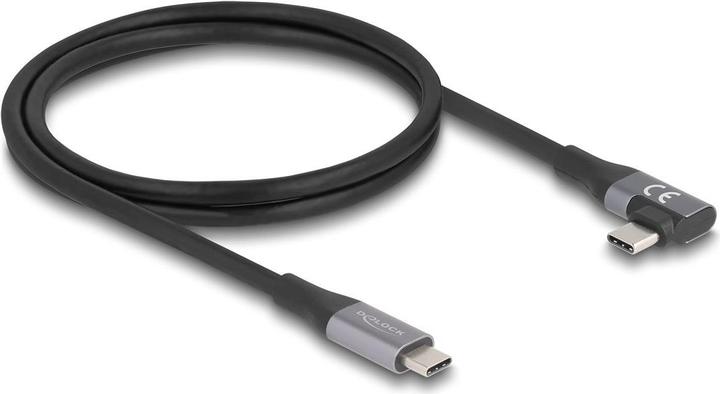

Delock USB C – USB C

This USB cable by Delock enables the connection of various devices, such as smartphones, monitors, external housings and docking stations, via a USB Type-C or Thunderbolt 3 port of a PC or notebook. The cable supports the transmission of USB as well as DisplayPort and PCI Express data.

USB4 40 Gbps
The cable enables data transfer rates of up to 40 Gbps when connecting USB4-compatible devices. Of course, USB 3.2 or USB 2.0 devices can also be connected.

Connect USB-C 8K monitors
The Delock cable supports DisplayPort 2.0 Alternate Mode and thus enables the connection of corresponding USB-C monitors with a screen resolution of up to 8K 60 Hz.

USB Power Delivery (USB PD 3.1) support up to 240 watts
Support for the Extended Power Range or USB Power Delivery 3.1 standard means that connected devices can be supplied with power, up to 240 W (48 V / 5 A) are possible.

Technical specifications

• Connections: 2 x USB 40 Gbps USB Type-C plugs
• USB-IF certified cable
• Backwards compatible with USB 3.2, USB 2.0 and Thunderbolt 3
• Chipset: E-Marker
• Wire cross-section: 32 AWG data line, 30 AWG power line
• Cable diameter: approx. 5 mm
• Data transfer rate up to 40 Gbps
• Monitor resolution up to 7680 x 4320 @ 60 Hz (depending on system and connected hardware)
• Supports HDR10
• Supports HDCP 1.4 and 2.3
• Supports PCI Express 3.0 protocol
• Supports DisplayPort 1.4a protocol
• Supports DisplayPort Alt Mode 2.0
• Dual channel, bi-directional data transmission
• Supports Extended Power Range (EPR)
• USB Power Delivery (USB PD 3.1) support up to 240 watts (48 V / 5 A)
• Colour: black
• Length incl. connections: approx. 1 m

Package contents

• USB 40 Gbps cable

Packaging

• Resealable bag.
