Delock Serial adapter

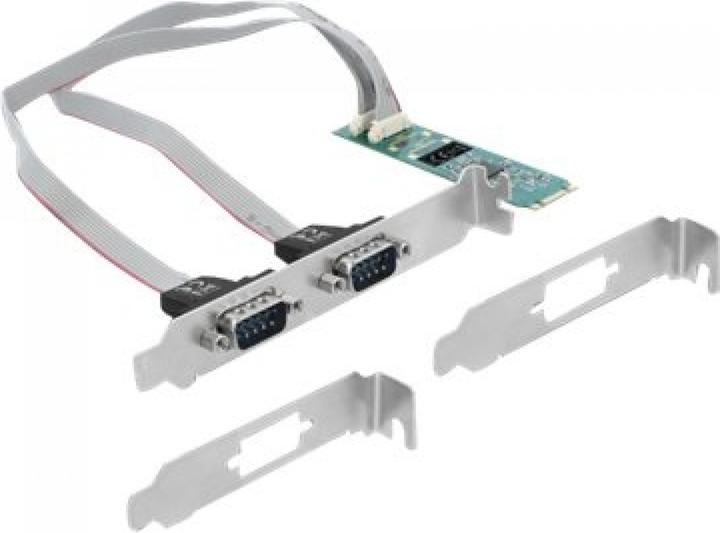

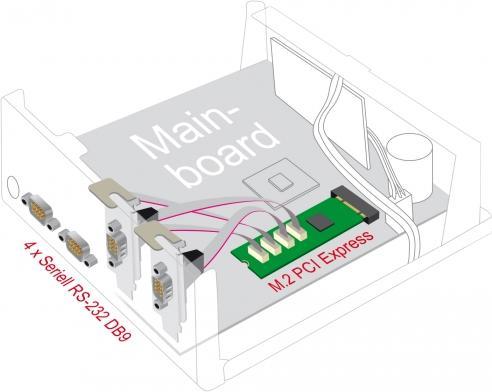

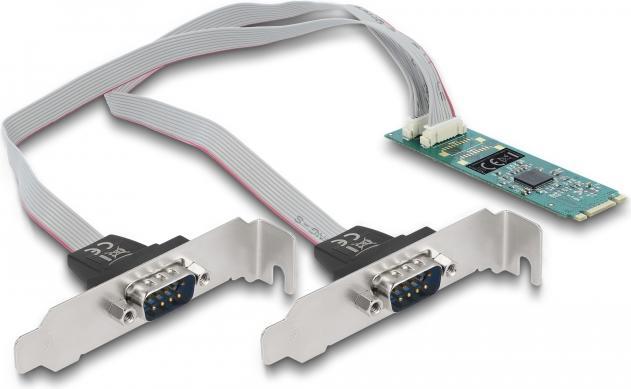

The Delock M.2 to Serial card expands the PC with two external RS-232 ports. Various devices such as scanners, protocol converters, IoT devices, etc., can be connected to the card. With the included slot brackets and RS-232 cables, the M.2 card is suitable for installation in any computer case.

Specifications:

• Connections:

1 x 59 Pin M.2 Key B+M connector
2 x Serial RS-232 DB9 connectors

• Interface: PCIe 2.1 (x1)
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Data transfer rate up to 1 Mbps
• Data bits: 5, 6, 7, 8, 9
• Flow control: none, Xon / Xoff, RTS / CTS
• Parity bit: even, odd, none, mark, space
• FIFO: 256 bytes
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Supports slow IrDA mode up to 115 Kbps
• Form factor: M.2 2280
• Dimensions (LxWxH): approx. 80 x 22 x 8 mm

System requirements:

• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2016/Windows Server 2019
• An available M.2 Key B or Key M slot

Package contents:

• M.2 card
• 1 x Mounting screw for M.2 module
• 2 x Serial connection cables (approx. 30 cm)
• 2 x Low profile brackets
• 1 x Standard bracket
• Driver CD
• User manual.
