Blackmagic ATEM 1M/E Advanced Panel

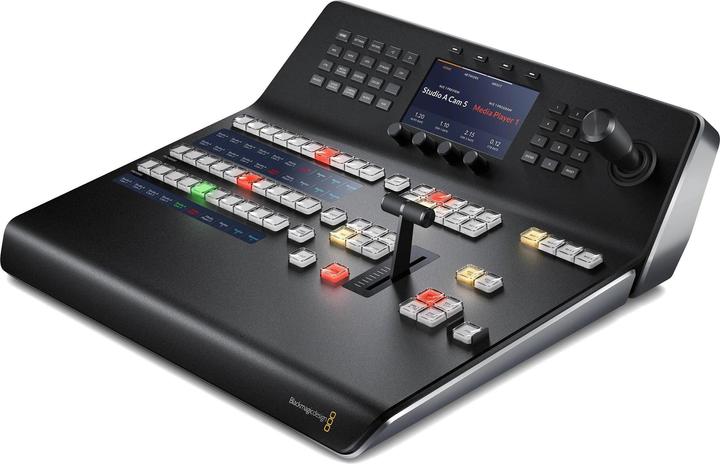

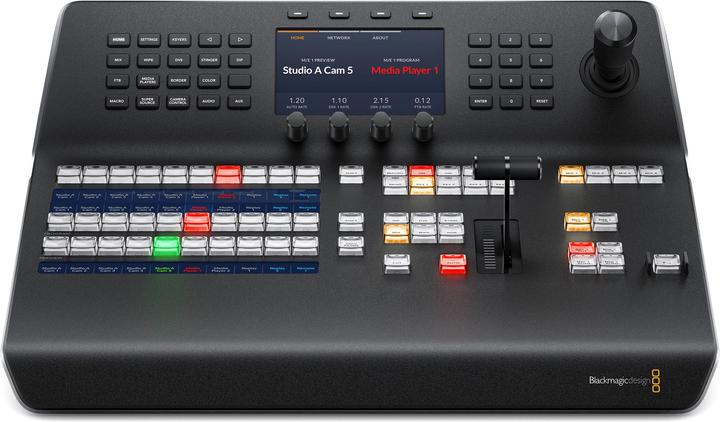

The Blackmagic Design ATEM 1 M/E Advanced Panel is a fully functional hardware control panel for BMD ATEM switchers. It connects via Ethernet and offers practical tactile control, which is essential for broadcast studios. An LCD information display, surrounded by soft-touch menu buttons and encoders, allows for intuitive programming of control functions. In addition to the main display, each programmable button features an LCD label strip to illustrate its function. Since buttons can perform different functions, up to 20 inputs can be achieved by shifting the 10 input buttons.

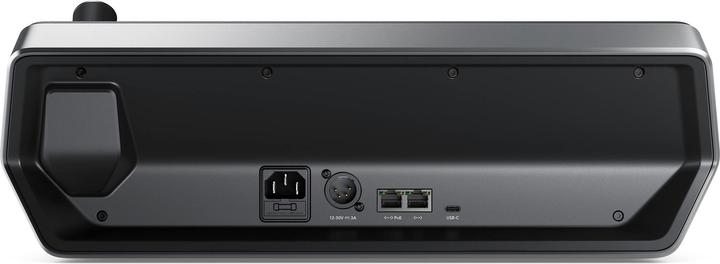

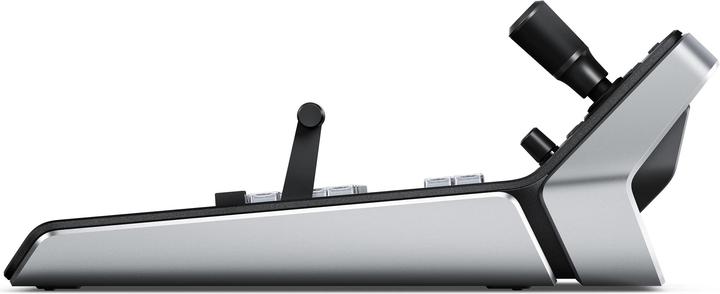

The buttons themselves have curved indentations to prevent accidental presses. Dynamic real-time controls are available in the form of a single 3-axis joystick and a large weighted T-bar fader. Use the joystick to remotely control PTZ cameras or effects, and the T-bar to adjust transitions, wipes, fades, and more. On the back of the device, there are two Ethernet ports, a USB port for firmware updates, and power inputs. Use the IEC input for connection to the mains power and the 4-pin XLR 12V input for DC power supplies. The panel's housing is small enough to fit into a standard equipment rack, making it suitable for implementation in broadcast vans and fly-away kits.
