Best Hager products in the Timers category
On this page you'll find a ranking of the best Hager products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Hager EGN103
Hager Weekly Timer EGN103
Manufacturer: Hager
Description: Weekly timer 1 switch 16A 2PLE
Type: EGN103
Mounting type: DIN rail
Number of channels: 1
Supply voltage: 230 V
Type of supply voltage: AC
Frequency of supply voltage: 50-60 Hz
Backup time in hours: 43800
Backup time in years: 5
Accuracy per day: 1.5 s
Text display: yes
External programming: yes
With memory card: no
60 min program: yes
24 h program: yes
Weekly program: yes
Annual program: no
Holiday program: no
Pulse program: no
Cycle program: no
Astro program: no
Random program: no
Operating hour counter: no
Network synchronized: no
Quartz controlled: yes
Radio controlled: no
Radio controlled (DCF77): no
GPS: no
Contact type: Switch (NO/NC)
Number of contacts: 1
Output signal: other
Shortest switching time channel 1: 1 min
Shortest switching time channel 2: 1 min
Automatic summer/winter time changeover: yes
Suitable for manual operation: yes
External button input: no
Switching preselection: no
Rated switching current at 250 V AC: 16 A
Max. switching power LED: 400 W
Potential-free switching contact: no
Protection class (IP): IP20
Width in division units: 2
Width: 35.8 mm
Height: 85 mm
Depth: 61.6 mm
Hager Weekly Timer EGN103: Additional Details
Digital weekly timer 1-channel with display for time-dependent control with changeover contact, app programming possible. Programming on the device: time and date (factory set), automatic summer/winter time changeover, temporary and permanent exception control On/Off, lockable keyboard via key combination. Bar graph display for quick recognition of daily programming. Programming without mains voltage possible via integrated backup (approx. 5 years). Note: Bluetooth programming via app when the key is inserted in the timer (key not included). Key communication protocol from version Bluetooth 4.2.
EAN: 3250618502435.

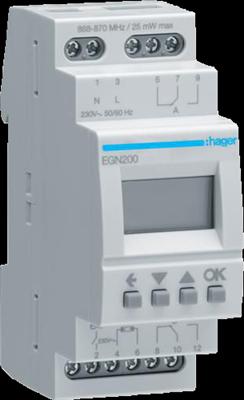

2. Hager EGN200
Digital multifunction timer with Bluetooth. It features 200 switching points and the shortest switching time is 1 minute. External programming is possible, with options for yearly, weekly, daily, and astro programs. It is suitable for DIN rail mounting. Memory card not included.
3. Hager HAGE time switch
The HAGE timer EHN010 from Hager is an electromechanical timer designed for precise control of electrical devices in a daily program. It allows for easy programming and provides a reliable solution for automating lighting and other electrical applications. With a rated voltage of 230 volts and a maximum current of 16 amps, this timer is suitable for a variety of applications in residential and commercial settings. Installation is straightforward on a DIN rail, making it easy to integrate into existing electrical systems. The HAGE timer is not compatible with smart home systems but offers user-friendly analog control for everyday applications. Its compact design and IP20 protection rating make it a practical choice for indoor use.
- Mechanical timer with daily program
- Smallest switching intervals of 5 minutes
- Easy installation on DIN rail
- Maximum current of 16 amps.

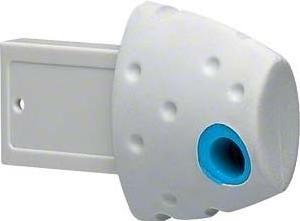

4. Hager Programming key
Hager Programming Key EG005
Manufacturer: Hager
Description: Programming key for Cromotec timer
Type: EG005
Type of accessory/replacement part: other accessories
Replacement part: yes
Hager Programming Key EG005: additional details
Programming key for timers.
EAN: 3250612270057.
5. Hager Timer EGN400 Digital
Digital multifunction timer with Bluetooth, 4-channel. This digital multifunction timer features a backlit display, integrated Bluetooth functionality, and app programming for time, brightness, and location-dependent control. It can be used as a daily, weekly, yearly, or astro clock and also offers an integrated twilight switch function.
There is an exception control through a wired external switch or KNX radio switch. Programming can be done on the device or via the app: the time and date are factory set, and the automatic summer-winter time change, as well as holiday and school vacation times, can be selected based on location. Access can be locked via the app or a key combination, and both temporary and permanent exception controls are possible.
Programs can be created in the app, taken from already used templates, or exceptions can be activated. An optional portal can be used for sharing and external storage of the program. A bar display allows for quick recognition of the program. The contact load is reduced by a zero-crossing switching function.
Programming is possible without mains voltage thanks to an integrated backup power supply of approximately 10 years. Note: The communication protocol is from version Bluetooth 4.2 and KNX radio RF quicklink. The twilight switch function via brightness built-in or surface-mounted sensors is not included. EGN400.

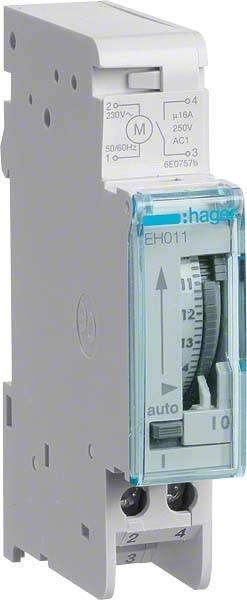

6. Hager HAG EH011 1S 230V 16A analogue time switch 1PLE with power reserve
The HAG EH011 1S 230V 16A analog timer switch from Hager is a reliable digital timer suitable for a variety of applications. It allows for precise control of electrical devices and systems by offering programmable switching times. With a nominal voltage of 230 volts and a maximum current of 16 amperes, this timer is ideal for use in residential and commercial spaces. The settings are easily adjusted via tabs, ensuring user-friendly operation. The shortest switching time is 15 minutes, allowing for flexible adaptation to different requirements. It is mounted on a DIN rail, which simplifies installation and saves space. The HAG EH011 is not compatible with smart home systems but provides a reliable solution for timed control of electrical devices.
- 1-channel quartz mechanism for precise time control
- Adjustable switching intervals starting from 15 minutes
- DIN rail mounting for easy installation
- Protection class IP20 for indoor use.

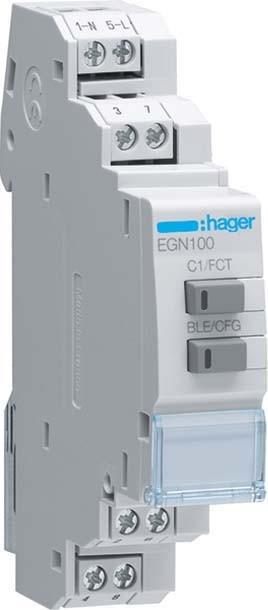

7. Hager EGN100
Digital multifunction timer switch with Bluetooth, 1-channel. This digital multifunction timer switch without a display features an integrated Bluetooth function and app programming for time, brightness, and location-dependent control. It can be used as a daily, weekly, yearly, and astronomical clock, and also offers an integrated twilight switch function. Exceptions can be controlled via a wired external switch, button, or KNX radio switch-button.
Programming is done through the app, which allows for activation, deactivation, and resetting of Bluetooth on the device. The time and date are factory-set, and the automatic summer-winter time change, as well as holiday and school vacation times, can be selected based on location. Access can be restricted via the app or a key combination, and there are options for temporary and permanent exception controls.
Programs can be created in the app, can be based on already used templates, or exceptions can be activated. An optional portal can be used for sharing and external storage of the program. The contact load is reduced by a zero-crossing circuit. Programming without mains power is possible via the integrated backup power of approximately 10 years.
Notes: Communication protocol from version Bluetooth 4.2 and KNX radio RF quicklink. EGN100.

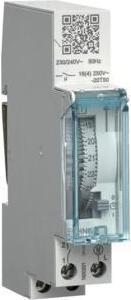

8. Hager EH110
The Hager EH110 is a mechanical timer designed for indoor use. It allows for precise control of electrical devices through a daily program. With a rated voltage of 230 volts and a maximum current of 16 amps, the EH110 is suitable for a variety of applications. The timer is easy to use, as settings can be adjusted via tabs. It offers a minimum switching time of 15 minutes, allowing for flexible adjustment of switching intervals. Installation is straightforward on a DIN rail, making it easy to integrate into various electrical systems. With a compact design and an IP20 protection rating, the EH110 is both functional and safe.
- Mechanical timer with daily program
- Adjustable switching intervals starting from 15 minutes
- Easy installation on DIN rail
- IP20 protection rating for indoor use.
9. Hager EC 103
The Hager EG 103 is a digital timer designed for time-dependent control of electrical devices. It offers user-friendly programming and allows for easy implementation of exception programs via a programming key. The timer is suitable for mounting on a DIN rail and is ideal for indoor use. With a switching capacity of up to 16 Amperes and the ability to store up to 10 programs, the EG 103 is a versatile solution for automating electrical devices. The bar display enables quick recognition of daily programming, while the automatic adjustment for summer and winter time provides added convenience. The Hager EG 103 is a reliable choice for anyone seeking precise and flexible control of their electrical devices.
- Programming key for easy exception programming
- Temporary and permanent exception control directly on the device
- Bar display for quick recognition of daily programming
- Automatic adjustment between summer and winter time
- Child safety lock for added security.

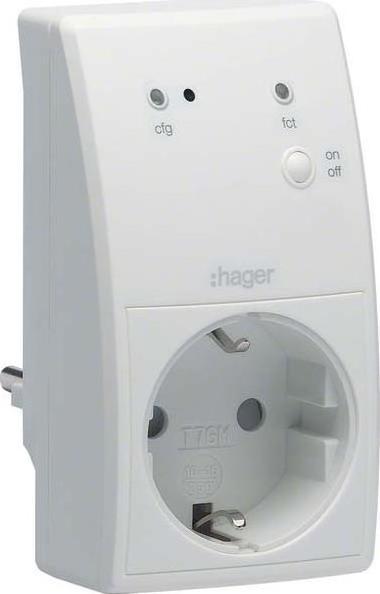

10. Hager Radio
Hager radio adapter plug actuator TRC270D
Manufacturer: Hager
Designation: Radio adapter plug actuator 16A, quicklink
Type: TRC270D
Bus system KNX: No
Bus system KNX radio: Yes
Bus system radio bus: Yes
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: Yes
Mounting type: Other
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 3680 W
Output power: 3680 W
Suitable for C-load: Yes
Max. number of switching outputs: 1
Number of switching outputs: 1
Max. switching current: 16 A
Rated current: 16 A
Rated operating voltage: 195-253 V
Different phases connectable: No
With bus coupling: No
Bus module removable: No
Min. depth of device box: 40 mm
Modular expansion option: No
Protection class (IP): IP30
Further details: Radio adapter plug actuator 16A, quicklink. Flush-mounted output device as an intermediate plug for switching loads in conjunction with quicklink radio products. Tool-free quicklink configuration via buttons with LED display or integration via KNX radio media coupler into the KNX-TP system. The device converts the switching information into bidirectional commands. Functions include manual override, on/off, switching, scenes, timer, and pushbutton normally open. EAN: 3250615989376.
