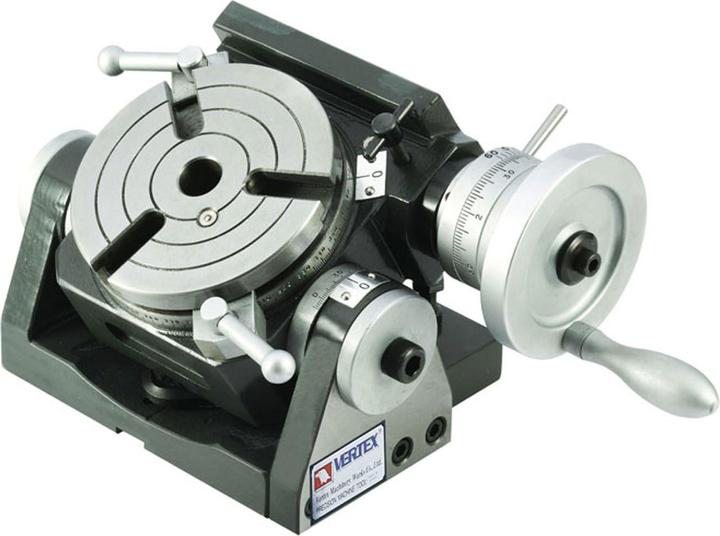

1. Vertex Rundtisch Ø 110 mm schwenkbar VU-100
Precision dividing head, horizontally/vertically swivelable, 110 mm from Vertex, model VU-100. A dividing head is used to machine a workpiece at specific angular positions. With the help of a dividing head, processes such as drilling patterns or gear cutting can be performed.
- Adjustable screw, hardened and ground
- Gear ratio of worm drive 90:1
- Quick clamping device
- Usable horizontally and vertically
- Scale 360°
- Through spindle bore MK2
- Flatness of the clamping surface: 0.02 mm
- Parallelism of the clamping surface to the base body: 0.02 mm
- Runout accuracy of the clamping surface: 0.02 mm
Included in the delivery are an Allen key and four low clamping blocks for M10. Please refer to the illustration for exact dimensions. A suitable tailstock and dividing plates can also be found in our shop.
Number of slots: 3
Through spindle bore: MK2
Net weight: 13.5 kg.

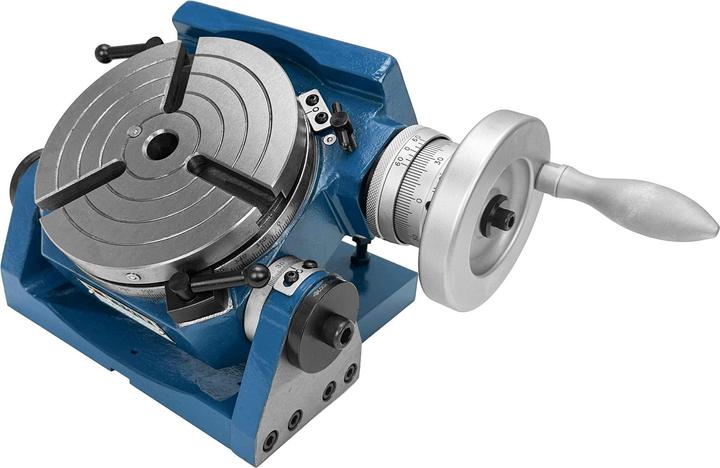

2. Vertex Rundtisch Ø 150 mm schwenkbar VU-150
Precision dividing head, horizontally/vertically adjustable, 150 mm from Vertex, model VU-150. A dividing head is used to machine a workpiece at specific angular positions. With the help of a dividing head, processes such as drilling patterns or gear cutting can be performed.
- Adjustable screw, hardened and ground
- Gear ratio of worm drive 90:1
- Quick clamping device
- Usable horizontally and vertically
- Scale 360°
- Through spindle bore MK2
- Flatness of the clamping surface: 0.02 mm
- Parallelism of the clamping surface to the base body: 0.02 mm
- Runout accuracy of the clamping surface: 0.02 mm
Included in the delivery are an Allen key and four low clamping blocks for M10. Please refer to the illustration for exact dimensions. A matching tailstock and dividing plates can also be found in our shop.
Number of slots: 3
Through spindle bore: MK2
Net weight: 21.5 kg.
3. Vertex Rundtisch Ø 150 mm HV-6
Precision dividing head horizontal/vertical, 150 mm by Vertex, model HV-6. A dividing head is used to machine a workpiece at specific angular positions. With the help of a dividing head, operations such as drilling patterns or gear cutting can be performed.
- Adjustable worm, hardened and ground
- Worm gear ratio 90:1
- Quick clamping device
- Usable horizontally and vertically
- Scale 360°
- Through spindle bore MK2
- Flatness of the clamping surface: 0.02 mm
- Parallelism of the clamping surface to the base body: 0.02 mm
- Runout accuracy of the clamping surface: 0.02 mm
Please refer to the illustration for exact dimensions. A suitable tailstock and dividing plates can also be found in our shop.
Horizontal load capacity: 40 kg
Vertical load capacity: 20 kg
Through spindle bore: MK2
Net weight: 12.1 kg.
4. Vertex Rundtisch Ø 110 mm HV-4
Precision dividing head horizontal/vertical, 110 mm from Vertex, model HV-4. A dividing head is used to machine a workpiece at specific angular positions. With the help of a dividing head, processes such as drilling patterns or gear cutting can be performed.
- Adjustable screw, hardened and ground
- Gear ratio of worm drive 90:1
- Quick clamping device
- Usable horizontally and vertically
- Scale 360°
- Through spindle bore MK2
- Flatness of the clamping surface: 0.02 mm
- Parallelism of the clamping surface to the base body: 0.02 mm
- Runout accuracy of the clamping surface: 0.02 mm
Please refer to the illustration for exact dimensions. A suitable tailstock and dividing plates can also be found in our shop.
Horizontal load capacity: 35 kg
Vertical load capacity: 18 kg
Through spindle bore: MK2
Net weight: 7 kg.

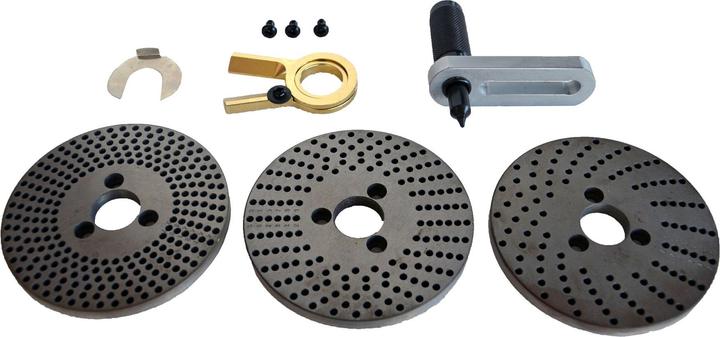

5. Vertex Teilscheiben-Set für VERTEX-Teilapparate
6. Vertex Reitstock höhenverstellbar von
This tailstock is suitable for dividing heads with a center height between 75 and 105 mm in vertical position, thanks to its height-adjustable tip. To achieve a horizontal alignment of the workpiece, it is clamped between the dividing head and the tailstock. A clamping screw secures the tailstock tip at the set height, and the horizontal position of the tip can also be fixed by clamping. The lateral adjustment of the centering tip is facilitated by a knurled rotary knob. The horizontal travel of the tip is 27.5 mm.
