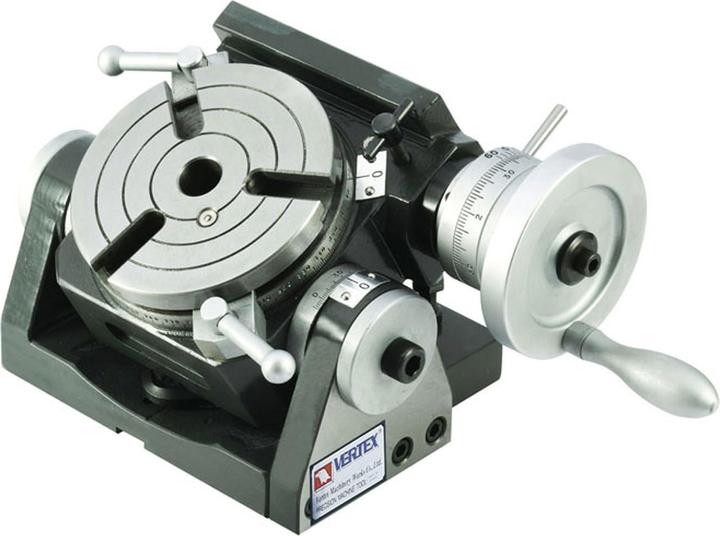

Vertex Rundtisch Ø 110 mm schwenkbar VU-100

Precision dividing head, horizontally/vertically adjustable, 110 mm by Vertex, model VU-100. A dividing head is used to machine a workpiece at specific angular positions. With the help of a dividing head, operations such as drilling patterns or gear cutting can be performed.

• Adjustable screw, hardened and ground
• Gear ratio of worm drive 90:1
• Quick clamping device
• Usable horizontally and vertically
• Scale 360°
• Through spindle bore MK2
• Flatness of the clamping surface: 0.02 mm
• Parallelism of the clamping surface to the base body: 0.02 mm
• Runout accuracy of the clamping surface: 0.02 mm

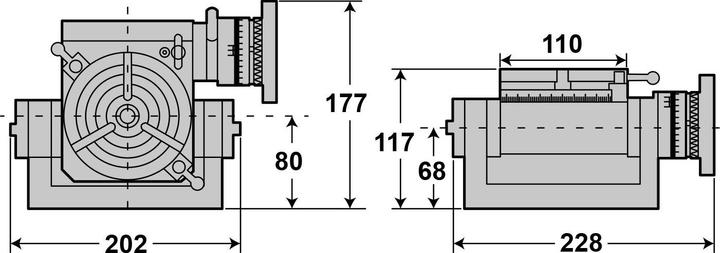

Included in the delivery are an Allen key and four low clamping blocks for M10. Please refer to the illustration for exact dimensions. A suitable tailstock and dividing plates can also be found in our shop.

Number of slots: 3
Through spindle bore: MK2
Net weight: 13.5 kg.
