Vertex Rundtisch Ø 110 mm HV-4

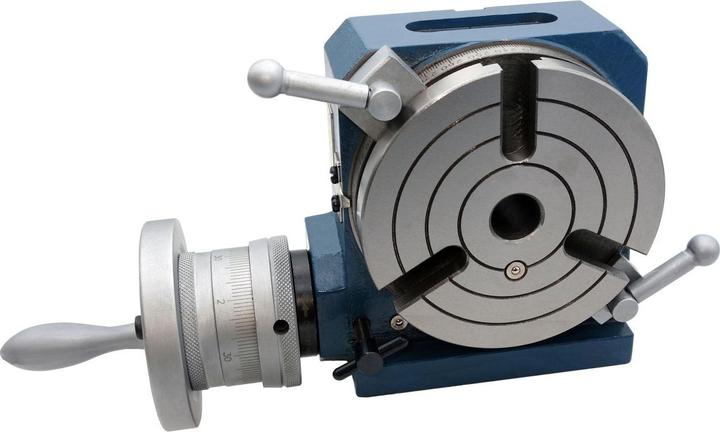

Precision dividing head horizontal/vertical, 110 mm from the company Vertex, model HV-4. A dividing head is used to machine a workpiece at specific angular positions. With the help of a dividing head, operations such as drilling patterns or gear cutting can be performed.

• Adjustable screw, hardened and ground
• Gear ratio of the worm drive 90:1
• Quick clamping mechanism
• Usable horizontally and vertically
• Scale 360°
• Through spindle bore MK2
• Flatness of the clamping surface: 0.02 mm
• Parallelism of the clamping surface to the base body: 0.02 mm
• Runout accuracy of the clamping surface: 0.02 mm

Please refer to the illustration for exact dimensions. A suitable tailstock and dividing plates can also be found in our shop.

Horizontal load capacity: 35 kg
Vertical load capacity: 18 kg
Through spindle bore: MK2
Net weight: 7 kg.
