Best Danfoss products in the Floor heating category
On this page you'll find a ranking of the best Danfoss products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Danfoss Outdoor heating cable 20W/m 400V 170m sw 83902121
The Danfoss Freifläche heating cable is a powerful solution for heating outdoor areas. With a heating output of 20 W/m and a total length of 170 m, this product is ideal for installation in areas that require a reliable heat source. The heating cable is made from high-quality materials and has a rated voltage of 400 V, ensuring efficient and even heat distribution. Installation is straightforward, as the heating cable comes pre-assembled and ready to connect. Additionally, the product is UV-resistant and has an IPX7 protection rating, which protects it from water and moisture. The heating cable is certified according to IEC 60800 and offers high resistance tolerance, enhancing its durability and reliability under various conditions.
- Ready-to-install heating cable, pre-assembled for connection
- UV-resistant and suitable for outdoor use
- High resistance tolerance of +10% / -5%
- Minimum installation temperature of 5°C for flexible installations
- IPX7 protection rating for optimal protection against water and moisture.

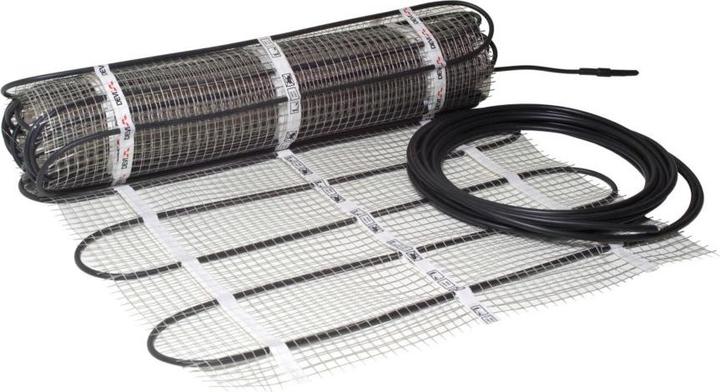

2. Danfoss Heating mat 150W/sqm 575W 3.9sqm 1Cold 83901927
Danfoss Heating Mat DTCE-150 575W
Manufacturer: Danfoss
Designation: Heating Mat 230V
Type: DTCE-150 575W
With Carrier Mat: Yes
Fixation of Heating Cable: Glued
Self-Adhesive: No
Connection Power: 575 W
Power: 150 W/m²
Heating Cable Load: 11 W/m
Number of Cold Leads: 1
Length of Cold Leads: 6000 mm
Suitable for Wet Rooms: Yes
Suitable as Outdoor Heating: No
Suitable as Roof Heating: No
Area: 3.9 m²
Length: 5200 mm
Width: 750 mm
Thickness: 7 mm
With Controller: No
With Room Thermostat: No
With Floor Temperature Sensor: No
Danfoss Heating Mat DTCE-150 575W: Additional Details
Heating mat with a connection cable suitable for installation in or under the screed. Designed for use in dry, damp, or wet rooms. Features additional protective sheathing for the use of RCD protection. This heating mat system is particularly suitable for installation in angled and/or large areas, as the return of the second connection is not required. Includes factory-installed waterproof connectors and a 6 m long cold lead, heating cable according to IEC 60800, voltage: 230 V, nominal limit temperature: 80°C, specific heating power: 150 W/m², resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, outer diameter: 7 mm, minimum bending radius: 5 x dA, protection class: IP X7, area 3.9 m², 0.75 x 5.2 m.
3. Danfoss Heating mat 200W/sqm 430W 2.1sqm 1cold 83020738
Danfoss Thin Bed Heating Mat DEVImat 200 0.5x4.2
Manufacturer: Danfoss
Description: Self-adhesive thin bed heating mat
Type: DEVImat 200 0.5x4.2
Design: Heating foil
With carrier mat: yes
Fixation of heating conductor: Glued
Self-adhesive: yes
Connection power: 430 W
Power: 200 W/m²
Heating conductor load: 15 W/m
Number of cold conductors: 1
Length of cold conductor: 4 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 2.1 m²
Length: 4200 mm
Width: 500 mm
Thickness: 3 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no
Danfoss Thin Bed Heating Mat DEVImat 200 0.5x4.2: additional details
The self-adhesive thin bed heating mat with a connection cable is pre-assembled and designed specifically for installation in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large spaces, as the return of the second connection is not required. The heating cable, with additional protective sheath for the use of RCD protection, is applied to a plastic mesh. The length of the connection cables is 4.0 m. Cold conductor: 1 x 4 m, 1.0 mm², Voltage: 230 V, Rated limit temperature: 120 °C, Specific heating output: 200 W/m², Insulation: PVDF / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Calculation width: 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval: EN 60335-2-96, 0.5 x 4.2 m, EAN: 5703466196014.
4. Danfoss Heating mat 175W/sqm 2750W 15,6sqm 1Cold 83901963
Danfoss Heating Mat DTCE-175 2750W
Manufacturer: Danfoss
Designation: Heating Mat 230V
Type: DTCE-175 2750W
With Carrier Mat: yes
Heating Cable Fixation: glued
Self-adhesive: no
Connection Power: 2750 W
Power: 175 W/m²
Heating Cable Load: 13.1 W/m
Number of Cold Leads: 1
Length of Cold Leads: 6000 mm
Suitable for Wet Rooms: yes
Suitable as Outdoor Heating: no
Suitable as Roof Heating: no
Area: 15.6 m²
Length: 20850 mm
Width: 750 mm
Thickness: 7 mm
With Controller: no
With Room Thermostat: no
With Floor Temperature Sensor: no
Danfoss Heating Mat DTCE-175 2750W: Additional Details
Heating mat with a connection cable suitable for installation in or under the screed. Suitable for use in dry, damp, or wet rooms. Features additional protective sheathing for use with RCD protection. This heating mat system is particularly suitable for installation in awkward and/or large areas, as the return of the second connection is not required. Includes factory-installed waterproof connectors and a 6 m long cold lead, heating cable according to IEC 60800, voltage: 230 V, rated limit temperature: 80°C, specific heating power: 175 W/m², resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, outer diameter: 7 mm, minimum bending radius: 5 x dA, protection class: IP X7, area 15.6 m², 0.75 x 20.85 m.
5. Danfoss Heating cable
The Danfoss heating cable is a powerful and reliable solution for outdoor heating. With a heating output of 20 W/m and a total length of 135 m, it provides an effective way to protect outdoor areas such as walkways, driveways, and patios from snow and ice. This heating cable comes ready for installation and features a UV-resistant, two-wire construction that ensures high durability. The heating cable is certified according to IEC 60800 and offers a rated voltage of 400 V, making it suitable for various applications. With an IPX7 protection class, it is also protected against water ingress, expanding its usability in different weather conditions. The heating cable is easy to install and provides efficient heat distribution to enhance safety and comfort in outdoor areas.
- Ready-to-install heating cable with a length of 135 m and a total output of 2628 W
- UV-resistant construction for increased durability
- Two-wire heating cable with shielding for improved safety
- IPX7 protection class for optimal water protection
- Suitable for outdoor heating applications.
6. Danfoss Heating mat 200W/sqm 505-605W 3.1sqm 1cold 83020740
Danfoss Thin Bed Heating Mat DEVImat 200 0.5x6.2
Manufacturer: Danfoss
Description: Self-adhesive thin bed heating mat
Type: DEVImat 200 0.5x6.2
Design: Heating foil
With carrier mat: yes
Fixation of heating conductor: Glued
Self-adhesive: yes
Connection power: 605 W
Power: 200 W/m²
Heating conductor load: 15 W/m
Number of cold leads: 1
Length of cold leads: 4 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 3.1 m²
Length: 6200 mm
Width: 500 mm
Thickness: 3 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no
Danfoss Thin Bed Heating Mat DEVImat 200 0.5x6.2: additional details
The self-adhesive thin bed heating mat with a connection lead is pre-assembled and designed specifically for installation in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large spaces, as the return of the second connection is unnecessary. The heating cable, with additional protective sheath for the use of RCD protection, is applied to a plastic mesh. The length of the connection leads is 4.0 m. Cold lead: 1 x 4 m, 1.0 mm², Voltage: 230 V, Rated limit temperature: 120 °C, Specific heating power: 200 W/m², Insulation: PVDF / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Calculation width: 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval: EN 60335-2-96, 0.5 x 6.2 m, EAN: 5703466196038.
7. Danfoss Heating mat
Devi Heating Mat for Asphalt Installation DEVIasphalt 300 4150
Manufacturer: Devi
Description: Heating mat for asphalt installation 14.8 sqm, 4150 W
Type: DEVIasphalt 300 4150
With carrier mat: yes
Fixation of heating conductor: glued
Self-adhesive: no
Connection power: 4150 W
Power: 300 W/m²
Heating conductor load: 30 W/m
Number of cold leads: 1
Length of cold leads: 30000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: yes
Suitable as roof heating: no
Area: 14.8 m²
Length: 14800 mm
Width: 1000 mm
Thickness: 8 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no
Additional details:
Ready-to-install heating mat with a connection cable, suitable for embedding in asphalt surfaces. The heating cable meets the requirements of IEC 60800 and EN 62395. Includes additional protective sheathing for use with RCD protection. Comes with a factory-installed waterproof connector and a 30 m long cold lead. Voltage: 400 V, nominal limit temperature: 90 °C, installation temperature: short-term 240 °C, deformation resistance 2000 N, tensile strength: 120 N, heating conductor insulation: FEP, cold lead: 1 x 30 m 2.5 mm², specific heating output: 300 W/m², resistance tolerance: +10% / -5%, minimum installation temperature: 5 °C, minimum bending radius: 5 x dA, protection class: IP X7, area: 14.8 m², 1.00 x 14.80 m, 4250 W, EAN: 5703466229200.

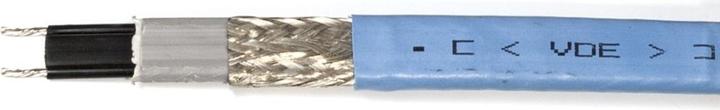

8. Danfoss Heating tape
Devi heating tape 10W/m, sold by the metre. Manufacturer: Devi. Designation: Heating tape 10W/m, sold by the metre. Type: pipeguard10#98301071. Cable type: self-limiting parallel. Max. holding temperature: 65 °C. Heating capacity: 10 W/m. Shielding: braiding. Rated voltage: 230 V. Height: 5.8 mm. Width: 13.6 mm. Length: 1 m. Colour: blue. Application: pipeguard.
Devi heating tape 10W/m, sold by the metre pipeguard10#98301071 is a halogen-free, self-limiting heating tape for frost protection of pipelines. It consists of two parallel tinned copper strands and a plastic heating element in between, with protective insulation made of polyolefin, a protective braid made of tinned copper strands, and an outer protective jacket made of polyolefin. Max. permissible ambient temperature: switched on 65 °C / switched off: 85 °C, rated voltage: 240 V, rated power: 10 W/m at +10 °C, dimensions: 13.6 x 5.8 mm.
9. Danfoss Heating mat 200W/sqm 285W 1.45sqm 1cold 83020737
Danfoss Thin Bed Heating Mat DEVImat 200 0.5x2.9
Manufacturer: Danfoss
Description: Self-adhesive thin bed heating mat
Type: DEVImat 200 0.5x2.9
Design: Heating foil
With carrier mat: yes
Fixation of heating conductor: Adhesive
Self-adhesive: yes
Connection power: 285 W
Power: 200 W/m²
Heating conductor load: 15 W/m
Number of cold leads: 1
Length of cold leads: 4 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 1.45 m²
Length: 2900 mm
Width: 500 mm
Thickness: 3 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no
Danfoss Thin Bed Heating Mat DEVImat 200 0.5x2.9: additional details
The self-adhesive thin bed heating mat with a connection cable is pre-assembled for easy installation and has been specifically designed for installation in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large rooms, as the return of the second connection is not required. The heating cable, with additional protective sheath for the use of RCD protection, is mounted on a plastic mesh. The length of the connection cables is 4.0 m. Cold lead: 1 x 4 m, 1.0 mm², Voltage: 230 V, Rated limit temperature: 120°C, Specific heating output: 200 W/m², Insulation: PVDF / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5°C, Minimum bending radius: 6 x dA, Calculation width: 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval: EN 60335-2-96, 0.5 x 2.9 m.
10. Danfoss Outdoor heating 300W/q 3565W 12qm 140F0632
Devi Heating Mat for Concrete DEVIsnow 300#0632
Manufacturer: Devi
Description: Heating mat for concrete 400V 12.0 m², 3565 W
Type: DEVIsnow 300#0632
With carrier mat: yes
Fixation of heating conductor: glued
Self-adhesive: no
Connection power: 3565 W
Power: 300 W/m²
Heating conductor load: 30 W/m
Number of cold leads: 1
Length of cold lead: 30000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: yes
Suitable as roof heating: no
Area: 12 m²
Length: 12000 mm
Width: 1000 mm
Thickness: 7.5 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no
The Devi Heating Mat for Concrete DEVIsnow 300#0632 is a ready-to-install heating mat with a connection cable, suitable for installation in reinforced concrete, screed, or sand beds. It features an additional protective sheath for use with RCD protection circuits. This heating mat system is particularly suitable for installation in angled and/or large areas, as the return of the second connection is not required. It includes factory-mounted waterproof connectors as well as a 0 m long cold lead that can be installed according to the installation instructions.
The heating cable complies with IEC 60800, has a voltage of 400 V, and a nominal limit temperature of 80 °C. The specific heating output is 300 W/m², and the resistance tolerance is +10% / -5%. The minimum installation temperature is 5 °C, the smallest bending radius is 5 x dA, and the protection class is IP X7. The area is 12.0 m² and the power is 3675 W. EAN: 5703466229361.
