Danfoss Heating mat 150W/sqm 575W 3.9sqm 1Cold 83901927

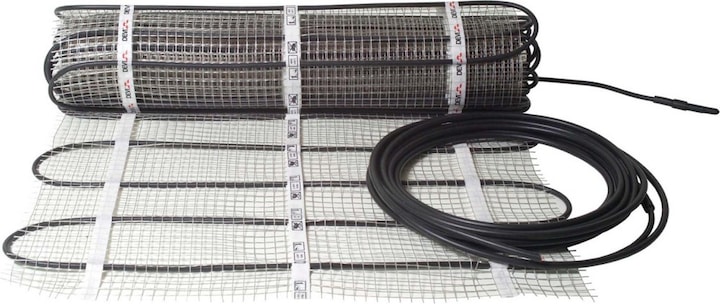

Danfoss Heating Mat DTCE-150 575W

Manufacturer: Danfoss
Designation: Heating Mat 230V
Type: DTCE-150 575W
With Carrier Mat: Yes
Fixation of Heating Cable: Glued
Self-Adhesive: No
Connection Power: 575 W
Power: 150 W/m²
Heating Cable Load: 11 W/m
Number of Cold Leads: 1
Length of Cold Leads: 6000 mm
Suitable for Wet Rooms: Yes
Suitable as Outdoor Heating: No
Suitable as Roof Heating: No
Area: 3.9 m²
Length: 5200 mm
Width: 750 mm
Thickness: 7 mm
With Controller: No
With Room Thermostat: No
With Floor Temperature Sensor: No

Danfoss Heating Mat DTCE-150 575W: Additional Details
Heating mat with a connection cable suitable for installation in or under the screed. Designed for use in dry, damp, or wet rooms. Features additional protective sheathing for the use of RCD protection. This heating mat system is particularly suitable for installation in angled and/or large areas, as the return of the second connection is not required. Includes factory-installed waterproof connectors and a 6 m long cold lead, heating cable according to IEC 60800, voltage: 230 V, nominal limit temperature: 80°C, specific heating power: 150 W/m², resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, outer diameter: 7 mm, minimum bending radius: 5 x dA, protection class: IP X7, area 3.9 m², 0.75 x 5.2 m.
